Your shopping cart is currently empty.
250 Sport XS - Serial 1E002342 Thru 1E051823 - Coil Plate

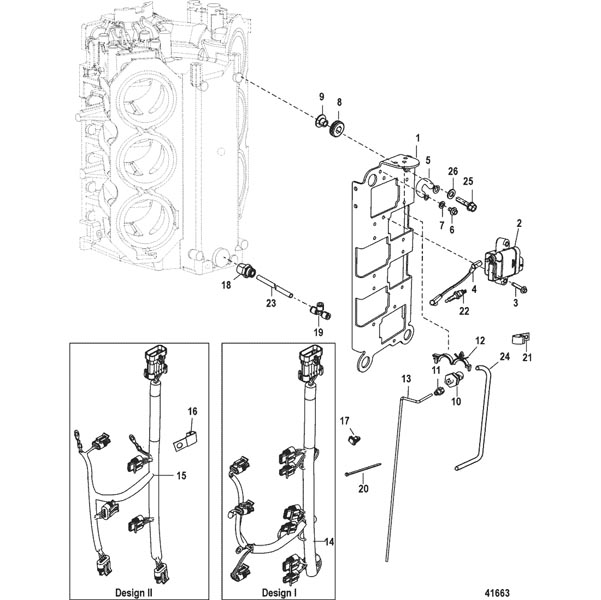

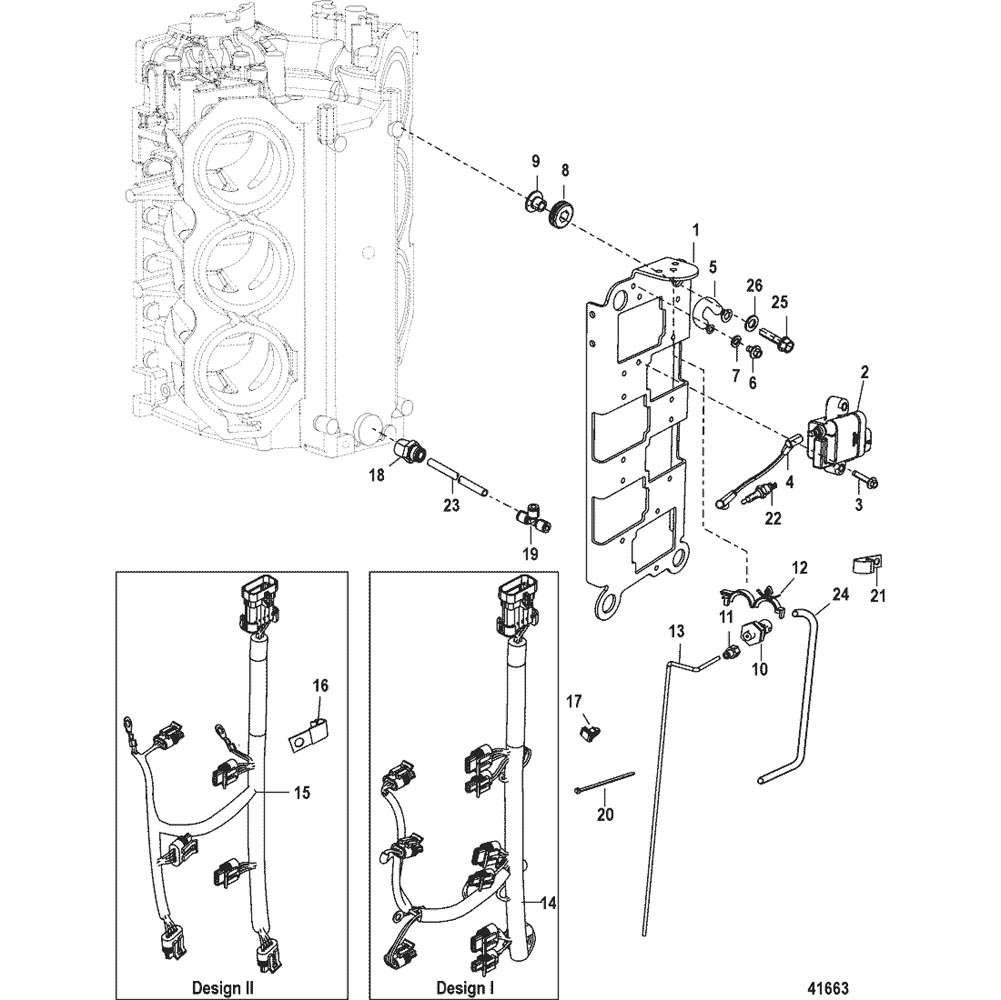

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and up
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing(Drive-Standard/Counter Torque/FleetMaster)
- Gear Housing, Propeller Shaft - TorqueMaster
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Swivel Bracket(Heavy Duty)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 884272T | PLATE, Coil Mounting | 1 | ||||||
| 2 | 339-8M0077471 | COIL KIT | 6 | 879984A1 | |||||
| 3 | 10-82129130 | SCREW, (M6 x 30) | 12 | ||||||
| 4 | 84-881908T | CABLE SET | 1 | ||||||
| 5 | 84-858414A1 | CABLE ASSEMBLY, Braided | 2 | ||||||
| 6 | 10-82129110 | SCREW, (M6 x 10) | 4 | ||||||
| 7 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 4 | ||||||
| 8 | 25-833155 | GROMMET | 4 | ||||||
| 9 | 23-8502341 | BUSHING | 4 | ||||||
| 10 | 881879T26 | SENSOR ASSEMBLY, Pressure | 1 | 881879A20 | |||||
| 11 | 22-892403 | FITTING | 1 | ||||||
| 12 | 54-883066 | CLIP, (.865) | 1 | ||||||
| 13 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 18 Inches) | 1 | ||||||
| 14 | 84-892972T04 | HARNESS ASSEMBLY, Coil | 1 | No Longer Available | |||||
| 15 | 84-892972T05 | HARNESS ASSEMBLY, Coil | 1 | ||||||
| 16 | 54-54457 | J CLIP | 5 | ||||||
| 17 | 54-879962 | CLIP | 1 | ||||||
| 18 | 22-881866 | FITTING | 1 | ||||||
| 19 | 22-875207 | TEE, Fitting | 1 | ||||||
| 20 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 21 | 54-65292 | J CLIP | 1 | ||||||
| 22 | 33-843220Q | SPARK PLUG | 6 | 843220001 | |||||
| 23 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 5 Inches) | 1 | ||||||
| 24 | 32-85944975 | TUBING, (72.00 Inches Bulk) (Cut to 52 Inches) | 1 | ||||||
| 25 | 10-81893435 | SCREW, (M8 x 35) | 4 | ||||||
| 26 | 12-4002318 | WASHER | 4 |
