250 Sport XS - Serial 1E002342 Thru 1E051823 - Trim Pump and Mounting Brackets

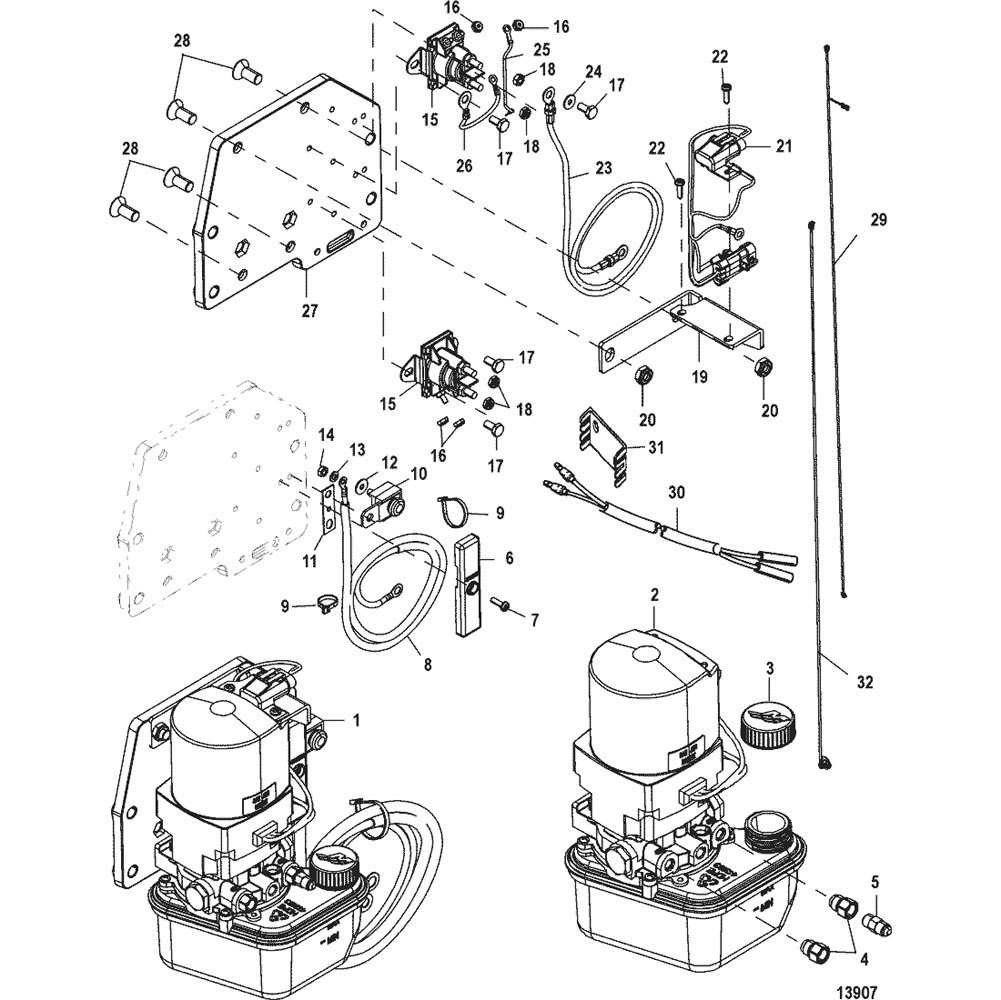

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and up
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing(Drive-Standard/Counter Torque/FleetMaster)
- Gear Housing, Propeller Shaft - TorqueMaster
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Swivel Bracket(Heavy Duty)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 843017A03 | PUMP ASSEMBLY, Trim - Complete | 1 | 843017T03 | |||||
| 2 | 843017T01 | PUMP ASSEMBLY, Trim | 1 | ||||||
| 3 | 36-865448A01 | CAP, Oil Reservoir | 1 | ||||||
| 4 | 22-808727 | CONNECTOR, (.50-20 UNF To .4375-24 Inverted Flare) | 2 | ||||||
| 5 | 22-818200 | FITTING | 1 | ||||||
| 6 | 85-861680 | INSULATOR | 1 | ||||||
| 7 | 10-48409 | SCREW, (#10-16 x .625) Stainless Steel | 1 | ||||||
| 8 | 84-79139A12 | CABLE ASSEMBLY, Red-Positive | 1 | ||||||
| 9 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 10 | 88-79023T10 | FUSE ASSEMBLY, 110 Ampere | 1 | 79023A10 | |||||
| 11 | 94275 | LINK | 1 | ||||||
| 12 | 12-25908 | WASHER, (.265 x .812 x .0625) | 1 | ||||||
| 13 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 1 | ||||||
| 14 | 11-21825 | NUT, (.250-28) | 1 | 11-22433 | |||||
| 15 | 89-96158T | SOLENOID | 2 | ||||||
| 16 | 11-826709104 | NUT, (#8-32) Stainless Steel | 4 | ||||||
| 17 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 4 | ||||||
| 18 | 11-826709108 | NUT, (.250-20) Stainless Steel | 4 | ||||||
| 19 | 846866 | BRACE | 1 | ||||||
| 20 | 11-826709112 | NUT, (.375-16) Stainless Steel | 2 | ||||||
| 21 | 84-79147A09 | HARNESS ASSEMBLY | 1 | ||||||
| 22 | 10-57807 | SCREW, (#10-16 x .750) Stainless Steel | 2 | ||||||
| 23 | 84-79138A9 | CABLE ASSEMBLY, (6.00 Feet) Black-Negative | 1 | ||||||
| 24 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 1 | ||||||
| 25 | 84-86322A15 | CABLE ASSEMBLY, (5.50 Inches) Black | 1 | ||||||
| 26 | 84-86322A24 | CABLE ASSEMBLY, (4.00 Inches) | 1 | ||||||
| 27 | 841226001 | BRACKET | 1 | ||||||
| 28 | 10-844417 | SCREW, (.375-16 x .875) Stainless Steel | 4 | ||||||
| 29 | 84-848017T06 | HARNESS ASSEMBLY, Trim | 1 | ||||||
| 30 | 84-65017A14 | HARNESS ASSEMBLY | 1 | ||||||
| 31 | 79146 | RETAINER | 2 | ||||||
| 32 | 87-842031T02 | SWITCH KIT, Tilt | 1 | ||||||
| - | 842109A01 | MOUNT KIT, Floor | 1 | ||||||
| - | 87762A04 | BRACKET ASSEMBLY, Trim Pump Mounting | 1 |
