250 Sport XS - Serial 1E002342 Thru 1E051823 - Gear Housing(Drive-Standard/Counter Torque/FleetMaster)

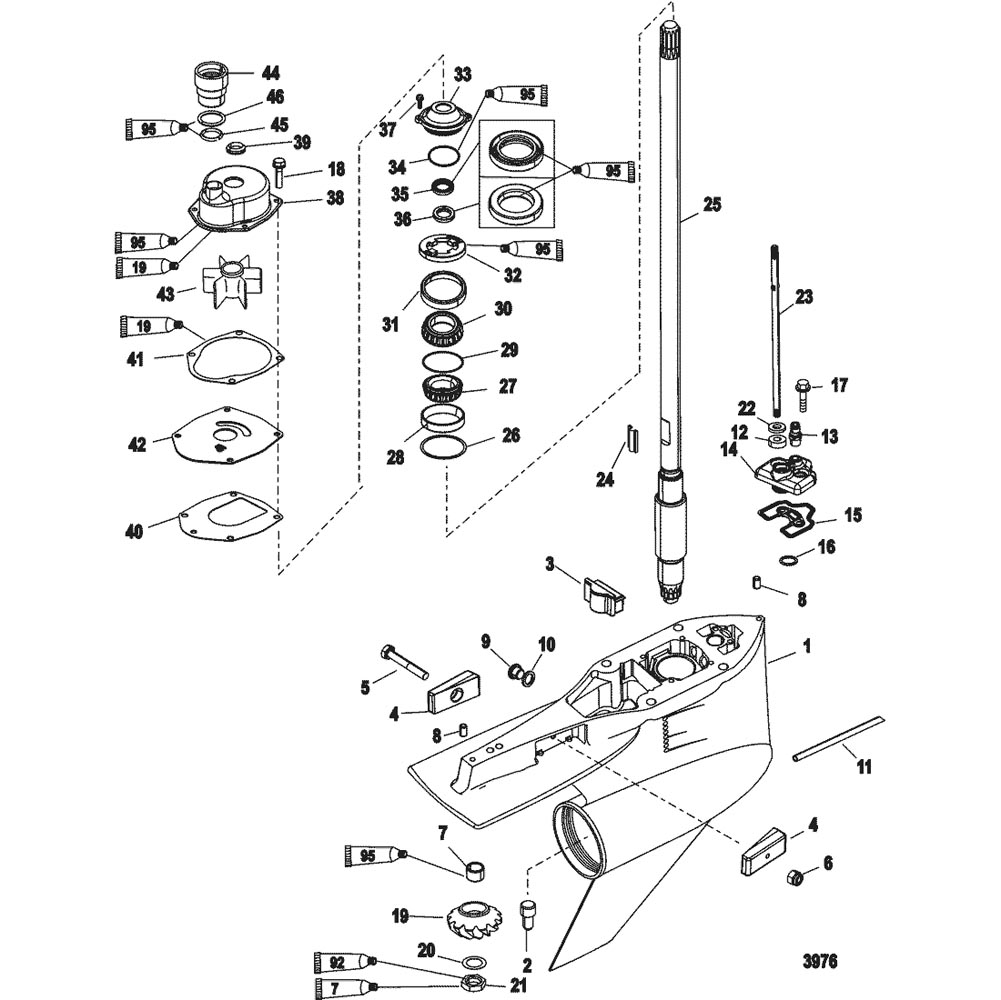

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and up
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing(Drive-Standard/Counter Torque/FleetMaster)
- Gear Housing, Propeller Shaft - TorqueMaster
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Swivel Bracket(Heavy Duty)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1689-840470T29 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| 1 | 1689-840470T5 | GEAR HOUSING ASSEMBLY, Basic | 1 | ||||||
| 2 | 17-379721 | PIN | 1 | ||||||
| 3 | 821526001 | FILLER BLOCK | 1 | ||||||
| 4 | 97-826134Q | ANODE | 2 | ||||||
| 5 | 10-4000333 | SCREW, (M6 x 40) | 1 | ||||||
| 6 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 7 | 31-42647A1 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 8 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 9 | 10-79953Q04 | SCREW KIT, Drain | 1 | ||||||
| 10 | 12-191833 | SEAL | 1 | ||||||
| 11 | 859402 | PITOT TUBE | 1 | ||||||
| 12 | 26-8164641 | SEAL, Oil | 1 | ||||||
| 13 | 22-881866 | FITTING | 1 | ||||||
| 14 | 858934 | COVER | 1 | ||||||
| 15 | 27-858935 | GASKET | 1 | ||||||
| 16 | 25-36318 | O-RING, (.799) | 1 | ||||||
| 17 | 10-82130016 | SCREW, (M6 x 16) | 2 | ||||||
| 18 | 10-82130016 | SCREW, (M6 x 16) | 4 | ||||||
| 19 | NSS | Pinion Gear | 1 | Not Sold Separate | |||||
| 20 | 12-92721 | WASHER | 1 | ||||||
| 21 | 11-35921 | NUT, (.625-18) | 1 | ||||||
| 22 | 12-77674 | WASHER | 1 | ||||||
| 23 | 824145 | SHIFT SHAFT | 1 | ||||||
| 24 | 28-8M0032833 | KEY | 1 | 43037 | |||||
| 25 | 45-881938 | DRIVESHAFT | 1 | ||||||
| 26 | 15-38657A1 | SHIM ASSEMBLY | AR | No Longer Available | |||||
| 27 | 31-48939A2 | BEARING, Tapered Roller | 1 | ||||||
| 28 | NSS | Cup | 1 | Not Sold Separate | |||||
| 29 | 15-42637A1 | SHIM SET | AR | No Longer Available | |||||
| 30 | 31-36387A1 | BEARING ASSEMBLY, Roller/Cup | 1 | ||||||
| 31 | NSS | Cup | 1 | Not Sold Separate | |||||
| 32 | 8245191 | RETAINER | 1 | ||||||
| 33 | 840836A2 | CARRIER ASSEMBLY | 1 | ||||||
| 34 | 25-896523 | O-RING, (2.175 x .175) | 1 | 90011 | |||||
| 35 | 26-66302 | SEAL, Oil | 1 | ||||||
| 36 | 26-66302 | SEAL, Oil | 1 | ||||||
| 37 | 10-82130016 | SCREW, (M6 x 16) | 2 | ||||||
| 38 | 817275A1 | HOUSING KIT, Water Pump | 1 | ||||||
| 39 | 26-816575A2 | SEAL KIT | 1 | ||||||
| 40 | 27-430331 | GASKET | 1 | ||||||
| 41 | 27-8172771 | GASKET | 1 | ||||||
| 42 | 8172761 | FACEPLATE | 1 | ||||||
| 43 | 47-43026T2 | IMPELLER | 1 | ||||||
| 44 | 832942A1 | COUPLING ASSEMBLY | 1 | ||||||
| 45 | 25-21836 | O-RING, (.796 x .139) | 1 | ||||||
| 46 | 25-35027 | O-RING, (1.046) | 1 | ||||||
| - | 26-816575A6 | SEAL KIT, Gear Housing | 1 | ||||||
| - | 817275A5 | REBUILD KIT, Water Pump | 1 |
