250 Sport XS - Serial 1E002342 Thru 1E051823 - Cylinder Block and End Cap

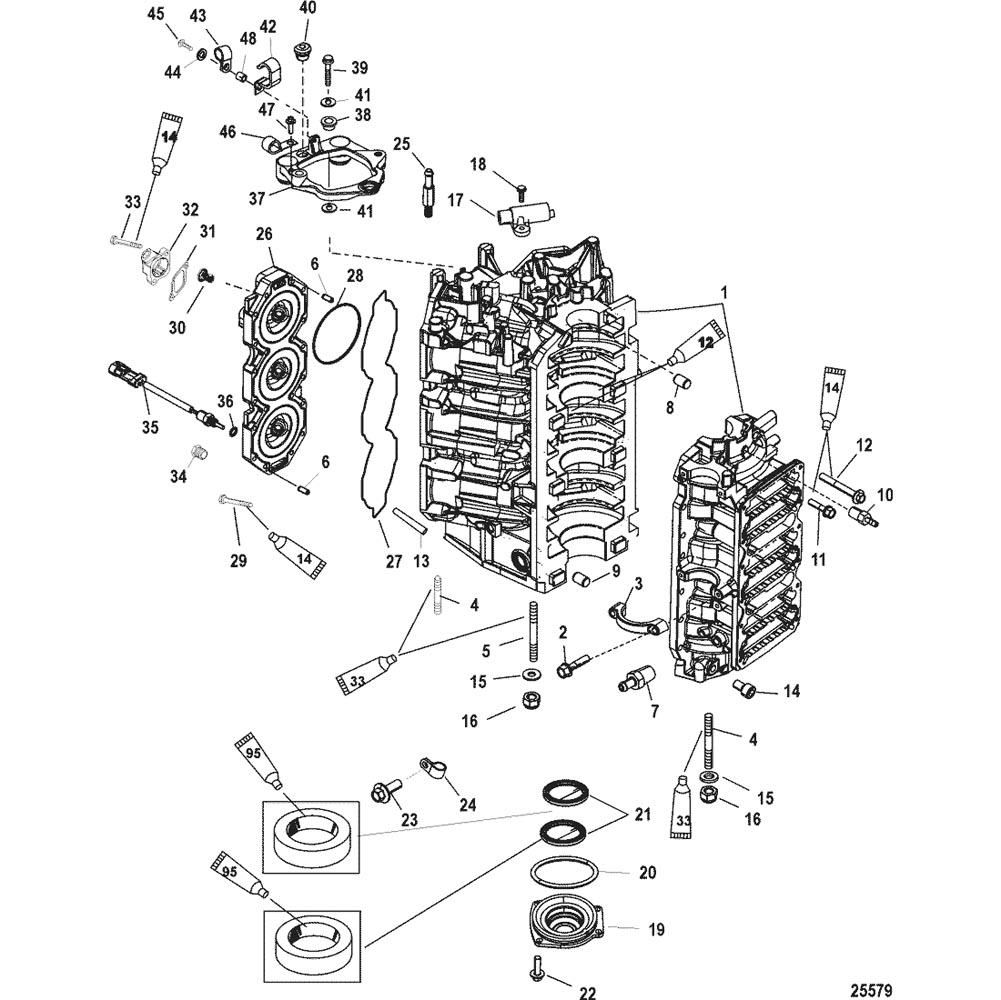

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and up
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing(Drive-Standard/Counter Torque/FleetMaster)
- Gear Housing, Propeller Shaft - TorqueMaster
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Swivel Bracket(Heavy Duty)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 885-9811T72 | CYLINDER BLOCK ASSEMBLY | 1 | ||||||
| 2 | 10-81893440 | SCREW, (M8 x 40) | 4 | ||||||
| 3 | 8M0041759 | BRACKET | 2 | 8569662 | |||||
| 4 | 16-903509 | STUD, (M10 x 1.5 x64) | 8 | ||||||
| 5 | 16-815443002 | STUD, (M10 x 165) | 2 | ||||||
| 6 | 17-63779 | PIN, Dowel (.250 x .625) | 4 | ||||||
| 7 | 21-8781051 | CHECK VALVE | 1 | ||||||
| 8 | 17-8M0036405 | PIN | 3 | 67296 | |||||
| 9 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 1 | ||||||
| 10 | 22-8245021 | CONNECTOR | 1 | ||||||
| 11 | 10-81893435 | SCREW, (M8 x 35) | 14 | ||||||
| 12 | 10-82446180 | SCREW, (M10 x 80) | 8 | ||||||
| 13 | 8248577 | DEFLECTOR | 6 | ||||||
| 14 | 10-82494810 | SCREW, (M6 x 10) | 1 | ||||||
| 15 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 10 | ||||||
| 16 | 11-4013610 | NUT, (M10) Stainless Steel | 10 | ||||||
| 17 | 8M0082988 | SENSOR | 1 | 8283582 | |||||
| 18 | 10-40011107 | SCREW, (M5 x 16) Stainless Steel | 2 | ||||||
| 19 | 1171-9787A4 | END CAP ASSEMBLY | 1 | ||||||
| 20 | 25-62700 | O-RING, (3.237 x .103) | 1 | ||||||
| 21 | 26-8308981 | SEAL | 2 | ||||||
| 22 | 10-82130020 | SCREW, (M6 x 20) | 4 | ||||||
| 23 | 10-82130012 | SCREW, (M6 x 12) | 1 | ||||||
| 24 | 54-858902 | CLAMP | 1 | ||||||
| 25 | 8215832 | PIN, Special (1.5 Inches) | 1 | ||||||
| 26 | 900-841021A08 | CYLINDER HEAD ASSEMBLY, Starboard | 1 | ||||||
| 26 | 900-841020A08 | CYLINDER HEAD ASSEMBLY, Port | 1 | ||||||
| 27 | 818574 | SEAL | 2 | ||||||
| 28 | 884391 | SEAL | 6 | ||||||
| 29 | 10-8M0045380 | SCREW, (M8 x 50) | 40 | 891570050 | |||||
| 30 | 8M0057307 | THERMOSTAT, 54 Degree C/130 Degree F | 2 | 885599004 | |||||
| 31 | 27-8503181 | GASKET | 2 | ||||||
| 32 | 887601002 | COVER, Port | 1 | ||||||
| 32 | 887602002 | COVER, Starboard | 1 | ||||||
| 33 | 10-82130025 | SCREW, (M6 x 25) | 4 | ||||||
| 34 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 35 | 885342002 | SENSOR ASSEMBLY | 2 | ||||||
| 36 | 25-896699 | O-RING, (1.78 mm x .08 mm) | 2 | ||||||
| 37 | 857186T02 | PLATE ASSEMBLY | 1 | ||||||
| 38 | 23-855729 | MOUNT | 3 | ||||||
| 39 | 10-82130145 | SCREW, (M10 x 45) | 3 | ||||||
| 40 | 25-19565002 | GROMMET | 1 | ||||||
| 41 | 12-855725 | WASHER | 6 | ||||||
| 42 | 54-65292 | J CLIP | 1 | ||||||
| 43 | 54-858424 | CLAMP | 1 | ||||||
| 44 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 1 | ||||||
| 45 | 10-82130016 | SCREW, (M6 x 16) | 2 | ||||||
| 46 | 54-858951 | J CLIP | 1 | ||||||
| 47 | 10-82130012 | SCREW, (M6 x 12) | 1 | ||||||
| 48 | 23-421581 | BUSHING | 1 | ||||||
| - | 61-841017A52 | POWERHEAD ASSEMBLY | 1 | ||||||
| - | 27-841220A03 | GASKET SET, Powerhead | 1 |
