250 Sport XS - Serial 1E002342 Thru 1E051823 - Swivel Bracket(Heavy Duty)

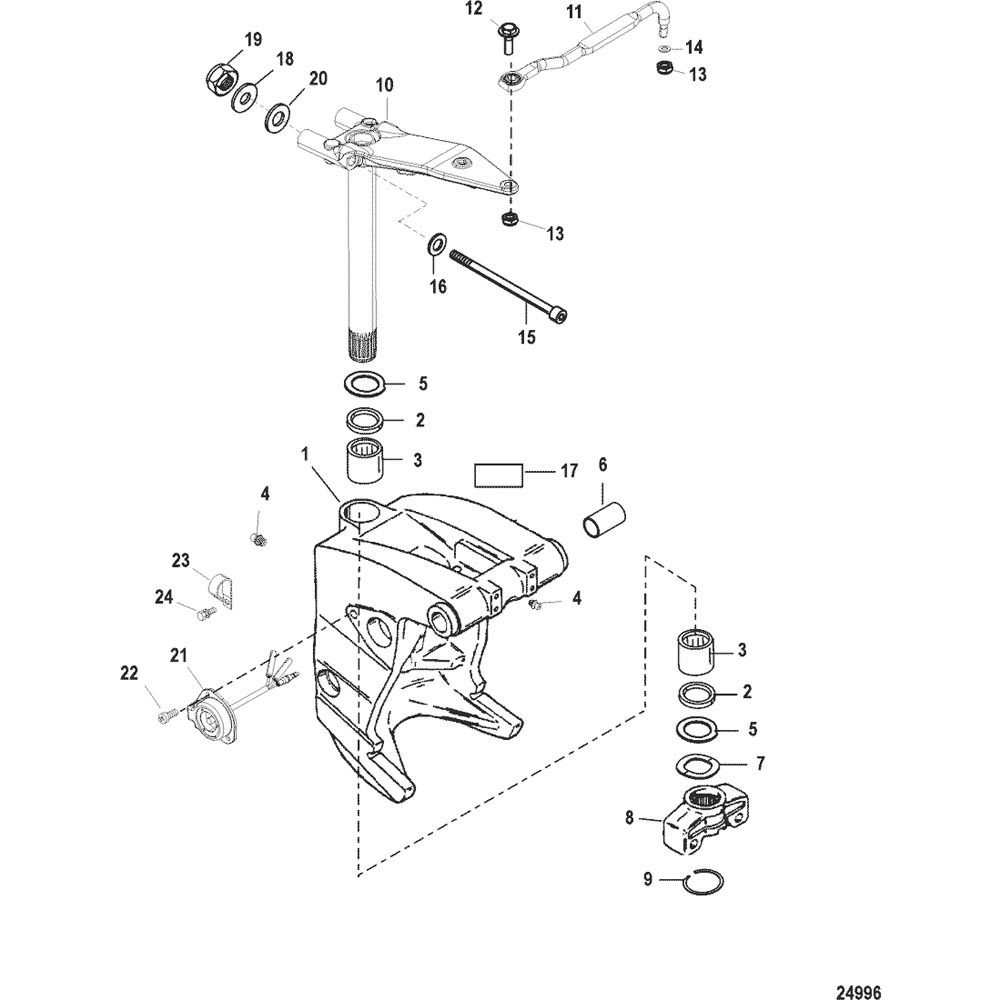

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and up
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing(Drive-Standard/Counter Torque/FleetMaster)
- Gear Housing, Propeller Shaft - TorqueMaster
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Swivel Bracket(Heavy Duty)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1491-847723T09 | SWIVEL BRACKET ASSEMBLY | 1 | ||||||
| 2 | 26-847729 | SEAL, Oil | 2 | ||||||
| 3 | 23-847726 | BEARING | 2 | ||||||
| 4 | 22-74036 | FITTING, Grease | 2 | ||||||
| 5 | 23-847728 | BEARING | 2 | ||||||
| 6 | 23-82203522 | BEARING | 1 | ||||||
| 6 | 23-82203516 | BEARING | 1 | ||||||
| 7 | 13-78854 | WAVE WASHER | 1 | ||||||
| 8 | 814084T1 | YOKE, Bottom | 1 | ||||||
| 9 | 53-848125 | RING, Retaining - Spiral Lock | 2 | ||||||
| 10 | 17-879330T36 | SWIVEL PIN | 1 | 8407931 | |||||
| 11 | 92876A12 | LINK ROD ASSEMBLY | 1 | ||||||
| 12 | 10-849838 | SCREW, (.375-24 x 1.250) | 1 | ||||||
| 13 | 11-826709113 | NUT, (.375-24) Stainless Steel | 2 | ||||||
| 14 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 2 | ||||||
| 15 | 10-8495811 | SCREW, (.500-13 x 7.750) | 2 | ||||||
| 16 | 12-4002321 | WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel | 2 | ||||||
| 17 | NSS | Decal-Serial Overlaminate | 1 | Not Sold Separate | |||||
| 18 | 12-815432 | WASHER, (.562 x 2.00 x .125) | 2 | ||||||
| 19 | 11-844766 | NUT, (.500-13) | 2 | ||||||
| 20 | 12-816056 | WASHER | 2 | ||||||
| 21 | 841198A1 | SENSOR ASSEMBLY, Trim | 1 | ||||||
| 22 | 10-852453 | SCREW, (#10-24 x .560) | 2 | ||||||
| 23 | 54-88512 | CLAMP | 1 | ||||||
| 24 | 10-88829 | SCREW, (#10-24 x .500) | 1 |
