250 Sport XS - Serial 1E002342 Thru 1E051823 - Gear Housing, Propeller Shaft-Standard-FleetMaster

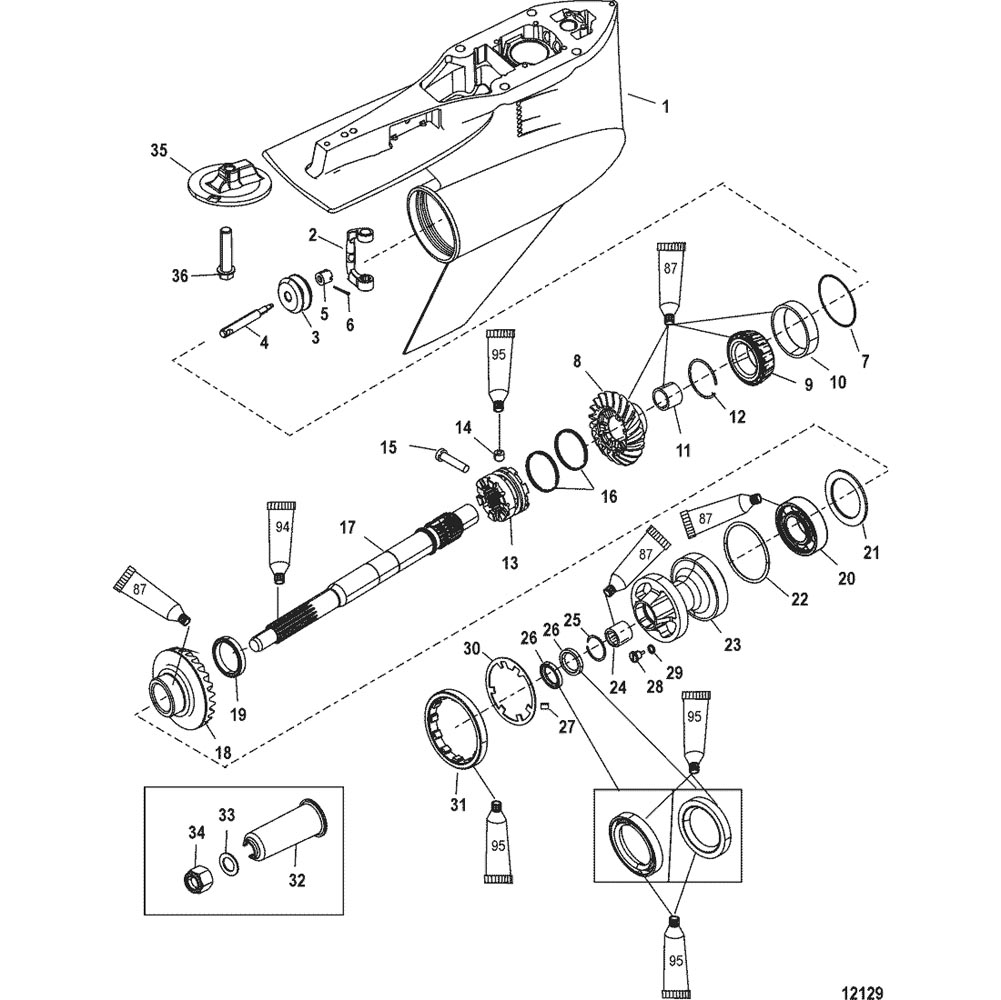

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and up
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing(Drive-Standard/Counter Torque/FleetMaster)
- Gear Housing, Propeller Shaft - TorqueMaster
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Swivel Bracket(Heavy Duty)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1689-842004T02 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| - | 1689-842004T04 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| - | 1689-842004T06 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| - | 1689-842004T10 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| - | 1689-842004T16 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| - | 1689-842004T18 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| 1 | 1689-842004T01 | GEAR HOUSING ASSEMBLY, Basic | 1 | ||||||
| 2 | 823903 | SHIFT CRANK | 1 | ||||||
| 3 | 19755T7 | SPOOL ASSEMBLY | 1 | ||||||
| 4 | NSS | Spool | 1 | Not Sold Separate | |||||
| 5 | NSS | Sleeve | 1 | Not Sold Separate | |||||
| 6 | NSS | Cotter Pin | 1 | Not Sold Separate | |||||
| 7 | 15-47397A1 | SHIM SET | AR | ||||||
| 8 | 43-859321T04 | GEAR SET, Forward/Pinion | 1 | ||||||
| 8 | 43-878611T03 | GEAR SET, Forward/Pinion | 1 | ||||||
| 8 | 43-878617A05 | GEAR SET, Forward/Pinion | 1 | ||||||
| 9 | 31-828437A2 | BEARING ASSEMBLY | 1 | ||||||
| 10 | NSS | Cup | 1 | Not Sold Separate | |||||
| 11 | 31-30895T | BEARING, Needle | 1 | ||||||
| 12 | 53-856823 | RING, Retaining | 1 | ||||||
| 13 | 52-848878T | CLUTCH | 1 | ||||||
| 14 | 17-78909 | PIN, Detent | 2 | ||||||
| 15 | 17-848838 | PIN, Cross | 1 | ||||||
| 16 | 24-78962 | SPRING | 2 | ||||||
| 17 | 44-841978 | PROPELLER SHAFT | 1 | ||||||
| 18 | 43-848881A1 | GEAR, Reverse | 1 | ||||||
| 18 | 43-844147T01 | GEAR, Reverse | 1 | ||||||
| 18 | 43-844148T01 | GEAR, Reverse | 1 | ||||||
| 19 | 23-8241081 | THRUST SPACER | 1 | ||||||
| 20 | 30-88957T | BEARING, Ball | 1 | ||||||
| 21 | 681001 | RING, Thrust | 1 | ||||||
| 22 | 25-31534 | O-RING | 1 | ||||||
| 23 | 848840A1 | CARRIER ASSEMBLY, Bearing | 1 | 848840T1 | |||||
| 24 | 31-817072 | BEARING, Roller | 1 | ||||||
| 25 | 53-817071 | RING, Snap | 1 | ||||||
| 26 | 26-815565 | SEAL, Oil | 2 | ||||||
| 27 | 28-30281 | KEY | 1 | ||||||
| 28 | 22-8M0058389 | PLUG KIT, Drain - Magnetic | 1 | 67892A06 | |||||
| 29 | 12-191833 | SEAL | 1 | ||||||
| 30 | 14-79447 | TAB WASHER | 1 | ||||||
| 31 | 8M2011027 | RETAINER | 1 | 79448 | |||||
| 32 | 8480611 | COVER | 1 | ||||||
| 33 | 12-85344 | WASHER, (.750 Inside Diameter) | 1 | ||||||
| 34 | 11-52707Q1 | PROP NUT KIT, (.750-16) | 1 | ||||||
| 35 | 10-66024 | SCREW, (.437-14 x 1.75) | 1 | ||||||
| 36 | 97-76214Q5 | ANODE | 1 | 762145 | |||||
| - | 26-816575A6 | SEAL KIT, Gear Housing | 1 |
