250 Sport XS - Serial 1E002342 Thru 1E051823 - Crankshaft, Pistons and Connecting Rods

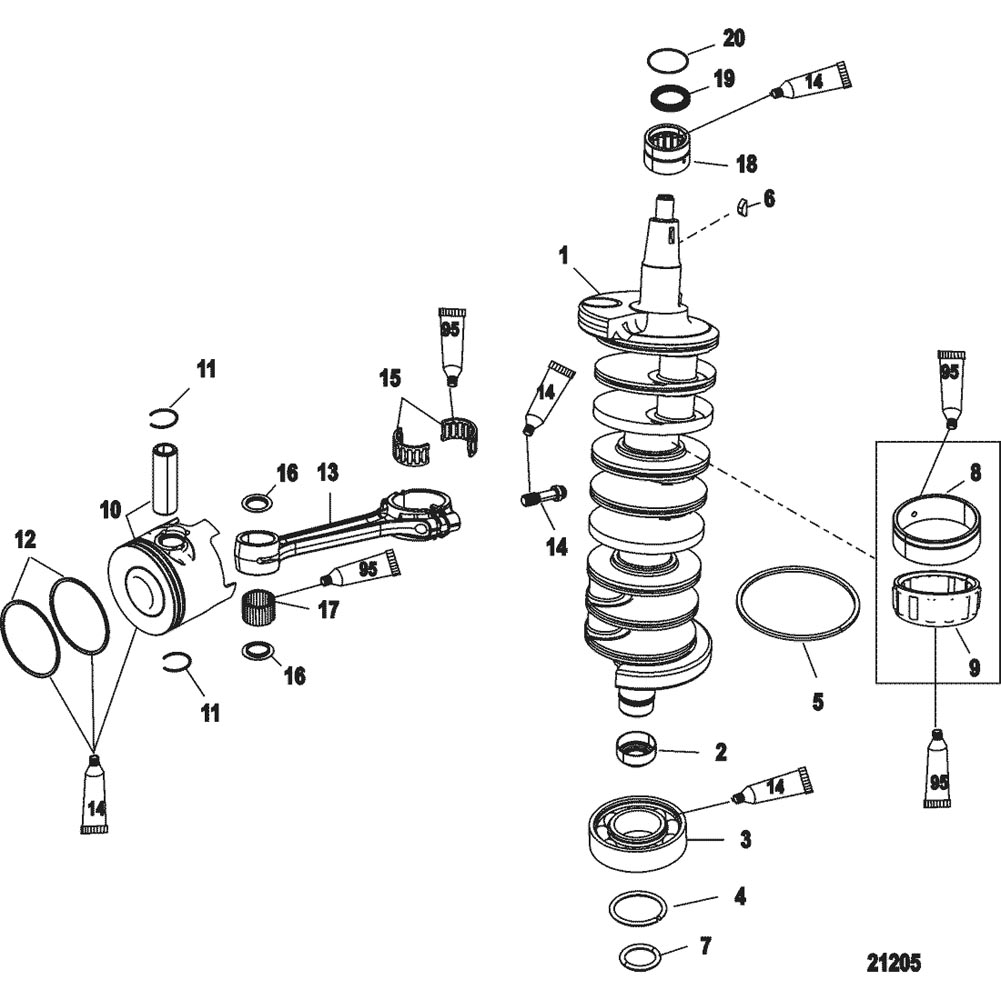

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and up
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing(Drive-Standard/Counter Torque/FleetMaster)
- Gear Housing, Propeller Shaft - TorqueMaster
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Swivel Bracket(Heavy Duty)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 482-842753A02 | CRANKSHAFT ASSEMBLY | 1 | ||||||
| 2 | NSS | Wear Sleeve | 1 | Not Sold Separate | |||||
| 3 | 30-67923T | BEARING, Ball (Lower) | 1 | ||||||
| 4 | 53-67446 | RING | 1 | ||||||
| 5 | 39-8M0071646 | RING, Seal | 7 | 843198 | |||||
| 6 | 28-91800 | KEY, Woodruff | 1 | ||||||
| 7 | 25-35126 | O-RING, (.859 x .139) | 1 | ||||||
| 8 | 31-88270A02 | BEARING/RACE KIT | 2 | ||||||
| 9 | 31-88269T | BEARING ASSEMBLY | 2 | ||||||
| 10 | 2720-843199T13 | PISTON ASSEMBLY | 3 | ||||||
| 10 | 2720-842986T03 | PISTON ASSEMBLY | 3 | 843200T13 | |||||
| 11 | 40-841202 | RING | 12 | ||||||
| 12 | 39-858772A02 | RING SET, Piston | 1 | ||||||
| 13 | 647-822373A12 | CONNECTING ROD ASSEMBLY | 6 | ||||||
| 14 | 10-94320 | SCREW, (.375-24 x 1.250) | 12 | ||||||
| 15 | 31-844338A01 | BEARING ASSEMBLY | 6 | ||||||
| 16 | 12-88263 | THRUST WASHER | 12 | ||||||
| 17 | 29-88258001 | BEARING, Needle | 204 | ||||||
| 18 | 31-816773A2 | BEARING ASSEMBLY (Upper) | 1 | ||||||
| 19 | 26-859093 | SEAL | 1 | ||||||
| 20 | 25-823683 | O-RING, (1.989 x .070) | 1 | ||||||
| - | 27-841220A03 | GASKET SET, Powerhead | 1 | 832933A05 | |||||
| - | 61-843034A07 | POWERHEAD ASSEMBLY | 1 |
