4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Crankshaft And Pistons
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor
- ECM And Electrical Brackets
- Electrical Components
- Engine Mounting
- Exhaust Manifold (One Piece)
- Exhaust Manifold And Exhaust Elbow (Two Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Jackshaft
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage

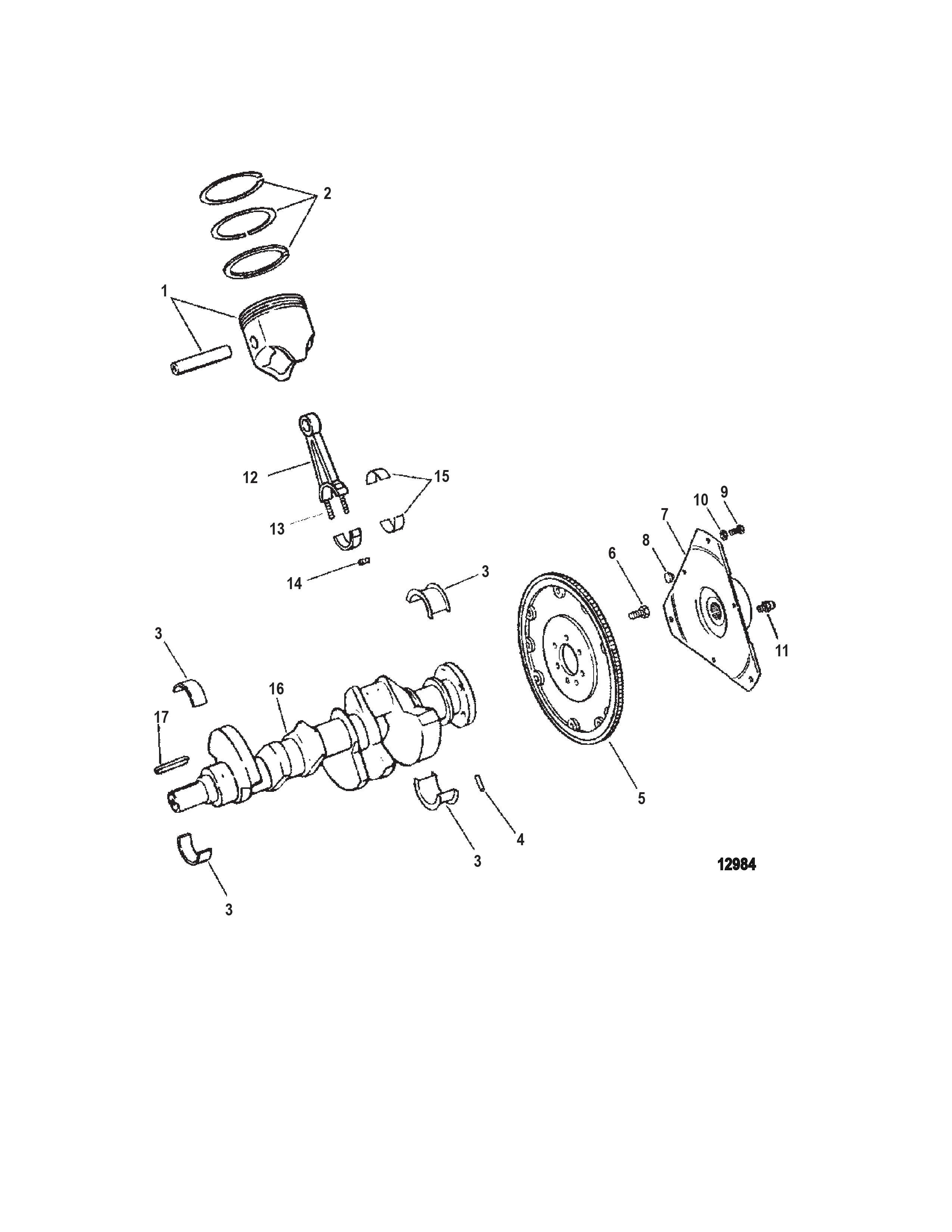

Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
---|---|---|---|---|---|---|
1 | 0735 | OEM: 525-735-835001T | PISTON ASSEMBLY | (Standard) | 6 | |
1 | 0735 | OEM: 525-735-835002T | PISTON ASSEMBLY | (.5MM Over Size) | AR | |
2 | 0039 | 801861T1 | RING SET Piston | (Standard) | 6 | |
2 | 0039 | OEM: 525-39-835000 | RING SET Piston | (.5MM Over Size) | AR | |
3 | 0023 | OEM: 525-23-818465, Sierra: 676-18-1300 | BEARING SET 5 Pair | (Standard) | 1 | |
3 | 0023 | OEM: 525-23-818466 | BEARING SET 5 Pair | (.001 USA) | AR | |
3 | 0023 | OEM: 525-23-818467 | BEARING SET 5 Pair | (.010 USA) | AR | |
3 | 0023 | OEM: 525-23-818468 | BEARING SET 5 Pair | (.020 USA) | AR | |
4 | 0017 | OEM: 525-17-43504 | PIN Dowel | 1 | ||
5 | 0222 | 8243201 | FLYWHEEL | (GM Block Code 8LK, 8LJ) | 1 | |
5 | 0222 | 804913 | FLYWHEEL | (GM Block Code 9LK, 9LJ, 0LK, 0LJ) | 1 | |
6 | 0010 | 49845 | SCREW (.437-20 x 1.00) | 6 | ||
7 | 0000 | OEM: 530-18643A5, Sierra: 676-18-2323, GLM: 700-11532 | COUPLING ASSEMBLY | 1 | ||
8 | 0000 | OEM: 525-18644 | BUMPER Rubber | 3 | ||
9 | 0010 | OEM: 525-10-14883 | SCREW (.375-16 x 1.12) | 3 | ||
10 | 0012 | OEM: 525-12-13510 | WASHER | 3 | ||
11 | 0022 | OEM: 525-22-74036 | FITTING Grease | 1 | ||
12 | 0614 | 811839T | CONNECTING ROD | 6 | ||
13 | 0010 | OEM: 525-10-11969 | BOLT | 12 | ||
14 | 0011 | 37493 | NUT (.375-24) | 12 | ||
15 | 0023 | 11992 | BEARING | (Standard - Pair) | 6 | |
15 | 0023 | OEM: 525-23-11993 | BEARING | (.001 USA - Pair) | AR | |
15 | 0023 | 811858 | BEARING | (.010 USA - Pair) | AR | |
15 | 0023 | OEM: 525-23-811859 | BEARING | (.020 USA - Pair) | AR | |
16 | 0429 | 95171 | CRANKSHAFT | (GM Block Code 8LK, 8LJ) | 1 | |
16 | 0429 | 804911 | CRANKSHAFT | (GM Block Code 9LK, 9LJ, 0LK, 0LJ) | 1 | |
17 | 0028 | OEM: 525-28-8184851 | KEY | 1 |
