4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Cylinder Head And Rocker Cover

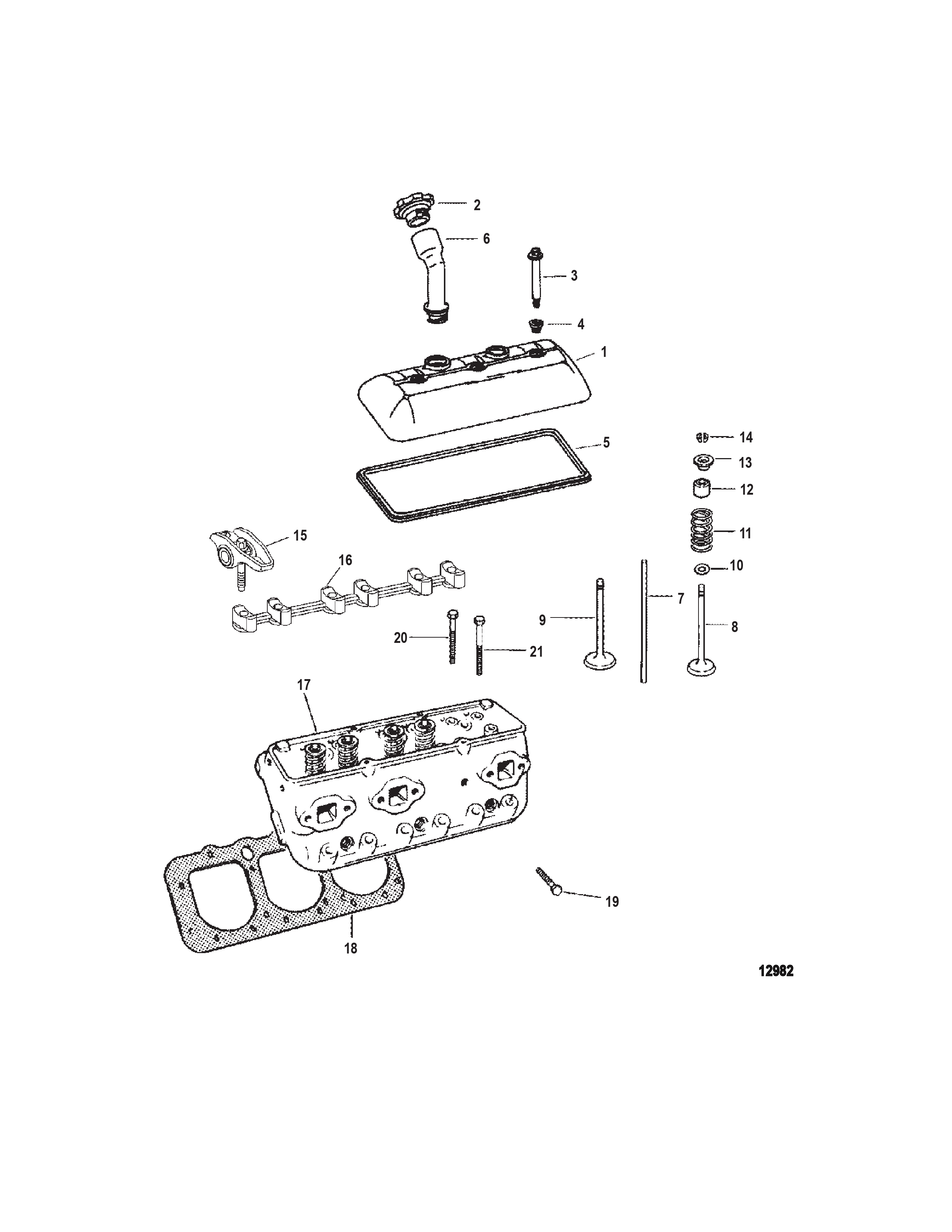

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor
- ECM And Electrical Brackets
- Electrical Components
- Engine Mounting
- Exhaust Manifold (One Piece)
- Exhaust Manifold And Exhaust Elbow (Two Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Jackshaft
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-827149 | COVER Rocker | Without oil fill opening | 1 | |
| 1 | 0000 | OEM: 525-827150 | COVER Rocker | With oil fill opening | 1 | |
| 2 | 0036 | OEM: 525-36-827151 | CAP Oil Fill | 1 | ||
| 3 | 0010 | OEM: 525-10-827153 | SCREW | 6 | ||
| 4 | 0025 | OEM: 525-25-827155 | O-RING | 6 | ||
| 5 | 0027 | OEM: 525-27-827154, Sierra: 676-18-61319, GLM: 700-30358 | GASKET Rocker Cover | 2 | [1] | |
| 6 | 0000 | OEM: 525-806754T | TUBE Oil Fill | 1 | ||
| 7 | 0000 | OEM: 525-173391 | PUSH ROD | 12 | ||
| 8 | 0000 | OEM: 525-8243171 | VALVE Exhaust | (Standard) | 6 | |
| 8 | 0000 | OEM: 525-8243181 | VALVE Exhaust | (.030 Over Size) | AR | |
| 9 | 0000 | OEM: 525-809992 | VALVE Intake | (Standard) | 6 | |
| 10 | 0026 | OEM: 525-26-976641, Sierra: 676-18-4024 | SEAL | (Intake Valve) | 6 | [1] |
| 10 | 0026 | OEM: 525-26-34217, Sierra: 676-18-0518 | SEAL | (Exhaust Valve (O-Ring) | 6 | [1] |
| 11 | 0024 | OEM: 525-24-483471 | SPRING | 12 | ||
| 12 | 0000 | 34518 | SHIELD | 12 | ||
| 13 | 0000 | OEM: 525-483481 | CAP | 12 | ||
| 14 | 0028 | OEM: 525-28-547971 | KEY | 24 | ||
| 15 | 0000 | 883164 | ROCKER ARM ASSEMBLY Roller | 12 | [2] | |
| 16 | 0000 | OEM: 525-883165 | SUPPORT Rocker Arm Roller | 2 | [2] | |
| 17 | 0938 | OEM: 525-938-8271783 | CYLINDER HEAD | 2 | [3] | |
| 18 | 0027 | 816460 | GASKET | 2 | [1] | |
| 19 | 0010 | OEM: 525-10-11968 | SCREW (.437-14 x 1.750) | 12 | ||
| 20 | 0010 | 119671 | SCREW (.437-14 x 3.00) | 4 | ||
| 21 | 0010 | OEM: 525-10-11966 | SCREW (.437-14 x 3.750) | 10 | ||
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component Of Engine/Powerhead Gasket Set 807756A96
[2] - Part Is New And Listed For The First Time
[3] - Alternate part numbers:
827178 3QS
8M0115136Kit
