4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Sea Water Pump Assembly (Use With Bravo Engines)

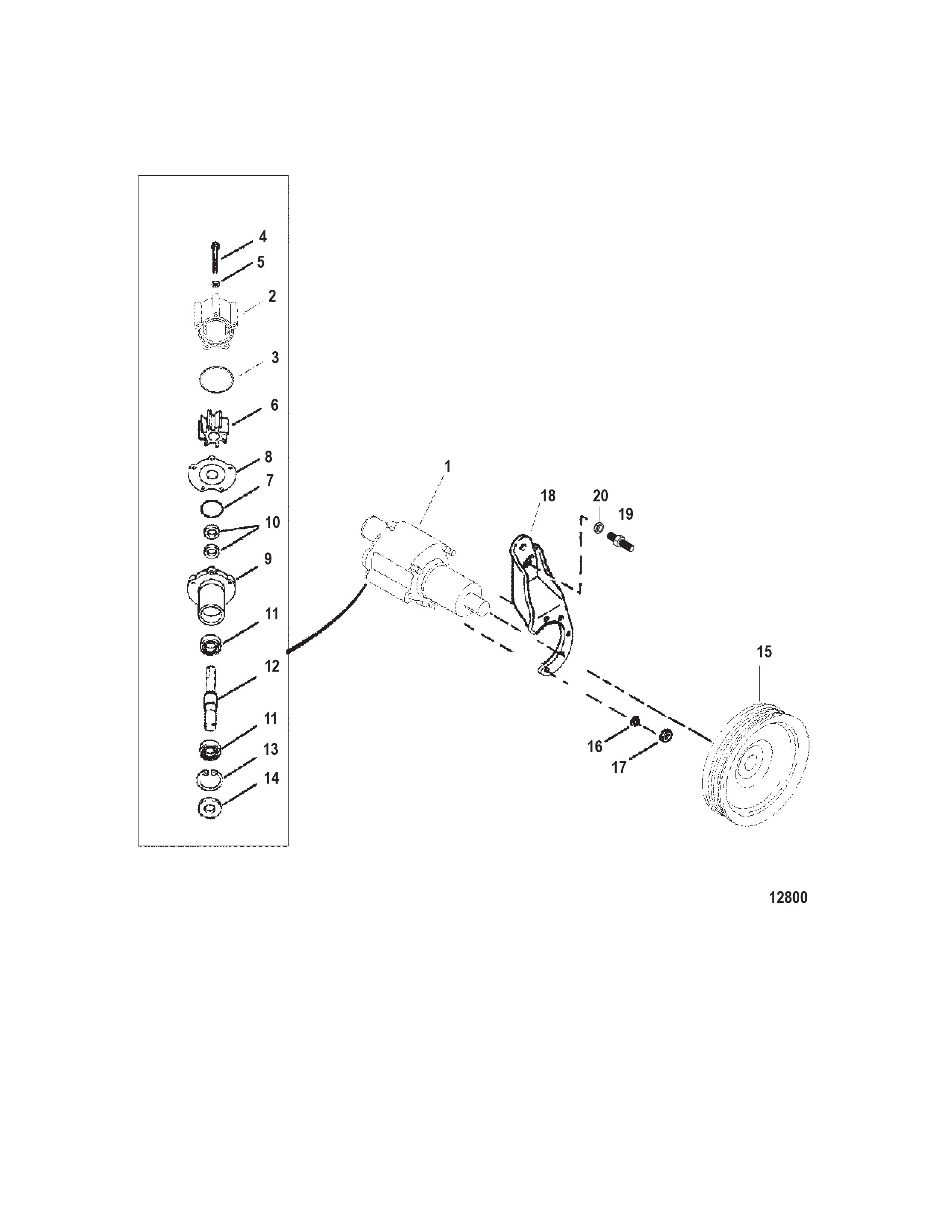

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor
- ECM And Electrical Brackets
- Electrical Components
- Engine Mounting
- Exhaust Manifold (One Piece)
- Exhaust Manifold And Exhaust Elbow (Two Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Jackshaft
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0046 | OEM: 530-807151A9, GLM: 700-12097 | PUMP ASSEMBLY Sea Water Complete | 1 | ||
| 2 | 0046 | OEM: 530-807151A14, Sierra: 676-18-3150, GLM: 700-12088 | BODY/IMPELLER KIT | 1 | ||
| 3 | 0025 | OEM: 525-25-33465, Sierra: 676-18-7163, GLM: 700-81430 | O-RING | 1 | ||
| 4 | 0010 | OEM: 525-10-807356 | SCREW (.312-18 x 2.680) (.312-18 X .625) | 2 | ||
| 4 | 0010 | OEM: 525-10-74191 | SCREW (.312-18 x 3.250) | 3 | ||
| 5 | 0012 | OEM: 525-12-814806, GLM: 700-21662 | WASHER (.344 x .688 x .065) Stainless Steel | 5 | ||
| 6 | 0047 | OEM: 530-59362T1, GLM: 700-89740 | IMPELLER | 1 | [1] | |
| 7 | 0025 | OEM: 525-25-94288, Sierra: 676-18-7474, GLM: 700-84026 | QUAD RING | 1 | ||
| 8 | 0000 | OEM: 525-94576, Sierra: 676-18-3350, GLM: 700-12501 | WEAR PLATE | 1 | ||
| 9 | 0046 | OEM: 525-46-94913A5, GLM: 700-22725 | HOUSING ASSEMBLY Pump | (Includes Refference 6) | 1 | |
| 10 | 0026 | OEM: 525-26-90562, Sierra: 676-18-2011, GLM: 700-85080 | SEAL (1.254 x .312) | 2 | ||
| 11 | 0030 | OEM: 525-30-72961, Sierra: 676-18-1398, GLM: 700-21625 | BEARING Ball | 2 | ||
| 12 | 0000 | OEM: 525-59501A1, GLM: 700-22401 | SHAFT | 1 | ||
| 13 | 0053 | OEM: 525-53-23720, GLM: 700-21772 | RING Retaining | 1 | ||
| 14 | 0026 | OEM: 525-26-72785, Sierra: 676-18-0531, GLM: 700-85810 | SEAL | 1 | ||
| 15 | 0000 | 861579 | PULLEY | 1 | ||
| 16 | 0013 | OEM: 525-13-39107, GLM: 700-21496 | LOCKWASHER (.312-24) | 3 | ||
| 17 | 0011 | OEM: 525-11-21908 | NUT (.312-18) Cad Plated | 3 | ||
| 18 | 0000 | OEM: 525-8077491 | BRACKET | 1 | ||
| 19 | 0016 | OEM: 525-16-860102 | STUD (.375-16 x 1.730) | 2 | ||
| 20 | 0011 | OEM: 525-11-32219 | NUT (.375-16) | 2 |
PART NOTES:
[1] - Alternate part numbers:
59362Q01QS
59362T 1Service Part
