4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Exhaust Manifold (One Piece)

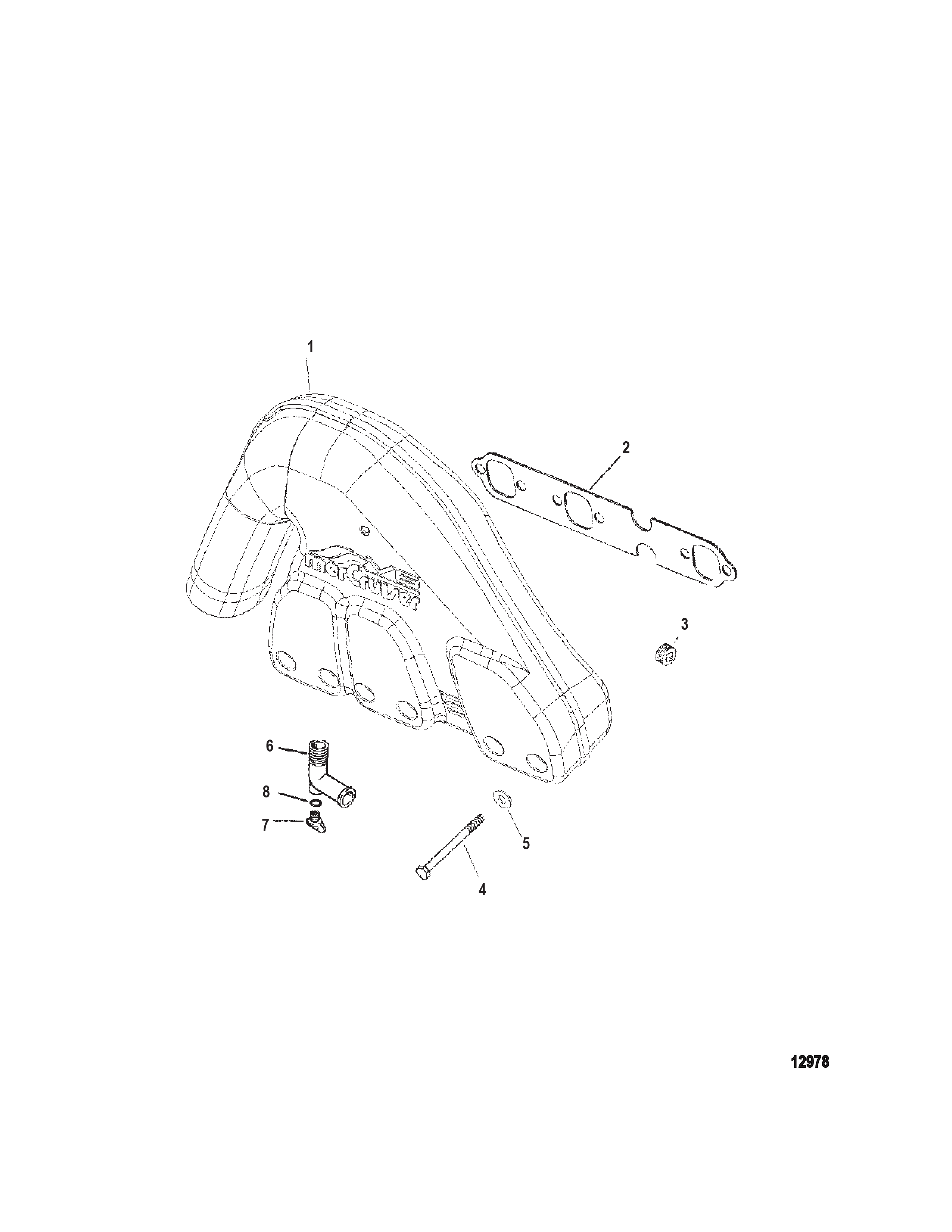

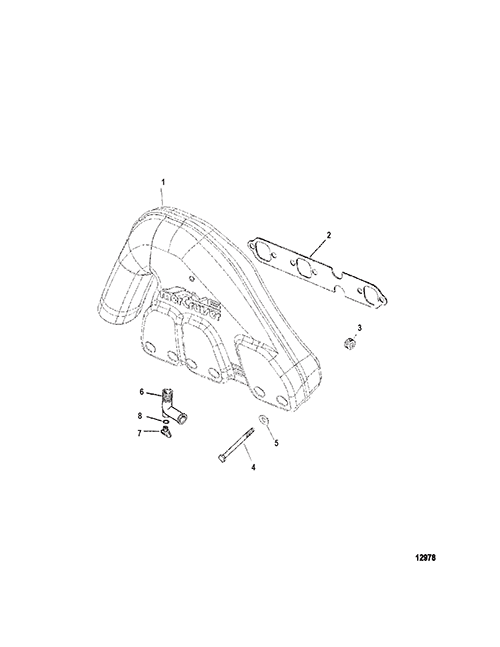

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor
- ECM And Electrical Brackets
- Electrical Components
- Engine Mounting
- Exhaust Manifold (One Piece)
- Exhaust Manifold And Exhaust Elbow (Two Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Jackshaft
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 807293A2 | MANIFOLD ASSEMBLY Exhaust | (Starboard) | 1 | |
| 1 | 0000 | 807294A3 | MANIFOLD ASSEMBLY Exhaust | (Port) | 1 | |
| 2 | 0027 | OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 | GASKET | 2 | [1] | |
| 3 | 0022 | 861187 | PLUG (.750-14) Pipe | 4 | ||
| 4 | 0010 | OEM: 525-10-53728, GLM: 700-21745 | SCREW (.375-16 x 4.75) | 12 | ||
| 5 | 0012 | OEM: 525-12-46132 | WASHER | 12 | ||
| 6 | 0022 | 806926A1 | ELBOW KIT Drain | 2 | ||
| 7 | 0022 | 806608A1 | PLUG KIT (.500-13) Royal Blue | 2 | [2] | |
| 8 | 0025 | 32509 | O-RING (.489 x .070) | 2 | [1] | |
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component Of Engine/Powerhead Gasket Set 807756A96
[2] - Alternate part numbers:
806608A 1Service Part
806608Q01QS
