4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Cylinder Block And Camshaft

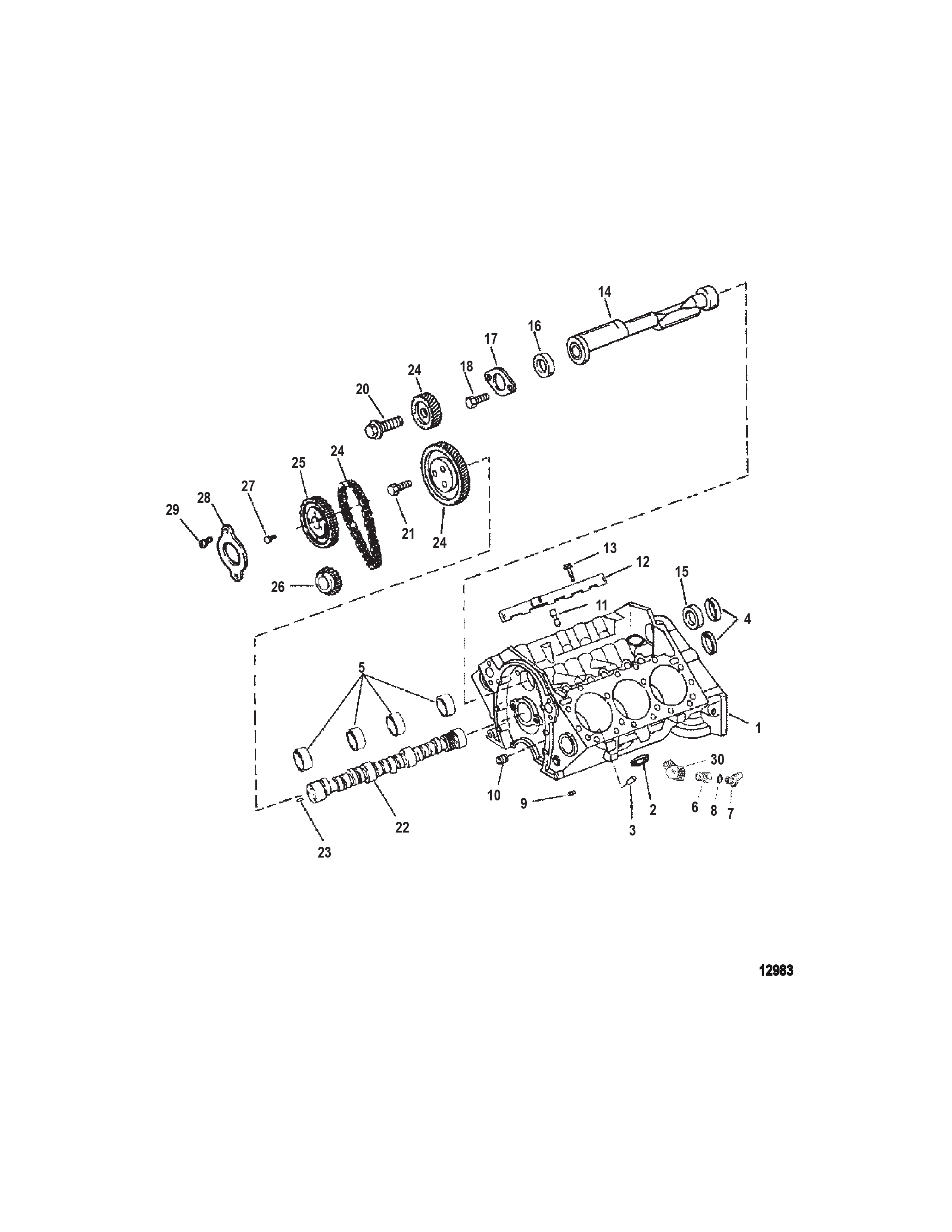

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1   NSS NOT SOLD SEPARATE Cylinder Block (Order Long Block 807736A 1) 1
2 0019 OEM: 525-19-34270 EXPANSION PLUG (1.625)   6
3 0017 OEM: 525-17-35465 PIN Dowel (.312) Dowel   6
4 0022 OEM: 525-22-72640 PLUG Expansion   2
5 0023 OEM: 525-23-802999 BEARING SET   1
6 0022 OEM: 525-22-860088 BUSHING   1
7 0022 806608A1 PLUG KIT (.500-13) Royal Blue   2 [1]
8 0025 32509 O-RING (.489 x .070)   2 [2]
9 0022 OEM: 525-22-42796 VALVE Oil Filter Bypass   1
10 0019 OEM: 525-19-816565 PLUG Cup (.468)   1
11 0000 OEM: 525-8118441 LIFTER Roller   12
12 0000 OEM: 525-8243311 RETAINER Lifter   2
13 0010 8243321 SCREW (.312-18 x .625)   4
14 0000 OEM: 525-8241481 BALANCED SHAFT   1
15 0031 OEM: 525-31-824150 BEARING Needle Rear   1
16 0030 824149 BEARING Ball Front   1
17 0000 824153 RETAINER Balance Shaft   1
18 0010 OEM: 525-10-845943 SCREW (.250-20 x .500)   2
20 0010 824152 SCREW   1
21 0010 824329 SCREW (.312-18 x .750)   3
22 0431 OEM: 525-431-803186 CAMSHAFT   1
23 0017 353121 PIN Dowel   1
24 0043 OEM: 525-43-8241511 GEAR KIT   1
24 0000 OEM: 525-883494 CHAIN KIT Timing (Includes 2 sprockets) 1 [3]
25 0043 824328 SPROCKET Camshaft   1
26 0043 OEM: 525-43-17160 SPROCKET Crankshaft   1
27 0010 824329 SCREW (.312-18 x .750)   3
28 0000 OEM: 525-824333 RETAINER Camshaft   1
29 0010 OEM: 525-10-824334 SCREW (.250-20 x .500)   2
30 0022 OEM: 525-22-37682 FITTING Elbow (45 Degree)   1
30 0022 OEM: 525-22-46982 FITTING (90 Degree) (90 Degrees)   1 [3]
- 0000 862757A1 MARINE LONG BLOCK ENGINE   1 [4]
- 0027 OEM: 525-27-807756A96 GASKET SET Engine Overhaul   1
- 0092 809825 RTV SILICONE (3 Ounce Tube) Metallic Blue   1
- 0092 342271 SEALING COMPOUND (16 Ounce)   1

PART NOTES:

[1] - Alternate part numbers:

806608A 1Service Part

806608Q01QS


[2] - Component Of Engine/Powerhead Gasket Set 807756A96


[3] - Part Is New And Listed For The First Time


[4] - Alternate part numbers:

862757A 1QS

862757R01Reman

8M0063328Reman Int'l
