4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Exhaust System (Use With One Piece Manifold)

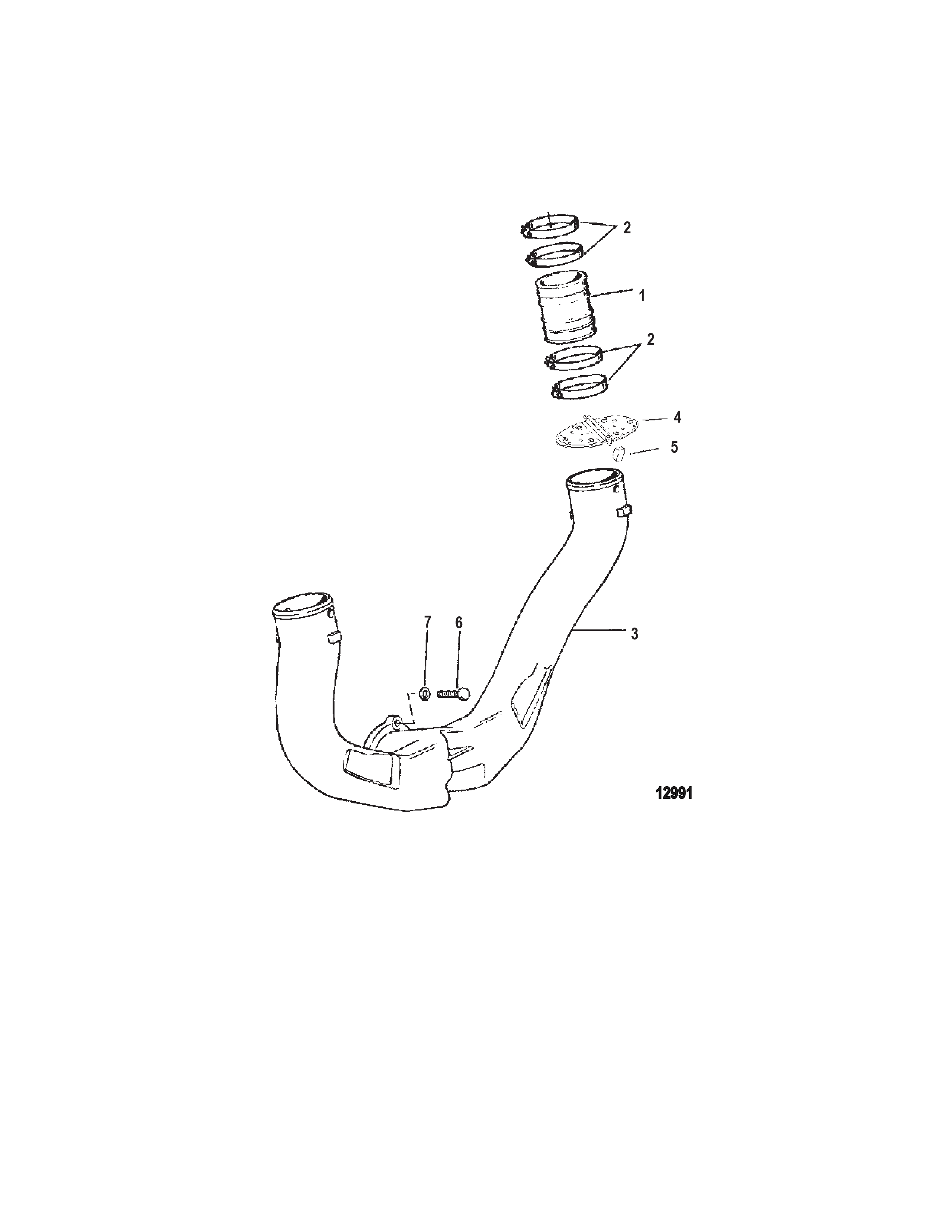

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor
- ECM And Electrical Brackets
- Electrical Components
- Engine Mounting
- Exhaust Manifold (One Piece)
- Exhaust Manifold And Exhaust Elbow (Two Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Jackshaft
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0032 | OEM: 525-32-807458T, Sierra: 676-18-2770 | TUBE Exhaust | 2 | ||
| 2 | 0054 | OEM: 525-54-815504272 | CLAMP Worm Gear | 8 | ||
| 3 | 0000 | 807130A7 | PIPE Exhaust | 1 | ||
| 4 | 0000 | OEM: 530-807166A2 | SHUTTER Water | 2 | ||
| 5 | 0025 | OEM: 525-25-807167 | GROMMET | 4 | ||
| 6 | 0010 | OEM: 525-10-58640 | SCREW (.375-16 x 1.25) | 4 | ||
| 7 | 0013 | OEM: 525-13-41471 | LOCKWASHER (.375) | 4 | ||
| NS | 0019 | 8079923 | COVER Hose Clamp End | AR |
