4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Jackshaft

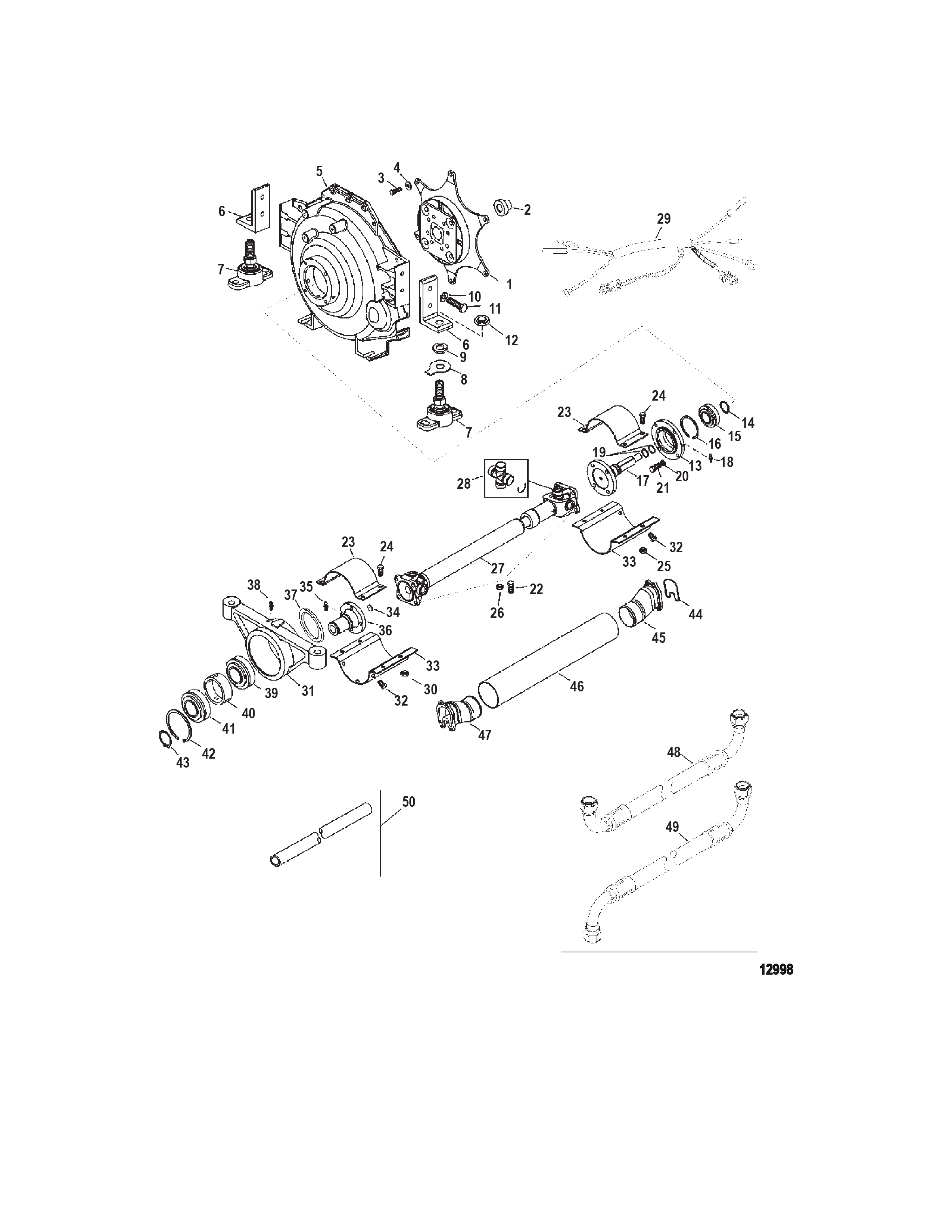

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-862838 DRIVEPLATE ASSEMBLY   1 [1]
2 0023 OEM: 525-23-862834 BUSHING   1 [1]
3 0010 OEM: 525-10-14883 SCREW (.375-16 x 1.12) Hex HD   6
4 0012 OEM: 525-12-20572 WASHER (.390 x .750 x .093)   6
5 0000 862737 HOUSING Flywheel   1 [1]
6 0000 OEM: 525-862738 BRACKET Flywheel Housing Mounts   2 [1]
7 0000 OEM: 530-66284A2 BASE ASSEMBLY   2
8 0014 OEM: 525-14-12657 TAB WASHER Tab   2
9 0013 OEM: 525-13-68102 LOCKWASHER (.750)   2
10 0013 OEM: 525-13-32993 LOCKWASHER (.437) Splitlock   4
11 0010 OEM: 525-10-47651 SCREW (.437-14 x 1.50) Hex HD   4
12 0011 OEM: 525-11-859126 NUT (.750-16)   2
13 0000 862833 BEARING Adaptor   1 [1]
14 0053 OEM: 525-53-841897T RING Retaining External   1
15 0030 62780T BEARING Ball   1
16 0053 OEM: 525-53-94104 RING Retaining Retainer, Internal   1
17 0000 OEM: 525-862832T SHAFT Output   1 [1]
18 0022 OEM: 525-22-49099 FITTING Grease   1
19 0025 OEM: 525-25-29845, Sierra: 676-18-7103, GLM: 700-81190 O-RING (.924 x .103)   2
20 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375) Splitlock   4
21 0010 OEM: 525-10-14883 SCREW (.375-16 x 1.12) Hex HD   4
22 0010 OEM: 525-10-805159 SCREW (.437-20 x 1.500)   8
23 0000 OEM: 525-862873T SHIELD Upper   2
24 0010 OEM: 525-10-76926 SCREW (.375-16 x .875)   8
25 0011 OEM: 525-11-82670912 NUT (.375-16) Stainless Steel   4
26 0011 82671015 NUT (.437-20) Stainless Steel   8
27 0000 862772A1 JACKSHAFT ASSEMBLY   1 [1]
28 0000 880800A1 UNIVERSAL JOINT Cross Assembly   1
29 0084 41575A7 HARNESS ASSEMBLY Extension   1 [1]
30 0011 OEM: 525-11-82670912 NUT (.375-16) Stainless Steel   4
31 0000 OEM: 525-817416A4 HOUSING ASSEMBLY Bearing Assembly   1
32 0010 OEM: 525-10-76926 SCREW (.375-16 x .875) (Quanity Three With Housing Assembly #817416A 4) 6
33 0000 OEM: 525-93918A1 SHIELD Lower Lower (Quantity One With Housing Assembly #817416A 4) 2
34 0019 OEM: 525-19-93921 EXPANSION PLUG   1
35 0022 OEM: 525-22-74036 FITTING Grease   1
36   NSS NOT SOLD SEPARATE Shaft - Input   1 [1]
37 0026 OEM: 525-26-93924 SEAL Oil   1
38 0022 OEM: 525-22-74036 FITTING Grease   2
39 0030 OEM: 525-30-860081 BEARING Ball   1
40 0023 817417 SPACER Bearing   1
41 0030 OEM: 525-30-93944A2 BEARING SET Ball   1
42 0053 OEM: 525-53-93914 RING Retaining Internal   1
43 0053 OEM: 525-53-93915 RING Retaining External   1
44 0000 OEM: 530-41802, GLM: 700-86217 SEAL Rubber   1
45 0000 OEM: 525-862268T2 TUBE Exhaust   1 [1]
46   NA NOT AVAILABLE Tube - Exhaust (Order Part Through Boat Manufacturer) 1
47 0000 OEM: 525-862268T1 TUBE Exhaust   1 [1]
48 0032 OEM: 525-32-80622232 HOSE Pressure (120 Inches)   1 [1]
49 0032 OEM: 525-32-80622142 HOSE ASSEMBLY (84.00 Inches Bulk) Return - Pressure   1
50 0032 OEM: 525-32-862877 HOSE Transom to Cooler   1 [1]

PART NOTES:

[1] - Part Is New And Listed For The First Time
