454 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L058400 Thru 0M024999 - Alternator and Bracket

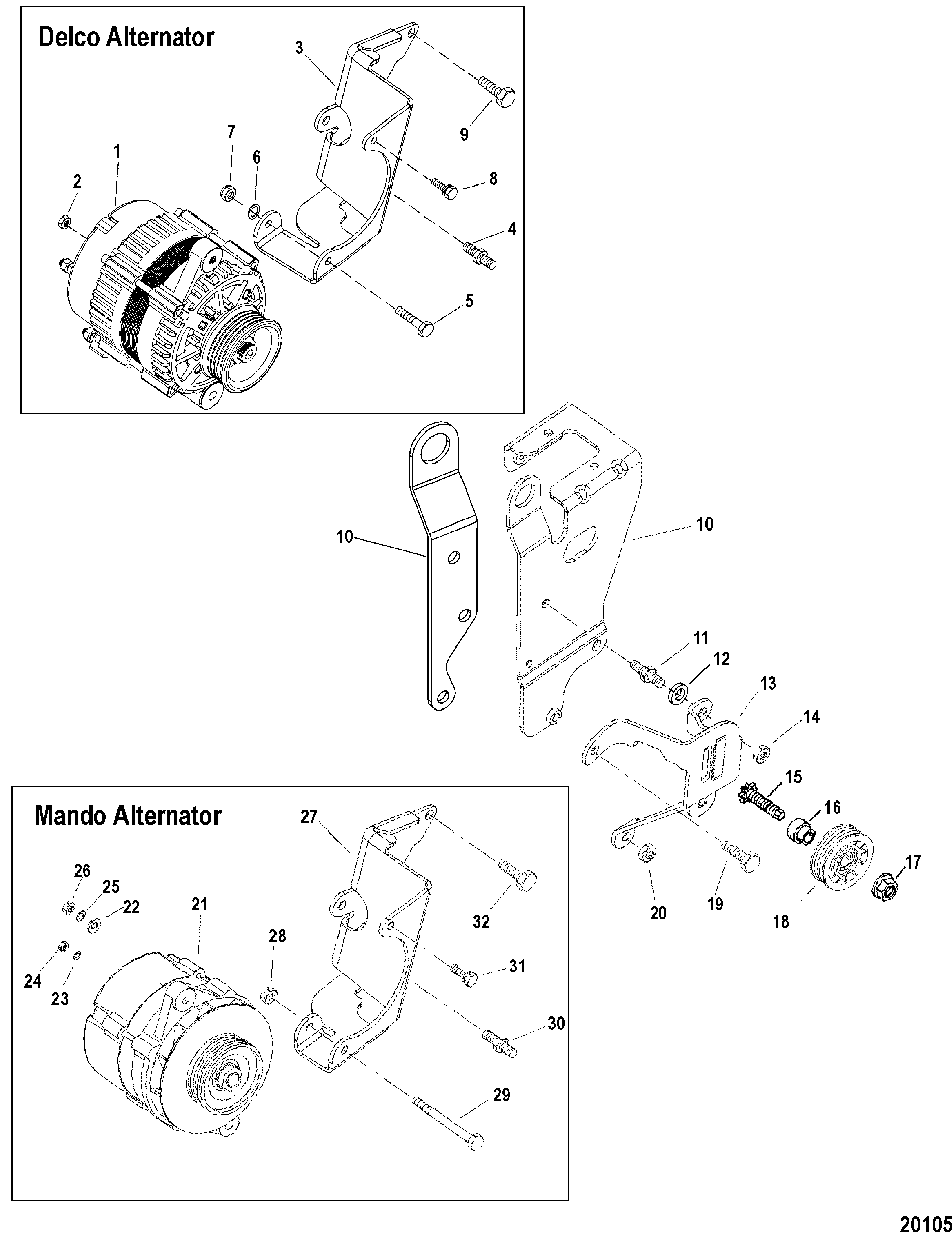

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Bracket
- Alternator(Mando)
- Closed Cooling System
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter and Rail
- Fuel Pump and Fuel Cooler
- Intake Manifold and Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump and Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 862031T1 | ALTERNATOR ASSEMBLY (65 Amp)(DELCO) | 1 | 862031T | (Non Serviceable - Replace Complete Assembly) | ||||
| 2 | 11-400212 | NUT, (M6) Stainless Steel | 2 | ||||||
| 3 | 862050T | BRACKET, Alternator | 1 | (Delco) | |||||
| 4 | 16-806591 | STUD, (7/16-14), Alternator & Seawater Pump Bracket | 1 | ||||||
| 5 | 10-828213 | SCREW, (.312-18 x 1.500) Hex Flange | 2 | ||||||
| 6 | 12-57792 | WASHER | 2 | ||||||
| 7 | 11-859119 | NUT, (.312-18) | 2 | ||||||
| 8 | 10-40001134 | SCREW, (M8 x 25) | 1 | ||||||
| 9 | 10-17965 | SCREW, (.437-14 x .70) | 2 | ||||||
| 10 | 861046 | BRACKET, Power Assisted Steering/Lifting Eye | 1 | (Mando Alternator) | |||||
| 10 | 807081T | BRACKET, LIFTING EYE | 1 | (Delco Alternator) | |||||
| 11 | 16-861174 | STUD (7/16-14 X 1 IN.) | 2 | ||||||
| 12 | 12-34567 | WASHER | 2 | ||||||
| 13 | 861045 | BRACKET, Idler | 1 | ||||||
| 14 | 11-29553 | NUT, (.437-14) | 2 | ||||||
| 15 | 43-8183812 | PINION STUD, (.437-20) Stainless Steel | 1 | ||||||
| 16 | 865193 | BUSHING | 1 | 818380T | |||||
| 17 | 11-859135 | 676-9-78116 | NUT, (.437-20) Brass/Nickel Plated | 1 | |||||
| 18 | 807757T | PULLEY ASSEMBLY, Idler - Black | 1 | ||||||
| 19 | 10-92913 | SCREW, (.437-14 x .750) | 1 | ||||||
| 20 | 11-29553 | NUT, (.437-14) | 1 | ||||||
| 21 | 807653T | ALTERNATOR ASSEMBLY | 1 | (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN) | |||||
| 22 | 12-96457 | WASHER, Phenolic (.27 x .81 x .062) | 1 | ||||||
| 23 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 24 | 11-79989 | NUT, (#10-24) Stainless Steel | 1 | ||||||
| 25 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 1 | ||||||
| 26 | 11-94330 | NUT, (.250-20) Brass | 1 | ||||||
| 27 | 861047 | BRACKET, Alternator | 1 | (Mando) | |||||
| 28 | 11-23161 | NUT, (.375-24) | 1 | ||||||
| 29 | 10-56743 | SCREW, (.375-24 x 3.125) | 1 | ||||||
| 30 | 16-806591 | STUD, (7/16-14), Alternator & Seawater Pump Bracket | 1 | ||||||
| 31 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | 1 | ||||||
| 32 | 10-17965 | SCREW, (.437-14 x .70) | 2 |
