454 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L058400 Thru 0M024999 - Closed Cooling System

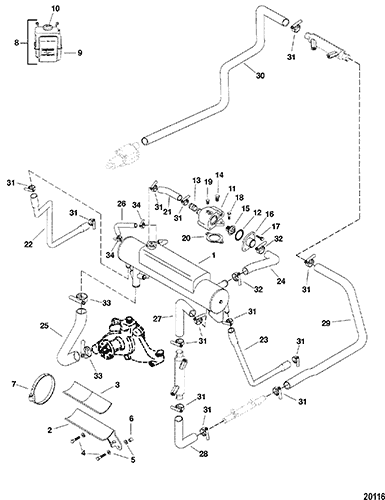

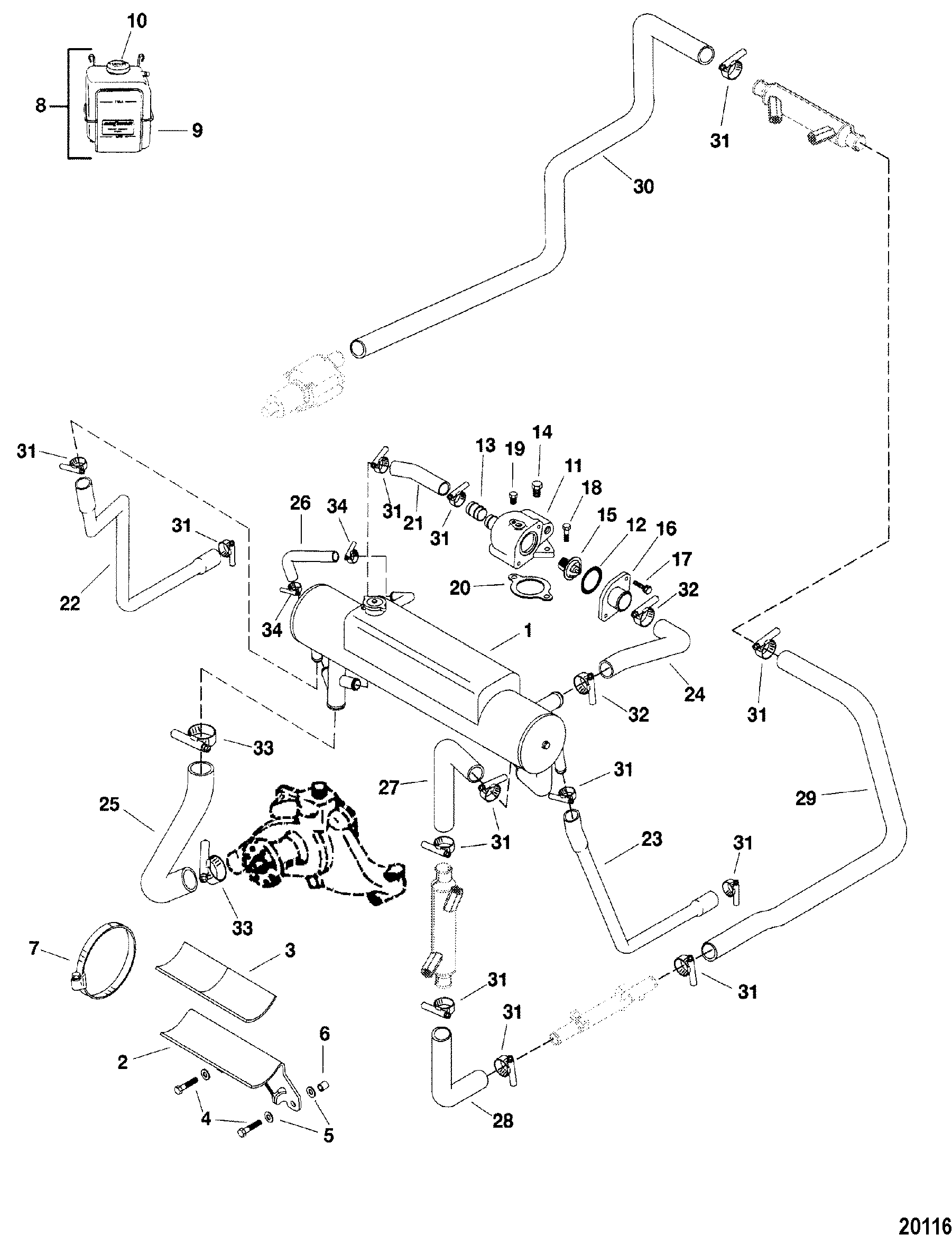

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Bracket
- Alternator(Mando)
- Closed Cooling System
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter and Rail
- Fuel Pump and Fuel Cooler
- Intake Manifold and Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump and Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | SEI # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807400A1 | HEAT EXCHANGER | 1 | ||||||
| NS | 8M0036623 | COVER, Heat Exchanger End | 2 | 814875 | |||||
| NS | 8M0036987 | GASKET | 2 | 27-803644 | |||||
| NS | 10-814877 | BOLT | 2 | ||||||
| NS | 8M0039163 | O-RING, Special | 2 | 25-814878 | |||||
| NS | 36-8148791 | CAP | 1 | ||||||
| 2 | 860092A1 | BRACKET ASSEMBLY, Heat Exchanger | 1 | ||||||
| 3 | 18431 | PAD | 2 | ||||||
| 4 | 10-91903 | SCREW, (.437-14 x 1.750) | 1 | ||||||
| 4 | 10-47461 | SCREW, (.437-14 x 1.00) | 1 | ||||||
| 5 | 12-31263 | WASHER | 4 | ||||||
| 6 | 23-905201 | SPACER, (.750 x .250) | 2 | ||||||
| 7 | 54-815504388 | CLAMP, Worm Gear | 2 | ||||||
| 8 | 71587A10 | RECOVERY KIT, Coolant | 1 | (COOLANT RECOVERY SYSTEM IS SOLD AS A COMPLETE KIT ONLY. THE COMPONENT PARTS CAN BE PURCHASED LOCALLY.) | |||||
| NS | 32-774572 | HOSE, (48.00 Inches Bulk) | 1 | ||||||
| 9 | 71587A11 | BOTTLE, Plastic | 1 | ||||||
| 10 | 72058 | CAP | 1 | ||||||
| 11 | 861188A1 | HOUSING ASSEMBLY, Thermostat | 1 | ||||||
| 12 | 25-8071341 | SEAL | 1 | 4 | |||||
| 13 | 23-52020 | SLEEVE, Hose | 1 | This Part is No Longer Available | |||||
| 14 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 1 | |||||
| 15 | 991551 | THERMOSTAT | 1 | ||||||
| 16 | 807075A1 | COVER | 1 | ||||||
| 17 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | 2 | ||||||
| 18 | 10-98794 | 602-98-102-35 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 2 | ||
| 19 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 20 | 27-530451 | GASKET | 1 | 4,5 | |||||
| 21 | 32-807271 | HOSE | 1 | ||||||
| 22 | 32-861306 | HOSE | 1 | ||||||
| 23 | 32-807141 | HOSE | 1 | ||||||
| 24 | 32-807137 | HOSE, Thermostat Housing To Heat Exchanger | 1 | ||||||
| 25 | 32-805138 | HOSE | 1 | No longer made, limited availability | |||||
| 26 | 32-99520 | HOSE | 1 | ||||||
| 27 | 32-807406 | HOSE | 1 | ||||||
| 28 | 32-807989 | HOSE | 1 | (454) No longer made, limited availability | |||||
| 28 | 32-807989 | HOSE | 1 | (502) No longer made, limited availability | |||||
| 29 | 32-808045 | HOSE, Fuel Cooler to Transmission Oil Cooler | 1 | ||||||
| 30 | 32-808044 | HOSE, Molded | 1 | ||||||
| 31 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | 6 | ||||||
| 32 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 2 | ||||||
| 33 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 34 | 54-815504212 | CLAMP, Worm Gear | 2 | ||||||
| NS | 19-8079923 | COVER, Hose Clamp End | AR | 3 | |||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502) |
