454 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L058400 Thru 0M024999 - Fuel Filter and Rail

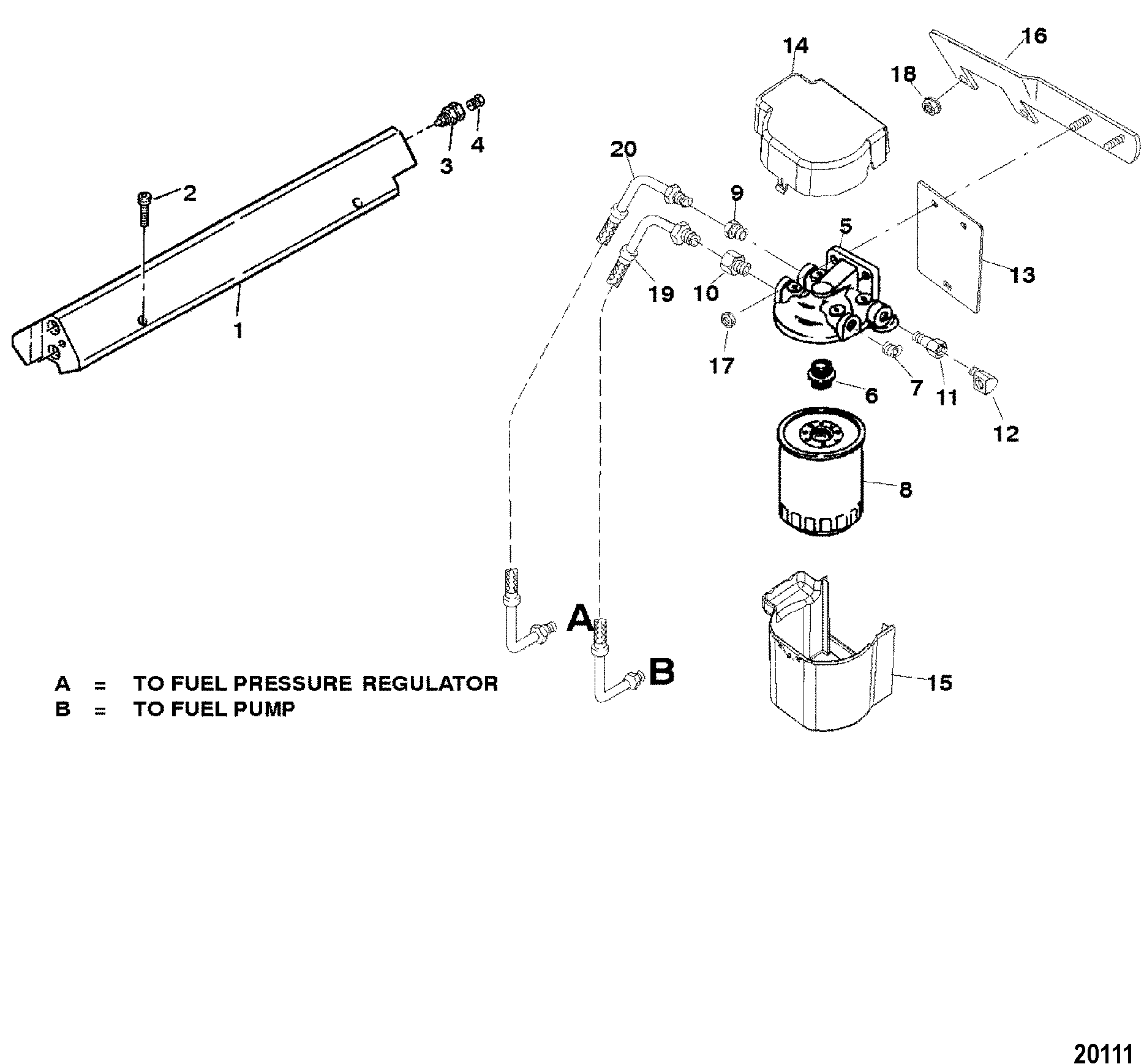

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Bracket
- Alternator(Mando)
- Closed Cooling System
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter and Rail
- Fuel Pump and Fuel Cooler
- Intake Manifold and Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump and Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861261T1 | FUEL RAIL | 1 | This Part is No Longer Available | |||||
| 2 | 10-805698 | SCREW, (1/4-20 x 1.75) (1/4-20 X 1-3/4 IN.) | 4 | ||||||
| 3 | 22-805408 | VALVE, Rail Pressure Service | 1 | ||||||
| 4 | 22-805515 | CAP, Shrader Valve - Brass | 1 | ||||||
| 5 | 89876A3 | BASE ASSEMBLY, Fuel Filter/Water Separator | 1 | ||||||
| 6 | 22-816133 | FITTING | 1 | ||||||
| 7 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 1 | ||||||
| 8 | 35-802893Q01 | FILTER, Fuel/Water Separating - Quicksilver Brand | 1 | 35-802893Q | |||||
| 9 | 22-33821 | CONNECTOR | 1 | ||||||
| 10 | 22-808003 | CONNECTOR | 1 | ||||||
| 11 | 22-807958 | FITTING, (1/4-18) | 1 | ||||||
| 12 | 22-46982 | FITTING, (90 Degree) | 1 | ||||||
| 13 | 807956T | INSULATOR, Back | 1 | ||||||
| 14 | 807806T | INSULATOR, Cap | 1 | This Part is No Longer Available | |||||
| 15 | 807807T | INSULATOR, Base | 1 | This Part is No Longer Available | |||||
| 16 | 807918T | BRACKET, Fuel Filter Base | 1 | ||||||
| 17 | 11-82670811 | NUT, (.312-24) | 2 | ||||||
| 18 | 11-860069 | NUT, (.375-16) | 2 | ||||||
| 19 | 32-807953 | LINE ASSEMBLY, Fuel | 1 | ||||||
| 20 | 32-8M0045997 | HOSE ASSEMBLY, Fuel Regulator to Filter | 1 | 32-807954T |
