454 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L058400 Thru 0M024999 - Thermostat Housing and Hoses

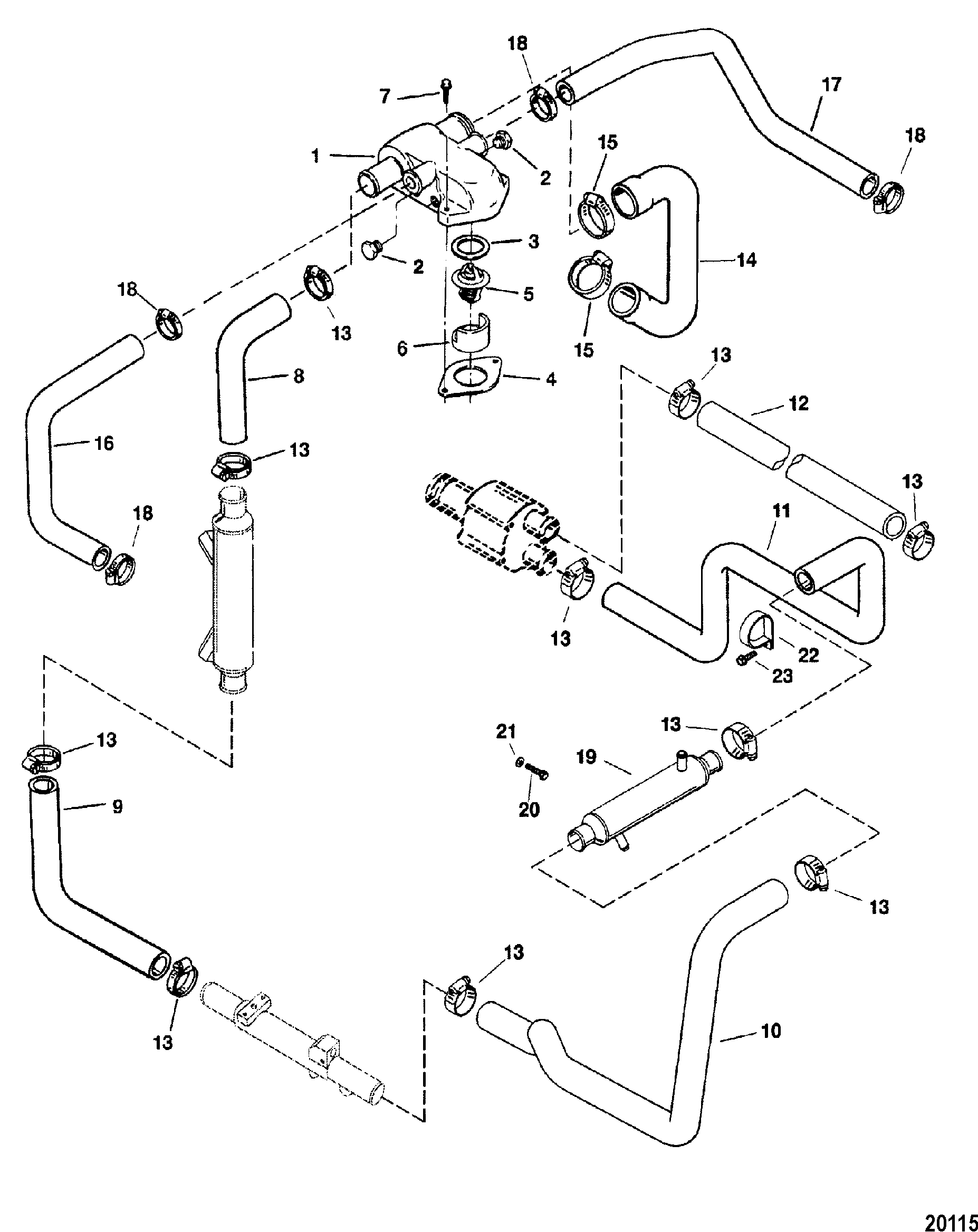

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Bracket
- Alternator(Mando)
- Closed Cooling System
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter and Rail
- Fuel Pump and Fuel Cooler
- Intake Manifold and Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump and Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0061381 | HOUSING ASSEMBLY, Thermostat | 1 | 861006A1 | |||||
| 2 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 2 | |||||
| 3 | 27-806871 | GASKET | 1 | 4,5 | |||||
| 4 | 27-530451 | GASKET | 1 | 4,5 | |||||
| 5 | 807252T2 | THERMOSTAT, 71°C (160°F) | 1 | ||||||
| 6 | 23-806922 | SLEEVE | 1 | ||||||
| 7 | 10-861429 | SCREW (3/8-16 X 2 IN.) | 2 | ||||||
| 8 | 32-807407 | HOSE | 1 | ||||||
| 9 | 32-807989 | HOSE | 1 | (454) No longer made, limited availability | |||||
| 9 | 32-8074061 | HOSE | 1 | (502) | |||||
| 10 | 32-808045 | HOSE, Fuel Cooler to Transmission Oil Cooler | 1 | ||||||
| 11 | 32-808044 | HOSE, Molded | 1 | ||||||
| 12 | 32-865672079 | HOSE, (96.00 Inches Bulk) | 1 | 32-1743579 | |||||
| 13 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 10 | ||||||
| 14 | 32-897181 | HOSE | 1 | ||||||
| 15 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 16 | 32-897491 | HOSE | 1 | ||||||
| 17 | 32-861318 | HOSE | 1 | ||||||
| 18 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | 4 | ||||||
| 19 | <861554T01 | COOLER | 1 | 861554T | |||||
| 20 | 10-816585 | SCREW, (.375-18 x .875) | 1 | Metal Cooler | |||||
| 20 | 8M2016106 | SCREW, (.312 x 1.25) | 1 | Composite Cooler (Included with 861554T02) | |||||
| 21 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
| 22 | 54-47715 | CLIP | 1 | ||||||
| 23 | 10-35765A1 | SCREW AND LOCKWASHER, (.312-18 x .625) (5/16-18 X 5/8 IN.) | 1 | ||||||
| NS | 19-8079923 | COVER, Hose Clamp End | AR | 3 | |||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502) |
