454 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L058400 Thru 0M024999 - Fuel Pump and Fuel Cooler

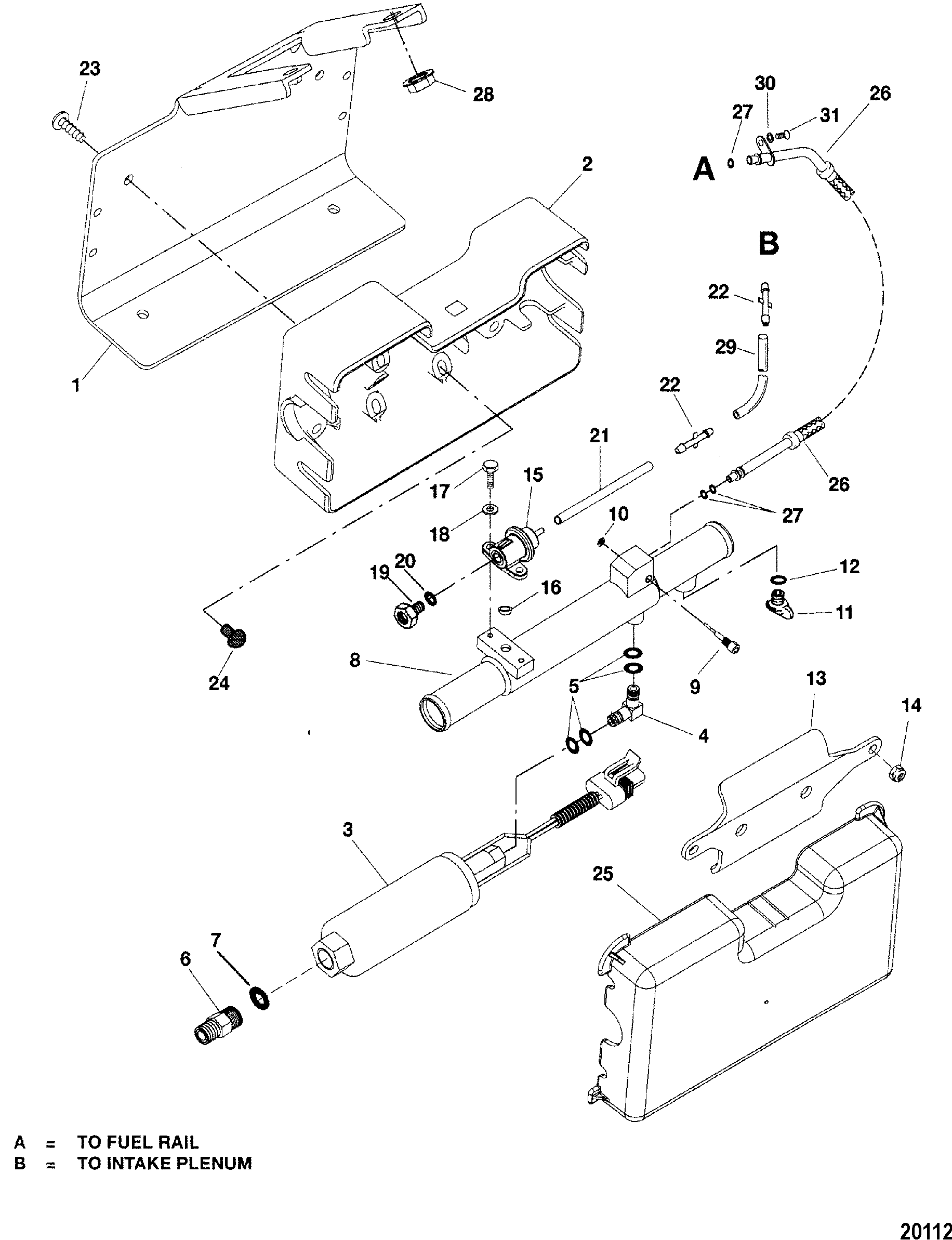

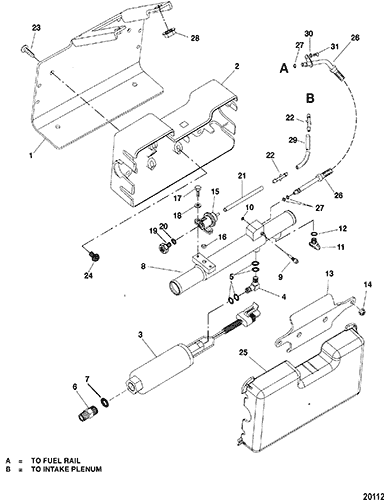

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Bracket
- Alternator(Mando)
- Closed Cooling System
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter and Rail
- Fuel Pump and Fuel Cooler
- Intake Manifold and Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump and Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807951T | BRACKET, Fuel Cooler | 1 | ||||||
| 2 | 807685T | INSULATOR | 1 | ||||||
| 3 | 861156A1 | PUMP ASSEMBLY (ELECTRIC) | 1 | This Part is No Longer Available | |||||
| 4 | 22-807783A1 | FITTING ASSEMBLY, 90 Degree | 1 | ||||||
| 5 | 25-805063 | O-RING, (.301 x .070) | 4 | 4,5 | |||||
| 6 | 22-808001A1 | FITTING ASSEMBLY | 1 | ||||||
| 7 | 25-805062 | O-RING, (.530 x .082) | 1 | 4,5 | |||||
| 8 | 861267A1 | COOLER KIT, Fuel | 1 | ||||||
| 9 | 10-866114 | SCREW, (.250-28) Special | 1 | 10-861303 | |||||
| 10 | 53-861414 | RING, Retaining | 1 | ||||||
| 11 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 1 | 22-806608A1 | |||||
| 12 | 25-32509 | O-RING, (.489 x .070) | 1 | 4,5 | |||||
| 13 | 807979T | BRACKET | 1 | ||||||
| 14 | 11-29598 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| 15 | 861126A1 | REGULATOR KIT, (43 PSI) | 1 | ||||||
| 16 | 35-805406 | FILTER | 1 | ||||||
| 17 | 10-852368 | SCREW, (#10-24 x .750) | 2 | ||||||
| 18 | 12-89302 | 602-98-262-49 | WASHER, (.203 x .406 x .040) | 2 | |||||
| 19 | 22-808002A1 | FITTING KIT | 1 | ||||||
| 20 | 12-36533 | WASHER, (.328 x .562 x .0312) Copper | 1 | ||||||
| 21 | 32-8M0063567 | HOSE, (52.00 Inches Bulk) | 1 | 32-80617379 | |||||
| 22 | 22-860273 | CONNECTOR | 2 | ||||||
| 23 | 10-808005 | SCREW, (.250-20 x .500) | 4 | ||||||
| 24 | 269011 | BUMPER, Rubber | 8 | ||||||
| 25 | 807930T01 | INSULATOR | 1 | 807930 | |||||
| 26 | 32-861729A1 | LINE ASSEMBLY, Fuel | 1 | This Part is No Longer Available | |||||
| 27 | 25-805063 | O-RING, (.301 x .070) | 4 | 4,5 | |||||
| 28 | 11-860069 | NUT, (.375-16) | 2 | ||||||
| 29 | 32-8M0063567 | HOSE, (52.00 Inches Bulk) | 1 | 32-80617379 | |||||
| 30 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 1 | ||||||
| 31 | 10-28668 | 602-98-102-13 | SCREW, (.250-20 x .875) Stainless Steel | 1 | |||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502) |
