454 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L058400 Thru 0M024999 - Intake Manifold and Intake Plenum

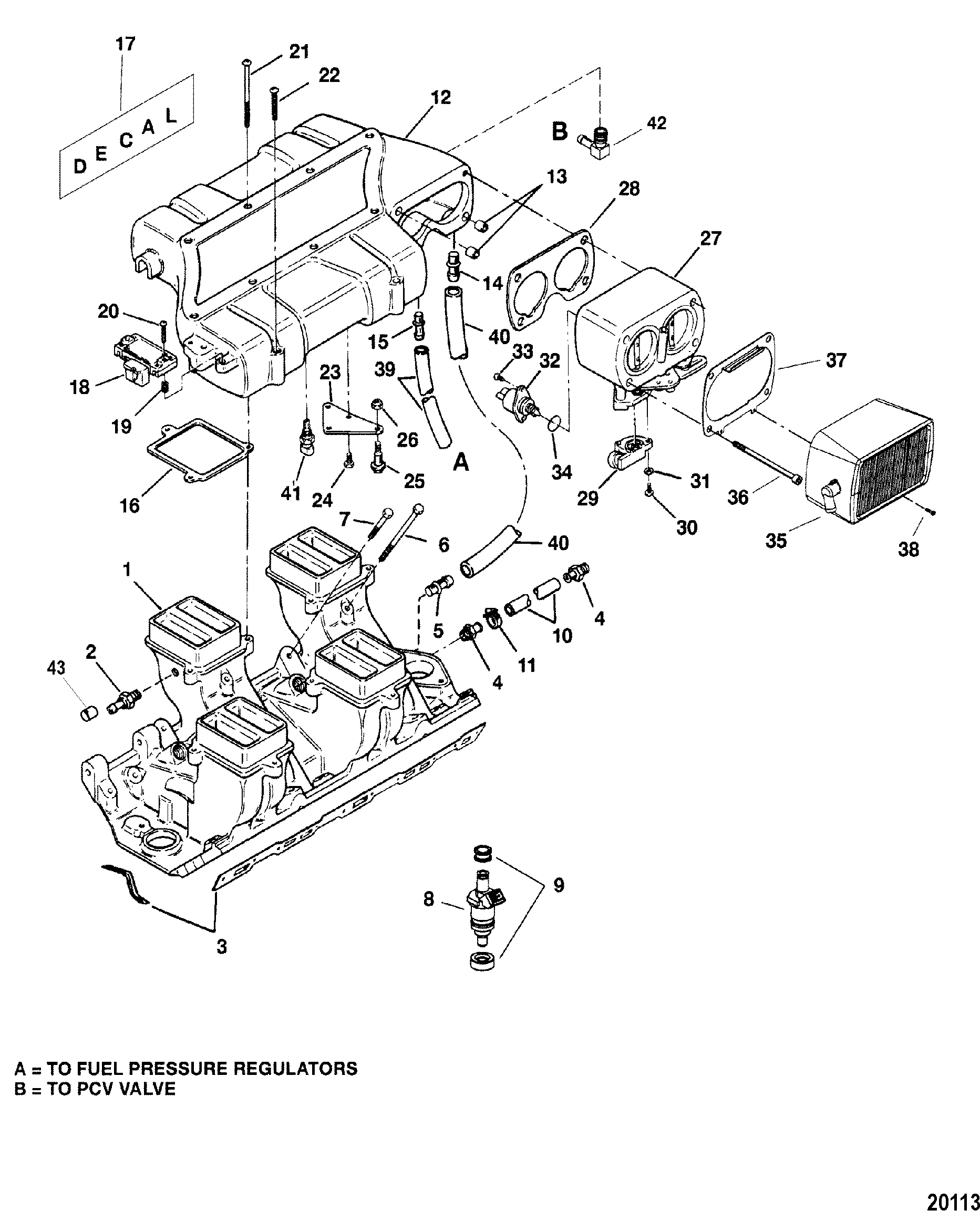

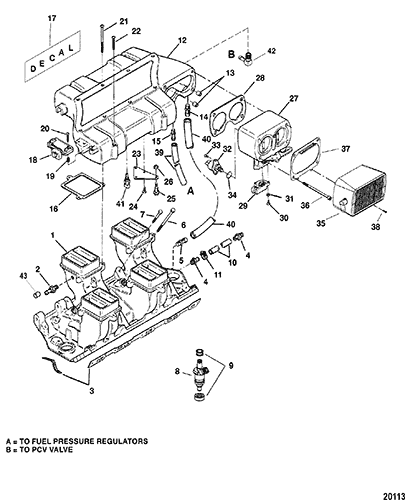

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Bracket
- Alternator(Mando)
- Closed Cooling System
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter and Rail
- Fuel Pump and Fuel Cooler
- Intake Manifold and Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump and Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861300A2 | MANIFOLD ASSEMBLY, Intake | 1 | ||||||
| 2 | 22-805691 | FITTING, (.250) Barb | 1 | ||||||
| 3 | 27-805403A1 | GASKET SET | 1 | 4,5 | |||||
| 4 | 22-806242 | CONNECTOR | 2 | ||||||
| 5 | 22-805519 | FITTING, Barb (.250 Inch) | 1 | ||||||
| 6 | 10-43749 | SCREW, (.375-16 x 5.750) | 4 | ||||||
| 7 | 10-862020 | SCREW (3/8-16 X 2 IN.) | 12 | ||||||
| 8 | 861260T | INJECTOR, Fuel | 8 | ||||||
| 9 | 25-851889 | O-RING | 16 | ||||||
| 10 | 32-8059871 | HOSE, Water Pump To Intake Manifold | 1 | ||||||
| 11 | 54-815504212 | CLAMP, Worm Gear | 2 | ||||||
| 12 | 805240A1 | PLENUM ASSEMBLY, Intake | 1 | This Part is No Longer Available | |||||
| 13 | 23-52698 | SLEEVE | 2 | ||||||
| 14 | 22-805519 | FITTING, Barb (.250 Inch) | 1 | ||||||
| 15 | 22-805598 | FITTING, (.1875) Barb | 1 | ||||||
| 16 | 27-805522A1 | GASKET SET | 1 | 4,5 | |||||
| 17 | 37-86131415 | DECAL | 1 | This Part is No Longer Available (454 MAG) | |||||
| 17 | 37-86131433 | DECAL | 1 | (502 MAG) | |||||
| 18 | 864856A1 | SENSOR ASSEMBLY | 1 | 805217A1 | |||||
| 19 | 26-805412 | SEAL | 1 | 4,5 | |||||
| 20 | 10-807120 | SCREW, (#10-24 x 1.00) | 2 | ||||||
| 21 | 10-805391 | SCREW, (.312-18 x 4.500) | 8 | ||||||
| 22 | 10-805390 | SCREW, (.312-18 x 2.250) | 4 | ||||||
| 23 | 805413T | BRACKET, Throttle Cable | 1 | This Part is No Longer Available | |||||
| 24 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 3 | ||||||
| 25 | 10-96430 | SHOULDER SCREW | 1 | ||||||
| 26 | 11-814101 | NUT, (.250-20) Stainless Steel | 1 | ||||||
| 27 | 860204A5 | THROTTLE BODY ASSEMBLY | 1 | ||||||
| 28 | 27-805396 | GASKET, Throttle Body | 1 | 4,5 | |||||
| 29 | 805226A1 | SENSOR ASSEMBLY, TPS | 1 | ||||||
| 30 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 31 | 12-28001 | WASHER, (.188 x .438 x .049) | 2 | This Part is No Longer Available | |||||
| 32 | 805224A1 | MOTOR ASSEMBLY, IAC | 1 | ||||||
| 33 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 34 | 25-808547 | O-RING | 1 | ||||||
| 35 | 807656A2 | FLAME ARRESTOR | 1 | ||||||
| 36 | 10-808040 | SCREW, (5/16-18 x 4.0) (5/16-18 X 4 IN.) | 4 | ||||||
| 37 | 807654T | BRACKET, Flame Arrestor | 1 | ||||||
| 38 | 10-808039 | SCREW, (#6-32) (#6-32) | 2 | ||||||
| 39 | 32-8M0063567 | HOSE, (52.00 Inches Bulk) | 2 | 32-80617379 | |||||
| 40 | 32-7381567 | TUBING, (42.00 Inches Bulk) | 1 | ||||||
| 41 | 805223T | SENSOR | 1 | ||||||
| 42 | 22-687271 | FITTING, (.250-18) 90 Degree - Brass (TO PCV VALVE) | 1 | ||||||
| 43 | 806899 | PLUG | 1 | ||||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502) |
