454 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L058400 Thru 0M024999 - Oil Pan and Oil Pump

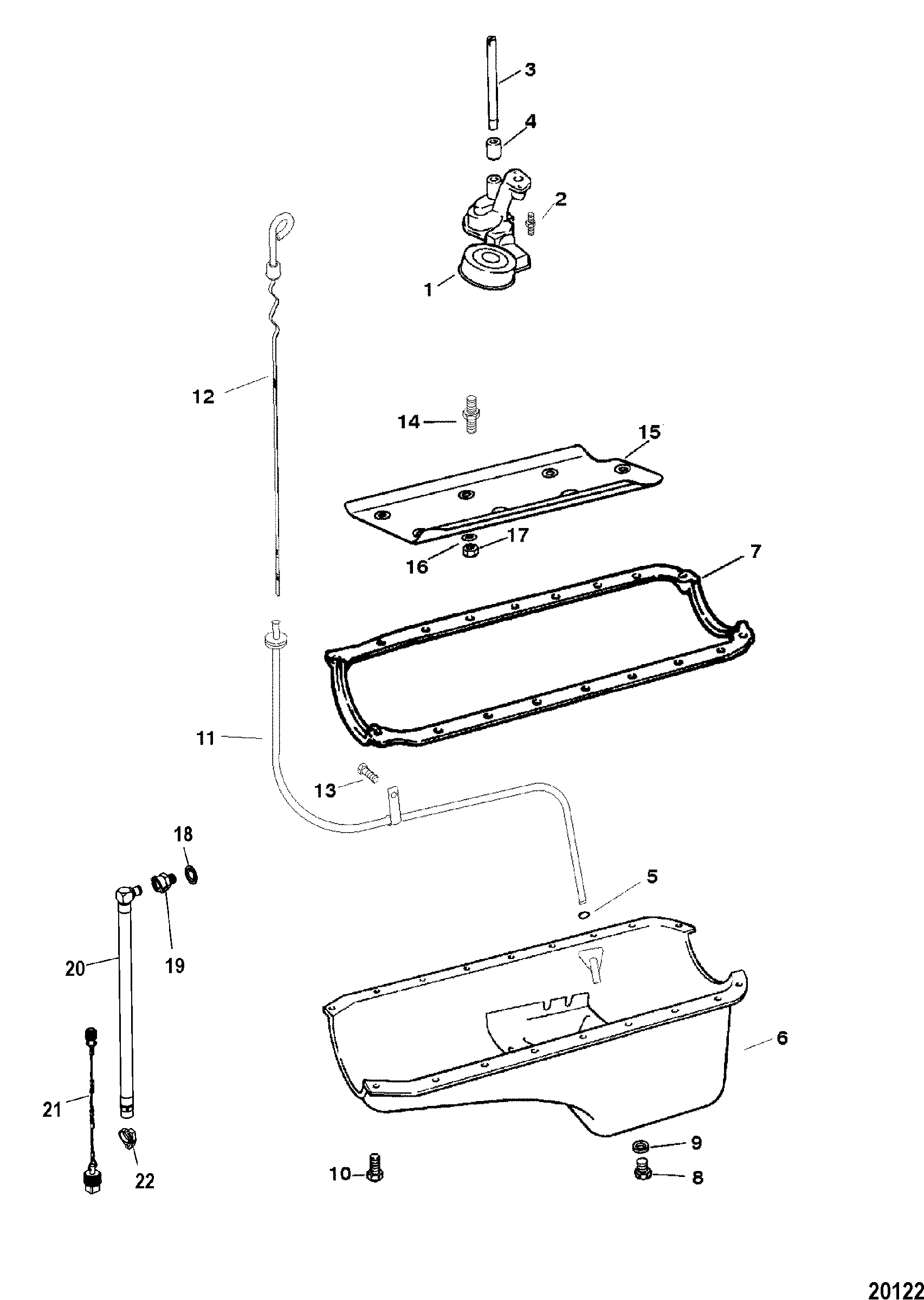

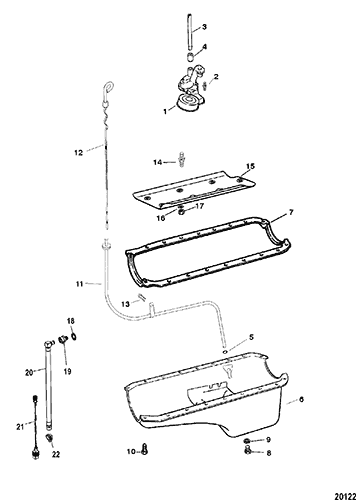

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Bracket
- Alternator(Mando)
- Closed Cooling System
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter and Rail
- Fuel Pump and Fuel Cooler
- Intake Manifold and Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump and Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 827643 | PUMP ASSEMBLY, Oil | 1 | ||||||
| 2 | 16-845599 | STUD | 1 | 16-49108 | |||||
| 3 | 14761 | SHAFT AND RETAINER | 1 | ||||||
| 4 | 23-36183 | RETAINER | 1 | ||||||
| 5 | 25-62704 | 602-95-260-50 | O-RING, (.362 x .103) | 1 | 4,5 | ||||
| 6 | 845668T | PAN ASSEMBLY, Oil | 1 | 850458 | |||||
| 7 | 27-845628 | GASKET | 1 | 27-811566 | 4,5 | ||||
| 8 | 10-809911001 | SCREW, Oil Drain (M12 x 1.75) | 1 | 10-809911 | |||||
| 9 | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Drain | 1 | 4,5 | |||
| 10 | 10-808707 | SCREW, (.312-18 x .625) (5/16-18 X 5/8 IN.) | 20 | ||||||
| 11 | 818631A6 | TUBE ASSEMBLY, Dipstick | 1 | ||||||
| 12 | 861942T9 | DIPSTICK | 1 | 805567T | |||||
| 13 | 10-35366 | SCREW, (.250-20 x .563) | 1 | ||||||
| 14 | 16-811683 | STUD, (.375-16/.500-12 x 5.500) | 4 | ||||||
| 15 | 843945T | BAFFLE | 1 | 811682 | |||||
| 16 | 12-49112 | WASHER | 5 | This Part is No Longer Available | |||||
| 17 | 11-845602 | NUT, (.375-16) | 5 | 11-850091 | |||||
| 18 | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Drain | 1 | ||||
| 19 | 22-862811 | FITTING, QUICK CONNECT | 1 | No longer made, limited availability | |||||
| 20 | 32-805505A4 | HOSE, Oil Drain | 1 | This Part is No Longer Available | |||||
| 21 | 862827 | TETHER ASSEMBLY | 1 | ||||||
| 22 | 54-863481 | CLAMP | 1 | ||||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502) |
