454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Crankshaft, Pistons, And Connecting Rods

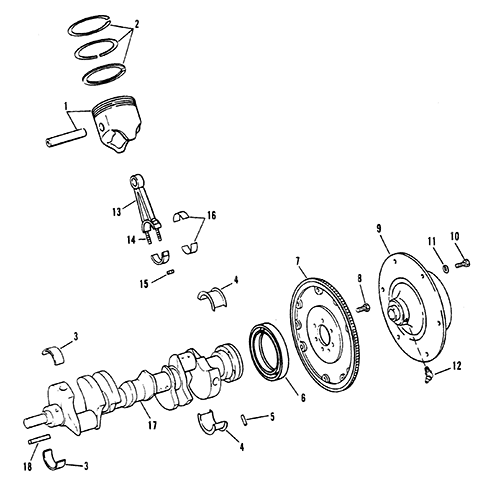

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 737-850477T | PISTON/PISTON PIN (STANDARD) | 8 | 737-827653 | This Part is No Longer Available CONTENTS OF GASKET SET [27-811547A94] | ||||
| 1 | 737-827654 | PISTON/PISTON PIN (.030 O.S.) | AR | This Part is No Longer Available | |||||
| 2 | 39-827651T | PISTON RING (STANDARD) | 8 | 39-827651 | |||||
| 2 | 39-850447 | PISTON RING (.030 O.S.) | AR | 39-827652 | |||||
| 3/4 | 23-818473001 | BEARING SET (STANDARD) | 1 | 23-818473 | |||||
| 3/4 | 23-818474 | BEARING SET (.001 U.S.) | AR | ||||||
| 3/4 | 23-818475 | BEARING SET (.002 U.S.) | AR | ||||||
| 3/4 | 818476001 | BEARING SET (.010 U.S.) | AR | 23-818476 | |||||
| 3/4 | 23-818477 | BEARING SET (.020 U.S.) | AR | ||||||
| 5 | 17-843378 | DOWEL PIN (1/4" DIA.) | 1 | 17-35312 | |||||
| 6 | 26-811554 | OIL SEAL | 1 | 1 | |||||
| 7 | 230-843374T1 | FLYWHEEL | 1 | 230-811561 | |||||
| 8 | 10-845757 | SCREW | 6 | 10-49845 | |||||
| 9 | 861523A9 | COUPLING | 1 | 18311A17 | |||||
| 10 | 10-14883 | SCREW | 6 | ||||||
| 11 | 12-20572 | WASHER | 6 | ||||||
| 12 | 22-49099 | GREASE FITTING | 2 | ||||||
| 13 | 614-9641T | CONNECTING ROD | 8 | 614-9641 | |||||
| 14 | 10-19234 | BOLT | 16 | ||||||
| 15 | 11-58056 | NUT | 16 | No longer made, limited availability | |||||
| 16 | 23-85726001 | BEARING UNIT (STANDARD) | 8 | 23-85726 | |||||
| 16 | 23-85727 | BEARING UNIT (PAIR - .001 U.S.) | AR | ||||||
| 16 | 23-85728 | BEARING UNIT (PAIR - .002 U.S.) | AR | This Part is No Longer Available | |||||
| 16 | 23-85691 | BEARING UNIT (PAIR - .010 U.S.) | AR | ||||||
| 16 | 23-85729 | BEARING UNIT (PAIR - .020 U.S.) | AR | ||||||
| 17 | 429-811552 | CRANKSHAFT | 1 | ||||||
| 18 | 28-845607 | KEY | 1 | 28-811558 |
