454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Wiring Harness And Electrical Components

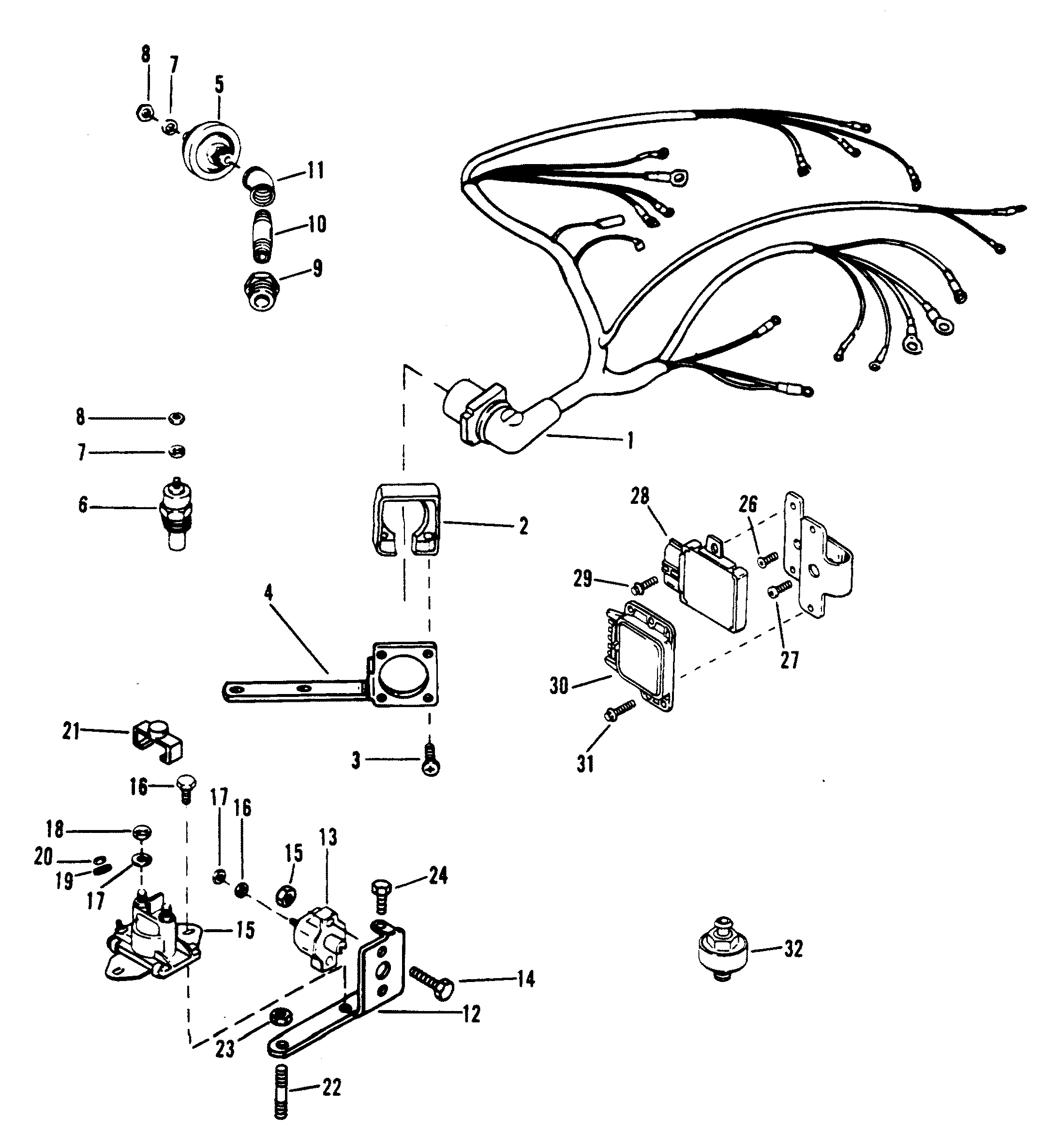

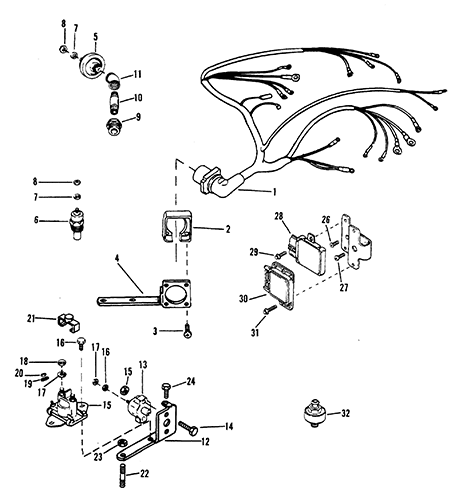

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-806744A2 | WIRING HARNESS | 1 | ||||||
| 2 | 26079A2 | PLATE ASSEMBLY | 1 | ||||||
| 3 | 10-15001 | SCREW | 4 | ||||||
| 4 | 805468T | MOUNTING BRACKET | 1 | This Part is No Longer Available | |||||
| 5 | 8M0068784 | OIL PRESSURE SENDER | 1 | 815425 | |||||
| 5 | 37293T | OIL PRESSURE SENDER (DUAL) | OPT. | 37293 | |||||
| 6 | 806490T | 676-9-42400 | WATER TEMPERATURE SENDER | 1 | 97257A1 | ||||
| 6 | 49734 | WATER TEMPERATURE SENDER (DUAL) | OPT. | 49734A1 | |||||
| 7 | 13-26996 | LOCKWASHER | 2 | ||||||
| 8 | 11-68219 | NUT | 2 | ||||||
| 9 | 22-48556 | BUSHING | 1 | ||||||
| 10 | 22-885153 | NIPPLE | 1 | 22-42554 | |||||
| 11 | 22-46932 | ELBOW | 1 | This Part is No Longer Available | |||||
| 12 | 899719T01 | MOUNTING BRACKET | 1 | 805368T | |||||
| 13 | 88-11178A01 | CIRCUIT BREAKER (50 AMP) | 1 | 88-806950 | |||||
| 14 | 10-57583 | SCREW (7/8") | 2 | ||||||
| 15 | 89-96158T | 620-3387M | 676-9-15112 | 700-72400 | 602-SW101 | STARTER SOLENOID | 1 | 89-96158 | |
| 16 | 10-805564 | SCREW | 2 | ||||||
| 17 | 13-26992 | LOCKWASHER (1/4) | 2 | ||||||
| 18 | 11-94330 | NUT (1/4-20) | 2 | ||||||
| 19 | 13-26996 | LOCKWASHER (#10) | 2 | ||||||
| 20 | 11-68219 | NUT (10-32) | 2 | ||||||
| 21 | 85-97861 | INSULATOR | 1 | ||||||
| 22 | 16-805459 | STUD | 1 | ||||||
| 23 | 11-46438 | NUT | 1 | ||||||
| 24 | 10-805565 | SCREW | 1 | ||||||
| 25 | 807763T | BRACKET | 1 | 806735T | |||||
| 26 | 10-806834 | SCREW (FLATHEAD) | 1 | no longer made, limited availability | |||||
| 27 | 10-806835 | SCREW | 1 | no longer made, limited availability | |||||
| 28 | 806745A01 | IGNITION CONTROL MODULE | 1 | 806745T1 | |||||
| 29 | 10-806826 | SCREW | 2 | ||||||
| 30 | 805443 | KNOCK CONTROL MODULE | 1 | 805443T | This Part is No Longer Available | ||||
| 31 | 10-806827 | SCREW | 2 | ||||||
| 32 | 805544T | 676-9-33500 | KNOCK SENSOR | 1 |
