454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Starter Motor (2 - 7-8" Diameter End Cap)

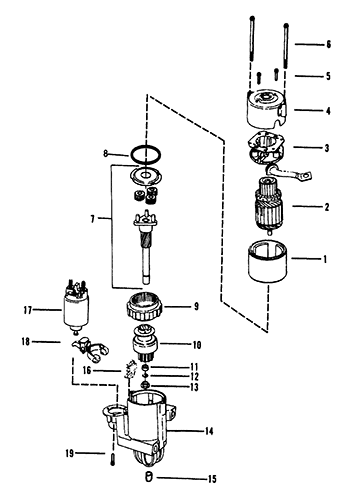

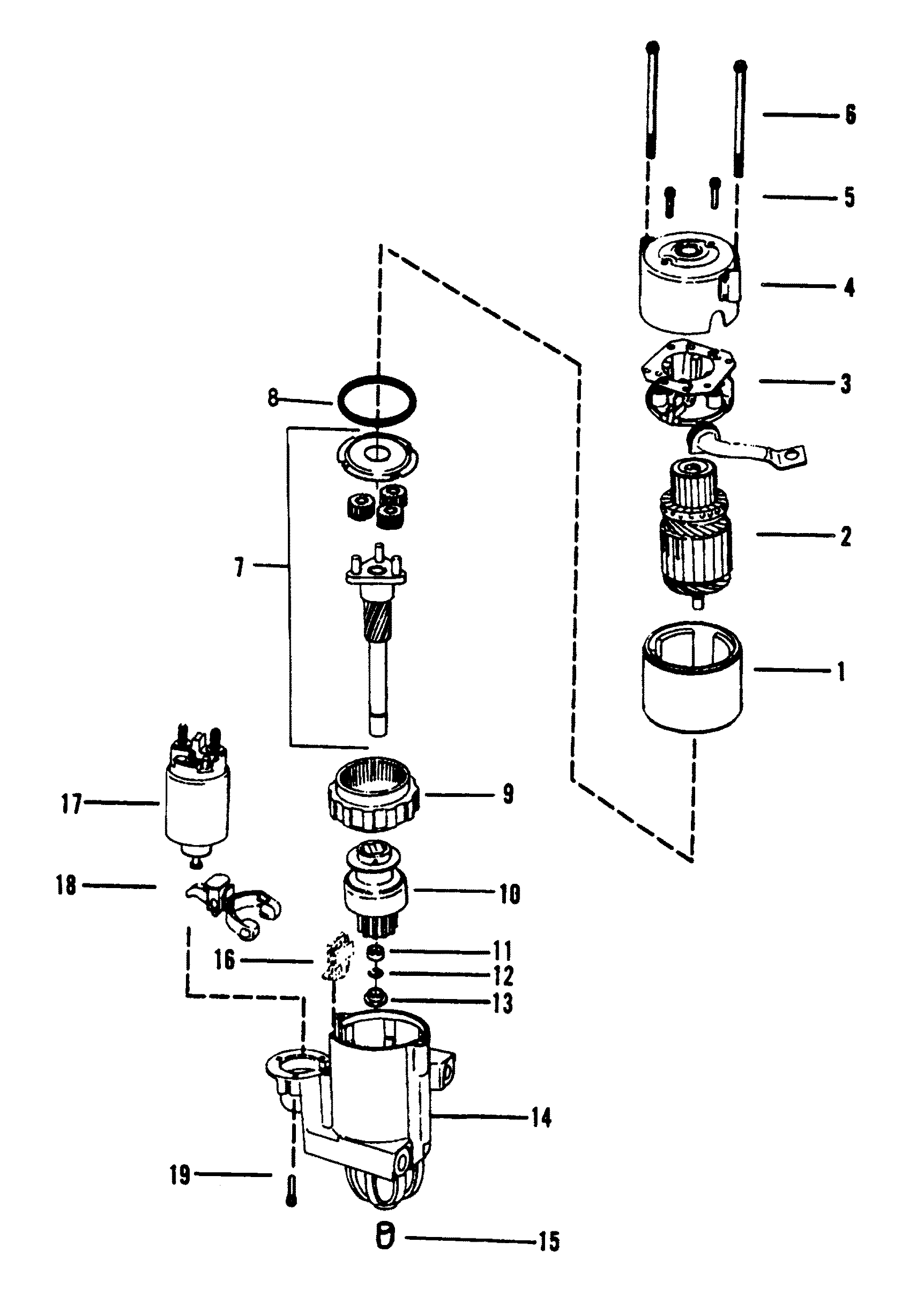

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | 620-5399M | 676-9-15907 | 602-10099MD | 602-10099HD | STARTER MOTOR | 1 | 50-806964A3 | NOT SOLD SEPARATELY | |
| 2 | N.S.S. | NOT SOLD SEPARATELY, ARMATURE | 1 | 8" [PG 260] | ||||||
| 3 | N.S.S. | NOT SOLD SEPARATELY, BRUSH HOLDER AND SPRING | 1 | 2-7/8" DIAMETER END CAP | ||||||
| 4 | N.S.S. | NOT SOLD SEPARATELY, FRAME | 1 | This part is not sold separate. | ||||||
| 5 | N.S.S. | NOT SOLD SEPARATELY, SCREW | 2 | This part is not sold separate. | ||||||
| 6 | N.S.S. | NOT SOLD SEPARATELY, THRU BOLT | 2 | This part is not sold separate. | ||||||
| 7 | N.S.S. | NOT SOLD SEPARATELY, SHAFT AND GEAR | 1 | This part is not sold separate. | ||||||
| 8 | N.S.S. | NOT SOLD SEPARATELY, GASKET | 1 | This part is not sold separate. | ||||||
| 9 | N.S.S. | NOT SOLD SEPARATELY, GEAR | 1 | This part is not sold separate. | ||||||
| 10 | N.S.S. | NOT SOLD SEPARATELY, DRIVE | 1 | This part is not sold separate. | ||||||
| 11 | 33291 | COLLAR | 1 | |||||||
| 12 | 53-33290 | RETAINING RING | 1 | |||||||
| 13 | N.S.S. | NOT SOLD SEPARATELY, THRUST COLLAR | 1 | This part is not sold separate. | ||||||
| 14 | 809459 | DRIVE HOUSING | 1 | This Part is No Longer Available | ||||||
| 15 | 23-814476 | BUSHING | 1 | This Part is No Longer Available | ||||||
| 16 | N.S.S. | NOT SOLD SEPARATELY, GROMMET | 1 | This part is not sold separate. | ||||||
| 17 | 809463A1 | 676-9-15125 | 700-72450 | SOLENOID | 1 | 8094631 | ||||
| 18 | N.S.S. | NOT SOLD SEPARATELY, LEVER | 1 | This part is not sold separate. | ||||||
| 19 | N.S.S. | NOT SOLD SEPARATELY, SCREW | 3 | This part is not sold separate. |
