454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Distributor And Ignition Components

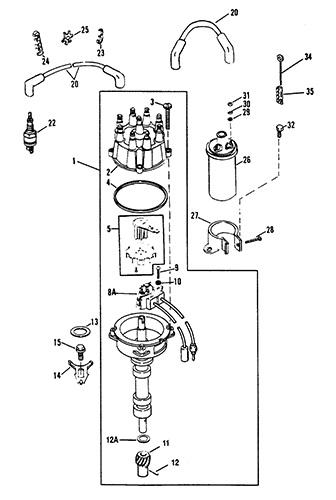

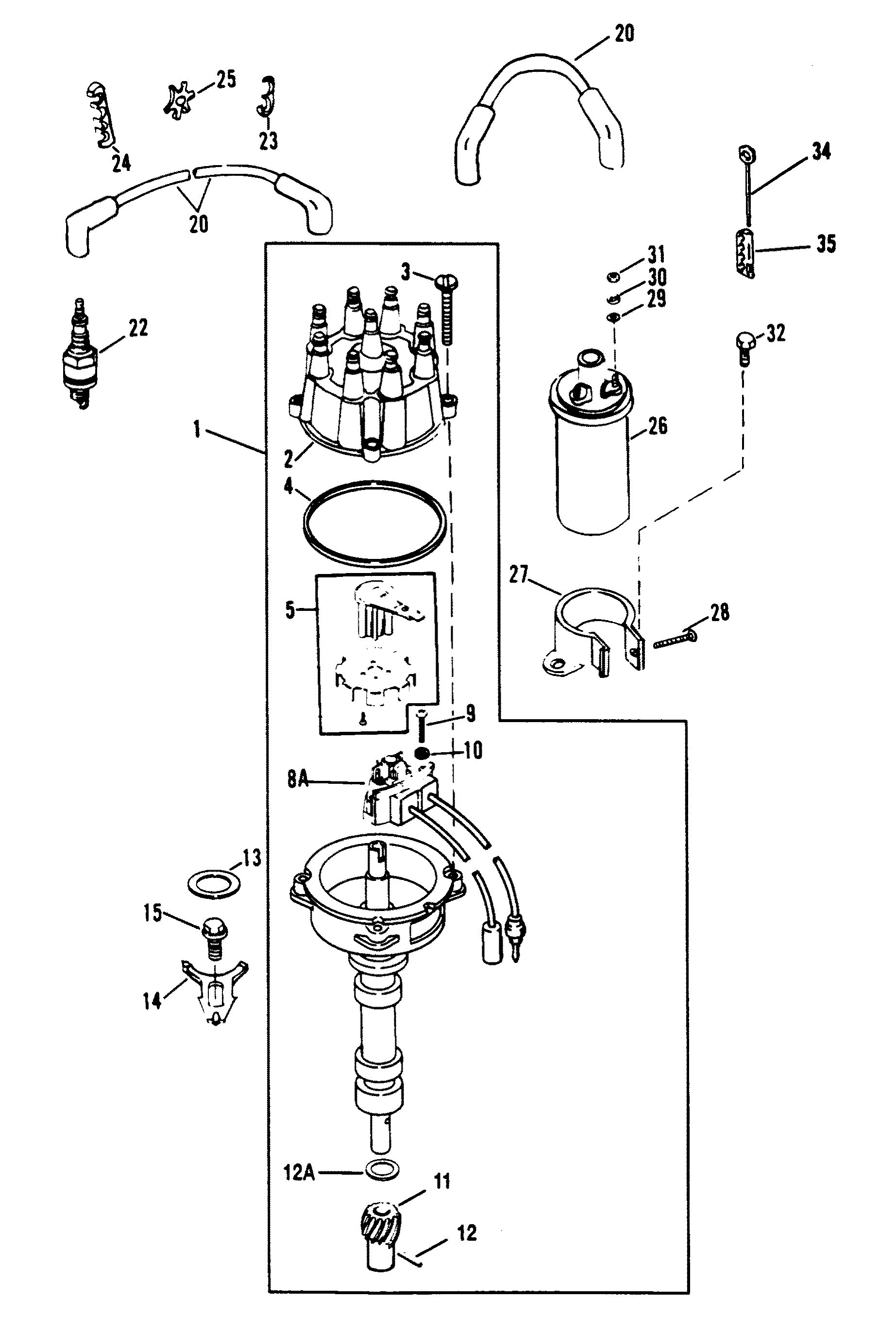

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805185A36 | DISTRIBUTOR | 1 | 805185A26 | |||||
| 2 | 805759T1 | CAP | 1 | 805759A2 | |||||
| 3 | 10-90926 | SCREW | 4 | ||||||
| 4 | 27-805760 | GASKET | 1 | ||||||
| 5 | 13524T1 | ROTOR/SENSOR WHEEL | 1 | 13524A5 | |||||
| 8A | 87-892150Q02 | SENSOR ASSEMBLY | 1 | 87-91019A6 | |||||
| 9 | 10-47618 | SCREW | 1 | This Part is No Longer Available | |||||
| 10 | 12-89302 | 602-98-262-49 | WASHER | 2 | 12-27736 | ||||
| 11 | 43-818807 | DRIVE GEAR | 1 | ||||||
| 12 | 17-47617 | PIN | 1 | ||||||
| 12A | 12-90931 | WASHER | 1 | ||||||
| 13 | 27-344863 | GASKET | 1 | 1 | |||||
| 14 | 52185 | CLAMP | 1 | ||||||
| 15 | 10-806681 | SCREW | 1 | ||||||
| 20 | 84-816608Q61 | SPARK PLUG WIRE KIT | 1 | 84-816608A61 | |||||
| 22 | 33-898264001 | SPARK PLUG | 8 | 33-59571 | |||||
| 23 | 54676 | RETAINER (2 WIRE) | 2 | ||||||
| 24 | 32783 | RETAINER (3 WIRE) | 2 | ||||||
| 25 | 32784 | RETAINER (4 WIRE) | 2 | ||||||
| 26 | 300-8M0079202 | IGNITION COIL | 1 | 392-805570A2 | |||||
| 27 | 65970T1 | BRACKET | 1 | ||||||
| 28 | 10-41408 | SCREW (1-1/2") | 1 | ||||||
| 30 | 13-26996 | LOCKWASHER | 2 | ||||||
| 31 | 11-68219 | NUT | 2 | ||||||
| 32 | 10-92913 | SCREW (3/4") | 2 | ||||||
| 34 | 16-90096A1 | STUD ASSEMBLY | 2 | ||||||
| 35 | 54-72821 | RETAINER | 2 |
