454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Cylinder Head And Rocker Cover

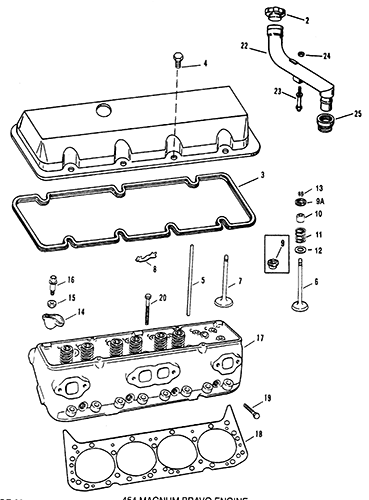

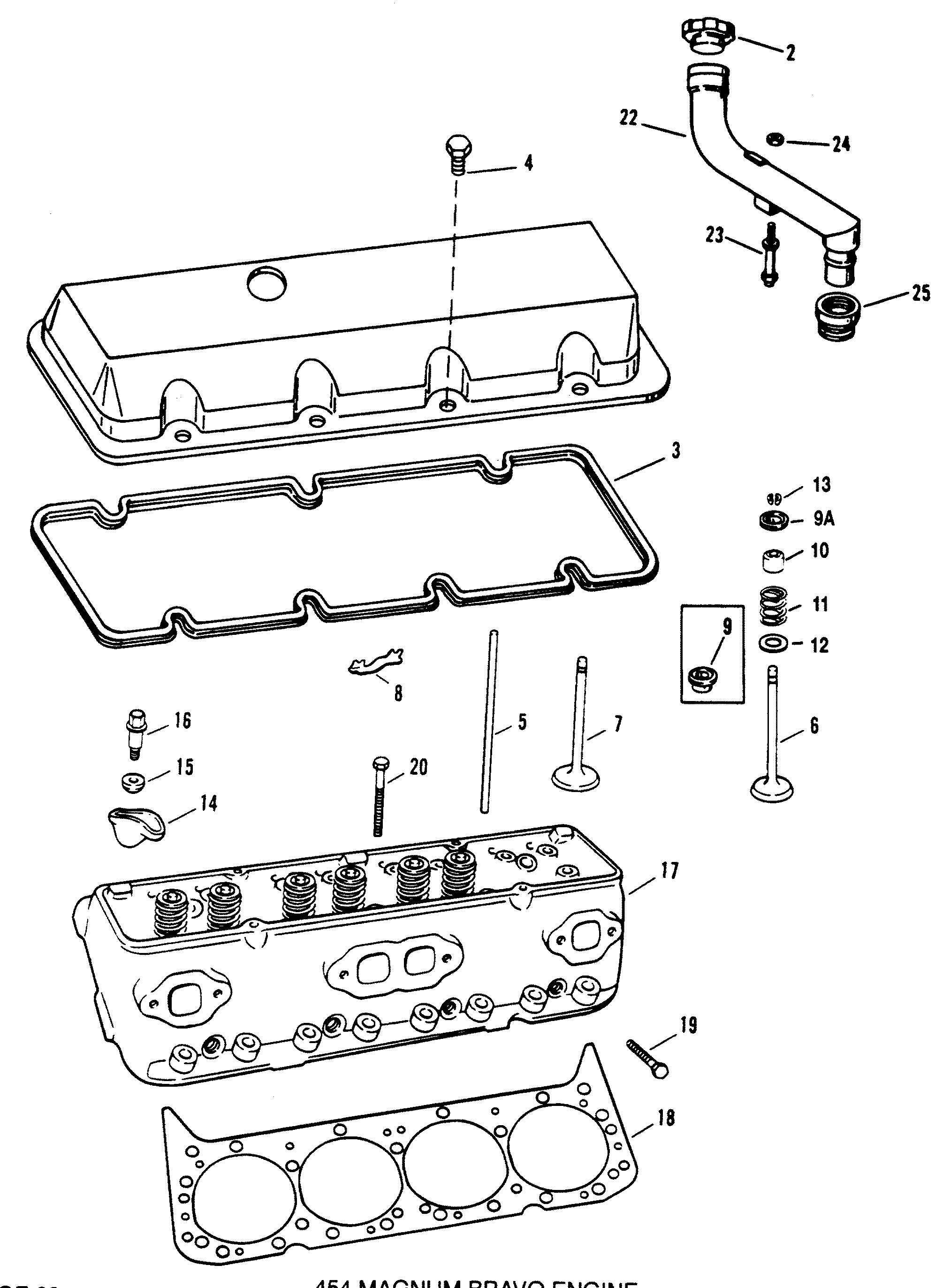

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 850462 | 602-21058 | ROCKER COVER | 2 | 811587 | ||||
| 2 | 36-811569 | CAP | 2 | ||||||
| 3 | 27-811588 | GASKET | 2 | 1 | |||||
| 4 | 10-811589 | BOLT | 14 | ||||||
| 5 | 811581 | PUSH ROD (INLET) | 8 | ||||||
| 5 | 811582 | PUSH ROD (EXHAUST) | 8 | This Part is No Longer Available | |||||
| 6 | 816962 | EXHAUST VALVE (STANDARD) | 8 | ||||||
| 6 | 816963T | EXHAUST VALVE (.015 O.S.) | AR | 816963 | This Part is No Longer Available | ||||
| 7 | 801877 | INLET VALVE (STANDARD) | 8 | ||||||
| 7 | 801878 | INLET VALVE (.015 O.S.) | AR | This Part is No Longer Available | |||||
| 8 | 845707 | GUIDE | 8 | 811586 | |||||
| 9 | 827644A1 | SEAL/CAP | 16 | 19325 | ONE PIECE DESIGN 1 | ||||
| 9A | 827644A1 | CAP | 16 | 827644 | TWO PIECE DESIGN | ||||
| 10 | 26-805622 | SEAL | 16 | TWO PIECE DESIGN | |||||
| 11 | 24-801879T | SPRING | 16 | 24-801879 | |||||
| 12 | 15-845669 | SHIM | 16 | 15-54531 | |||||
| 13 | 28-54530 | KEY | 32 | ||||||
| 14 | 811591T | ROCKER ARM | 16 | 811591 | |||||
| 15 | 850472 | BALL UNIT | 16 | 811592 | |||||
| 16 | 10-811593 | BOLT | 16 | ||||||
| 17 | 938-883493R1 | CYLINDER HEAD | 2 | 938-827495 | |||||
| 18 | 879150141 | GASKET | 2 | 27-811547 | 1 | ||||
| 19 | 10-8M0000463 | BOLT (2") | 8 | 10-49106 | |||||
| 20 | 10-8M0000482 | BOLT (4-1/8") | 24 | 10-49105 | |||||
| 22 | 36-805621A1 | OIL FILL TUBE | 1 | This Part is No Longer Available | |||||
| 23 | 16-805706 | STUD | 1 | ||||||
| 24 | 11-826709109 | NUT | 1 | 11-35045 | |||||
| 25 | 26-805622 | GROMMET | 1 |
