454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Shift Bracket

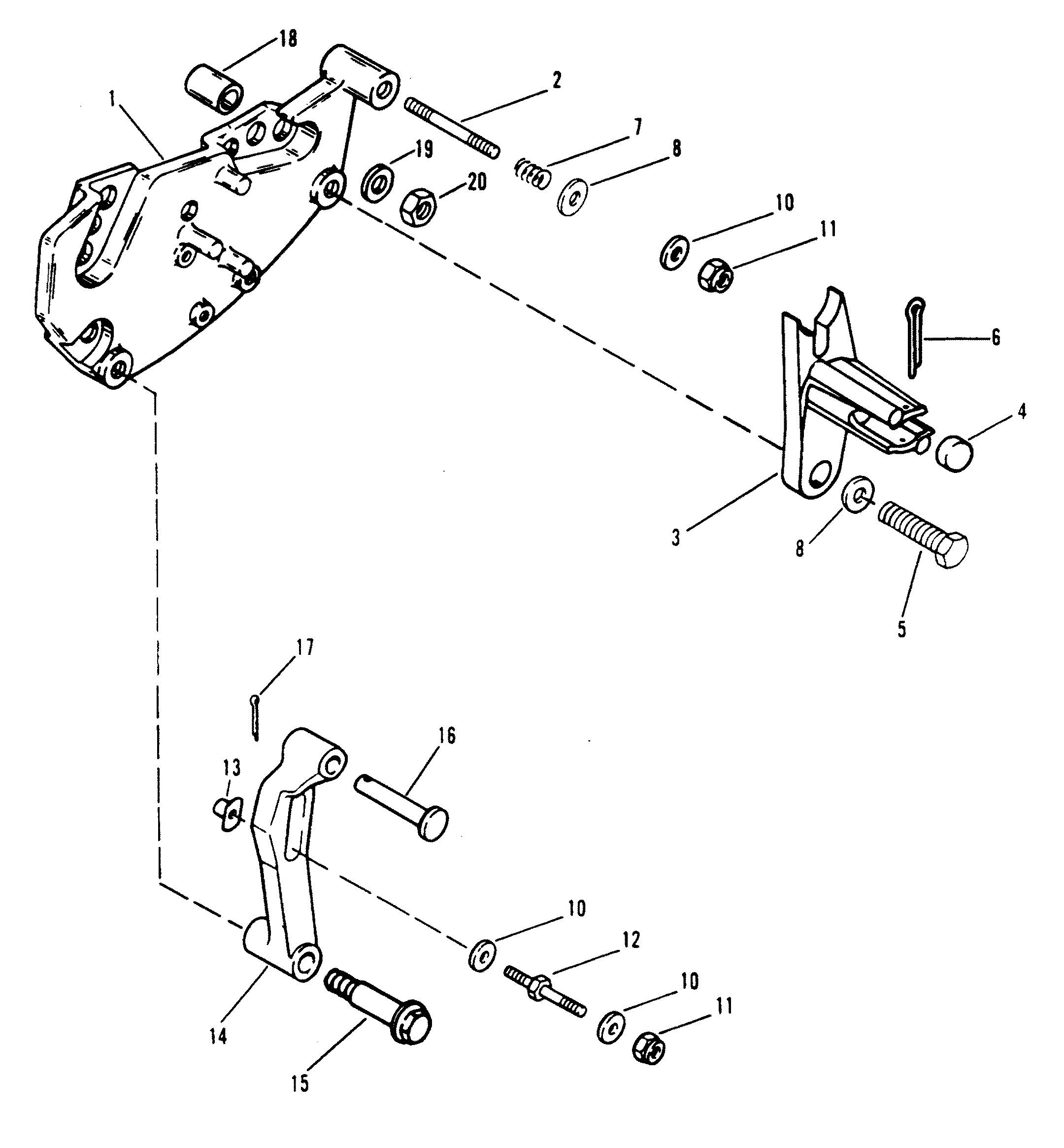

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | SHIFT BRACKET | 1 | 99237A10 | |||||
| 2 | 16-865154A02 | STUD | 1 | 16-987981 | |||||
| 3 | 865434A02 | RETAINER | 1 | 123811 | |||||
| 4 | 23-98828 | SPACER | 1 | ||||||
| 5 | 10-53167 | SCREW | 1 | ||||||
| 6 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
| 7 | 24-98880 | SPRING | 1 | ||||||
| 8 | 12-56720 | WASHER | 1 | ||||||
| 10 | 12-35462 | WASHER | 1 | ||||||
| 11 | 11-8267119 | NUT | 20 | 11-13438 | |||||
| 12 | 16-96112 | STUD | 1 | ||||||
| 13 | 11-63341 | TEE NUT | 1 | ||||||
| 14 | 863911A12 | SHIFT LEVER | 1 | 138981 | |||||
| 15 | 10-13743 | SHOULDER SCREW | 1 | ||||||
| 16 | 17-68402 | SHOULDER PIN | 4 | ||||||
| 17 | 18-210711 | COTTER PIN | 1 | 18-21071 | |||||
| 18 | 23-806981 | SPACER | 4 | 23-821302 | |||||
| 19 | 12-35462 | WASHER | 4 | ||||||
| 20 | 11-64015 | NUT | 3 |
