454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Weber Carburetor

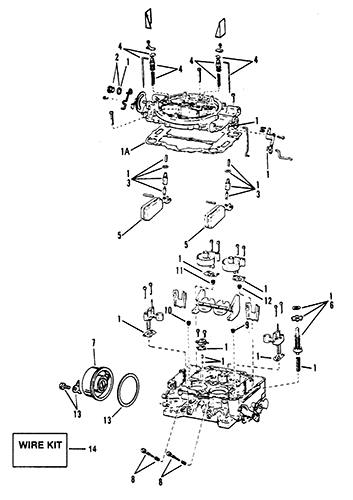

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 3310-806755A2 | CARBURETOR | 1 | This Part is No Longer Available | |||||
| 1 | 809064 | OVERHAUL KIT | 1 | ||||||
| 1A | 27-809077 | GASKET | 1 | ||||||
| 2 | 811533 | INLET FITTING KIT | 1 | ||||||
| 3 | 811534 | INLET NEEDLE & SEAT KIT | 2 | ||||||
| 4 | 809068 | METERING ROD KIT | 1 | This Part is No Longer Available | |||||
| 5 | 811536T | FLOAT | 2 | 811536 | |||||
| 6 | 808701 | PUMP PLUNGER KIT | 1 | No longer made, limited availability | |||||
| 7 | 809066 | ELECTRIC CHOKE | 1 | ||||||
| 8 | 811539 | IDLE MIXTURE SCREW KIT | 2 | ||||||
| 9/10 | 809070 | METERING JET-PRIMARY | 2 | This Part is No Longer Available | |||||
| 11/12 | 811657 | METERING JET-SECONDARY | 2 | This Part is No Longer Available | |||||
| 13 | 809095 | CHOKE RETAINER KIT | 1 | This Part is No Longer Available | |||||
| 14 | 84-809471A1 | WIRE KIT | 1 | This Part is No Longer Available | |||||
| - | 809620 | ALTITUDE METERING KIT | 1 | This Part is No Longer Available |
