350 Mag MPI Alpha-Bravo - Serial 0L331599 Thru 0M299999 - Cylinder Head And Rocker Cover

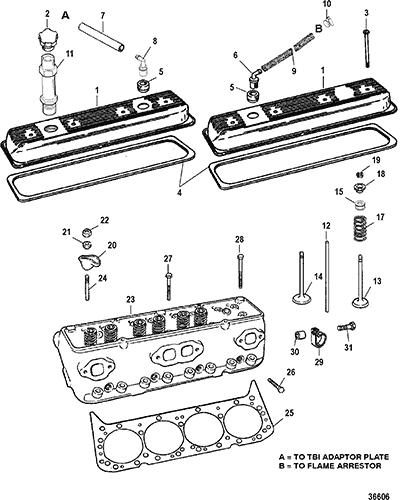

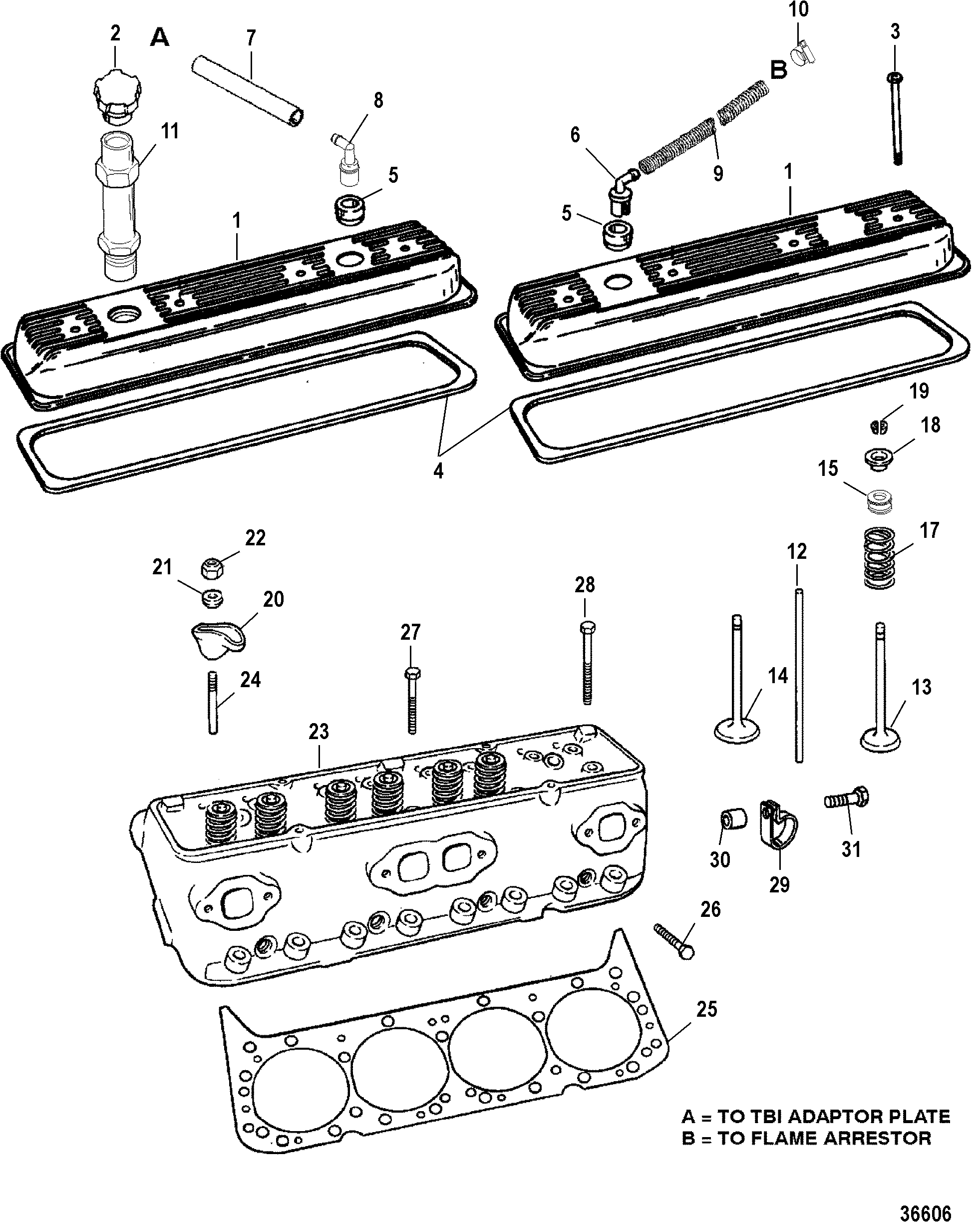

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rails
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Sendors And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Throttle Body And Flame Arrestor
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 809995 | COVER, Rocker | 1 | With Oil Fill Hole | |||||
| 1 | 809996 | COVER, Rocker | 1 | Without Oil Fill Hole | |||||
| 2 | 36-18710002 | CAP | 1 | 36-187101 | |||||
| 3 | 10-17344 | SCREW | 8 | ||||||
| 4 | 27-17467 | 676-9-61305 | 700-30357 | GASKET | 2 | 3 | |||
| 5 | 25-52188 | GROMMET | 2 | ||||||
| 6 | 97850T | ELBOW, 90 Degree | 1 | 97850 | |||||
| 7 | 32-8M0062321 | HOSE, (33.00 Inches Bulk) | 1 | 32-86197763 | |||||
| 8 | 8M2017060 | VALVE, PCV | 1 | 21-861476 | |||||
| 9 | 32-8M0062669 | TUBING, (24.00 Inches Bulk) | 1 | 32-807498240 | |||||
| 10 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 2 | ||||||
| 11 | 807688T | TUBE | 1 | ||||||
| 12 | 173391 | PUSH ROD | 16 | ||||||
| 13 | 8243171 | VALVE | 8 | Standard | |||||
| 13 | 8243181 | VALVE | AR | .030 Oversize | |||||
| 14 | 809992 | VALVE, Intake | 8 | ||||||
| 15 | 26-976641 | SEAL, Intake Valve | 8 | 3 | |||||
| 16 | 26-804507 | SEAL, Exhaust Valve | 8 | 3 | |||||
| 17 | 24-483471 | SPRING | 16 | ||||||
| 18 | 483481 | CAP | 16 | ||||||
| 19 | 28-547971 | KEY | 32 | ||||||
| 20 | 35329 | ARM KIT | 16 | ||||||
| 21 | 35331 | BALL, Rocker Arm | 16 | ||||||
| 22 | 11-34516 | NUT | 16 | ||||||
| 23 | 938-803860T | CYLINDER HEAD ASSEMBLY | 2 | ||||||
| 24 | 16-34522 | STUD | AR | .003 Oversize | |||||
| 24 | 16-34521 | STUD | AR | This Part is No Longer Available .013 Oversize | |||||
| 25 | 75611001 | GASKET | 2 | 27-75611 | 3 | ||||
| 26 | 10-11968 | SCREW, (.437-14 x 1.750) | 16 | ||||||
| 27 | 10-119671 | SCREW, (.437-14 x 3.00) | 4 | ||||||
| 28 | 10-11966 | SCREW, (.437-14 x 3.750) | 14 | ||||||
| 29 | 54-92850 | CLAMP | 1 | ||||||
| 30 | 23-91034 | SPACER, (.380 x 1.00 x .530) | 1 | No longer made, limited availability | |||||
| 31 | 10-37612 | SCREW, (.375-16 x 1.250) | 1 | ||||||
| - | 27-75611A98 | GASKET SET, Engine Overhaul | 1 |
