350 Mag MPI Alpha-Bravo - Serial 0L331599 Thru 0M299999 - Intake Manifold And Fuel Rails

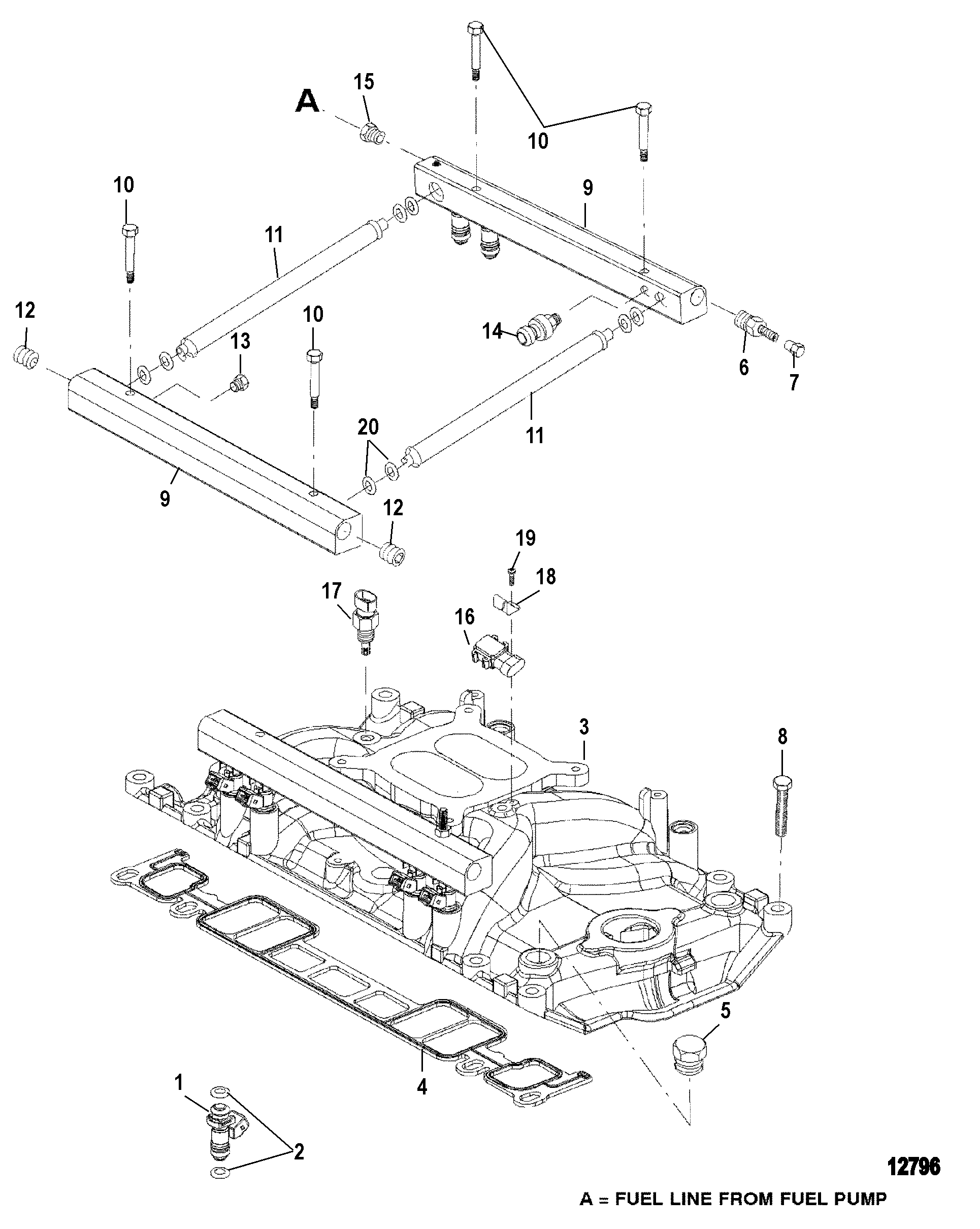

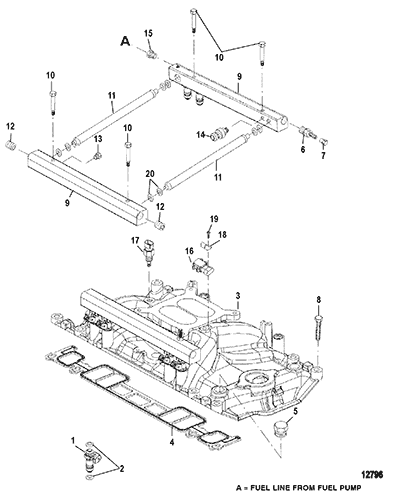

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rails
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Sendors And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Throttle Body And Flame Arrestor
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861260T | 676-9-33302 | INJECTOR, Fuel | 8 | |||||
| 2 | 25-851889 | O-RING | 16 | 3 | |||||
| 3 | 8M0061387 | MANIFOLD ASSEMBLY, Intake | 1 | 860373A4 | |||||
| 4 | 27-807473A1 | 676-9-61213 | GASKET SET | 1 | 3 | ||||
| 5 | 22-860075 | PLUG, Pipe (.500-14) | 2 | ||||||
| 6 | 22-805408 | VALVE, Rail Pressure Service | 1 | ||||||
| 7 | 22-805515 | CAP, Shrader Valve - Brass | 1 | ||||||
| 8 | 10-808010 | SCREW, (.312-18 x 1.375) | 8 | ||||||
| 9 | 861804T1 | FUEL RAIL | 2 | ||||||
| 10 | 10-86885 | SCREW, (.250-20 x 1.500) Stainless Steel | 4 | ||||||
| 11 | 861805 | TUBE, Fuel Cross Over | 2 | ||||||
| 12 | 22-73379 | 700-22379 | PLUG, (.250-18) | 2 | |||||
| 13 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 14 | 881879A8 | SENSOR, Fuel Pressure | 1 | 807399T | |||||
| 15 | 22-33821 | CONNECTOR | 1 | ||||||
| 16 | 861249A1 | 676-9-33600 | SENSOR ASSEMBLY, Manifold Air Pressure | 1 | |||||
| 17 | 805223T | 676-9-42406 | SENSOR | 1 | |||||
| 18 | 861198 | CLIP | 1 | ||||||
| 19 | 10-806826 | SCREW, (#8-32 x .250) | 1 | ||||||
| 20 | 25-862053 | O-RING | 8 | ||||||
| - | 27-75611A98 | GASKET SET, Engine Overhaul | 1 |
