350 Mag MPI Alpha-Bravo - Serial 0L331599 Thru 0M299999 - Pistons And Connecting Rods

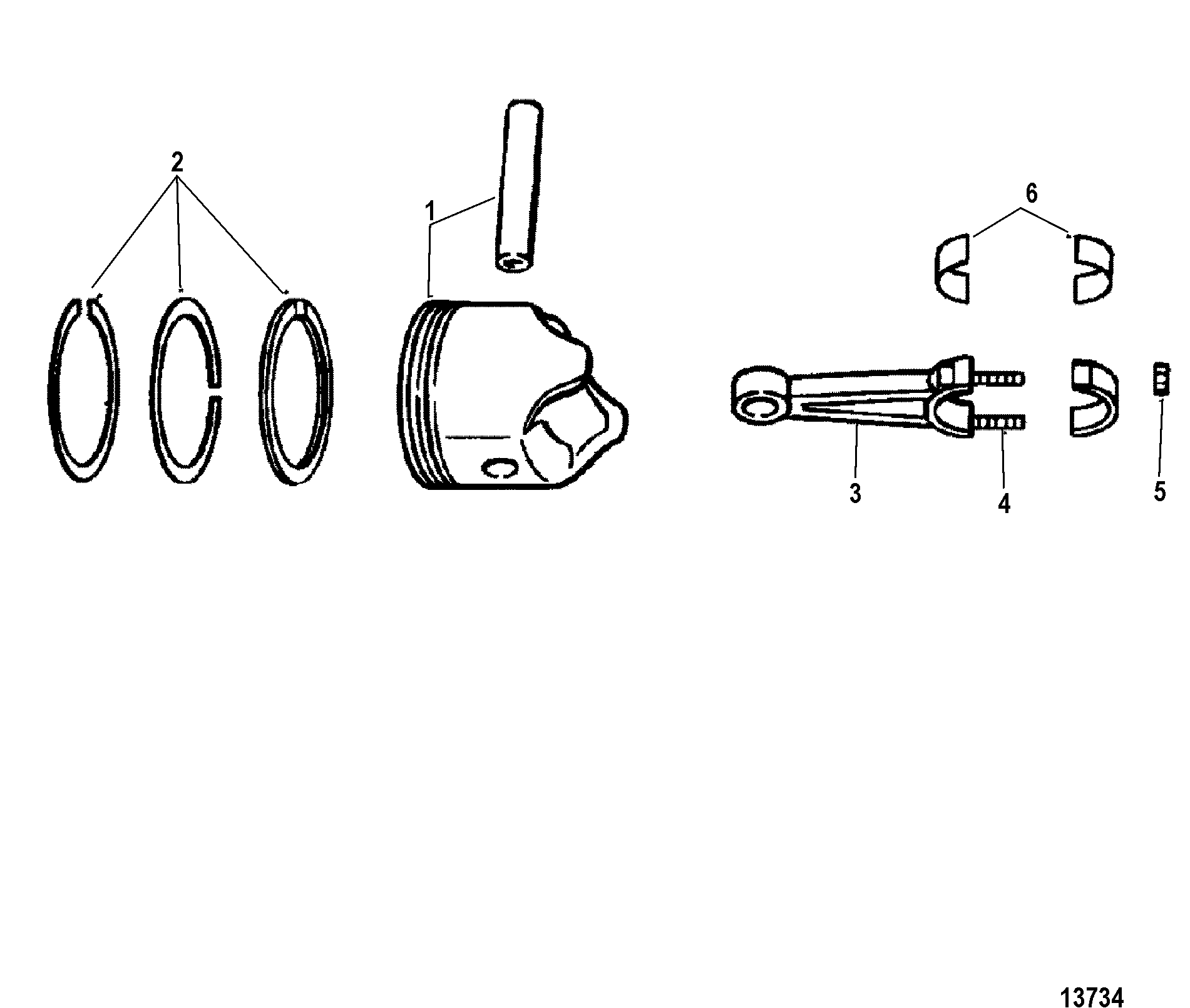

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rails
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Sendors And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Throttle Body And Flame Arrestor
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 735-835001T | PISTON ASSEMBLY | 8 | Standard | |||||
| 1 | 735-835002T | PISTON ASSEMBLY | AR | .5mm Oversize | |||||
| 2 | 39-8018611 | RING SET | 8 | 39-801861T1 | Standard | ||||
| 2 | 39-835000 | RING SET, Piston - .5mm Oversize | AR | ||||||
| 3 | 614-8164T | CONNECTING ROD ASSEMBLY | 8 | ||||||
| 4 | 10-85802 | SCREW, (.375-24 x Special) | 16 | This Part is No Longer Available | |||||
| 5 | 11-37493 | NUT, (.375-24) | 16 | ||||||
| 6 | 23-85701 | BEARING, Pair - Standard | 8 | ||||||
| 6 | 23-85702 | BEARING, Pair - .001 Undersize | AR | ||||||
| 6 | 23-85703 | BEARING, Pair - .002 Undersize | AR | ||||||
| 6 | 23-85704 | BEARING, Pair - .010 Undersize | AR | ||||||
| 6 | 23-85705 | BEARING, Pair - .020 Undersize | AR |
