350 Mag MPI Alpha-Bravo - Serial 0L331599 Thru 0M299999 - Throttle Body And Flame Arrestor

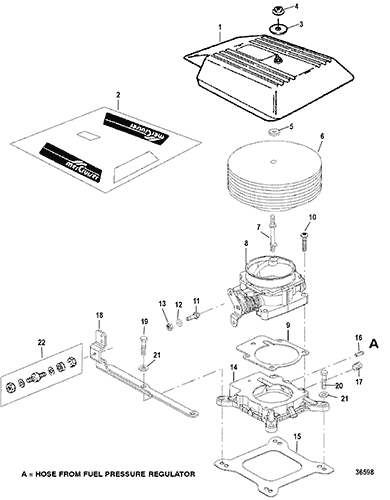

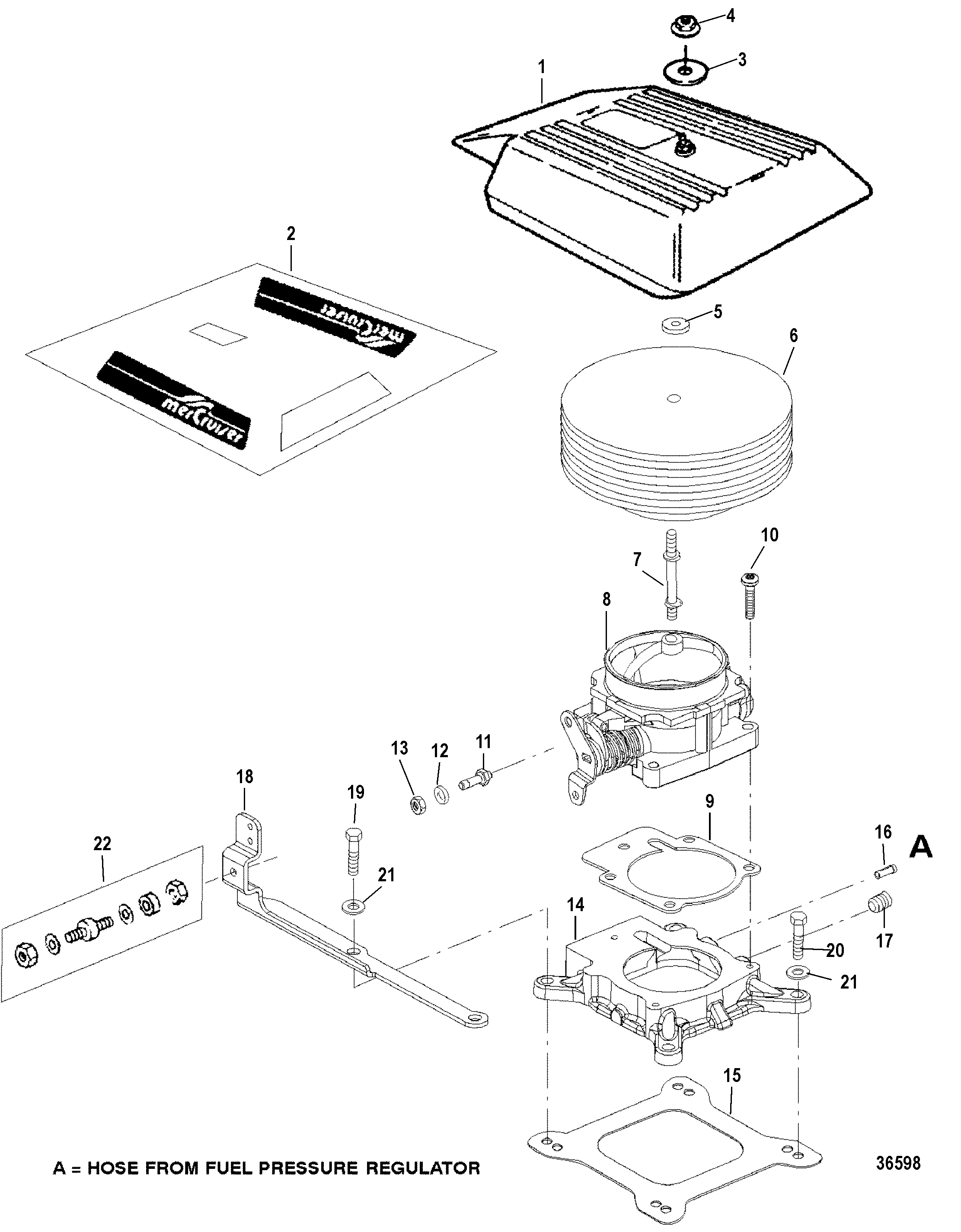

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rails
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Sendors And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Throttle Body And Flame Arrestor
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18484A3 | COVER | 1 | ||||||
| 2 | 37-861314A14 | DECAL, 350 MAG | 1 | This Part is No Longer Available | |||||
| 3 | 12-69056 | WASHER, (.255 x .620 x .030) Stainless Steel | 1 | ||||||
| 4 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | ||||||
| 5 | 12-26907 | WASHER | 1 | ||||||
| 6 | 861443T | FLAME ARRESTOR | 1 | ||||||
| 7 | 16-805295 | STUD, (.250-20/.250-28 x Special) | 1 | ||||||
| 8 | 861442A1 | THROTTLE BODY ASSEMBLY | 1 | ||||||
| 9 | 27-861449 | GASKET | 1 | 3 | |||||
| NS | 803148 | SENSOR | 1 | ||||||
| NS | 10-803150 | SCREW | 2 | This Part is No Longer Available | |||||
| NS | 26-803152 | SEAL, TPS | 1 | This Part is No Longer Available | |||||
| NS | 803149 | VALVE, IAC | 1 | ||||||
| NS | 10-803151 | SCREW, IAC | 2 | ||||||
| 10 | 10-807054 | SCREW, (.250-20 x 1.00) | 4 | ||||||
| 11 | 16-807133 | STUD, (.250 x 1.750) | 1 | ||||||
| 12 | 12-20533 | 602-98-260-49 | WASHER | 1 | |||||
| 13 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | ||||||
| 14 | 863210A1 | PLATE ASSEMBLY, TBI Adaptor | 1 | ||||||
| 15 | 27-41610 | 676-9-61001 | GASKET | 1 | 3 | ||||
| 16 | 22-805598 | FITTING, (.1875) Barb | 1 | ||||||
| 17 | 22-73379 | PLUG, (.250-18) | 1 | ||||||
| 18 | 861388 | BRACKET, Throttle Cable | 1 | ||||||
| 19 | 10-74824 | SCREW, (.312-18 x 1.250) | 2 | ||||||
| 20 | 10-860132 | SCREW, (.312-18 x 1.250) | 2 | ||||||
| 21 | 12-20084 | WASHER, (.328 x .562 x .062) | 4 | ||||||
| 22 | 16-97477A3 | STUD KIT | 1 | ||||||
| - | 27-75611A98 | GASKET SET, Engine Overhaul | 1 |
