350 Mag MPI Alpha-Bravo - Serial 0L331599 Thru 0M299999 - Distributor And Ignition Components

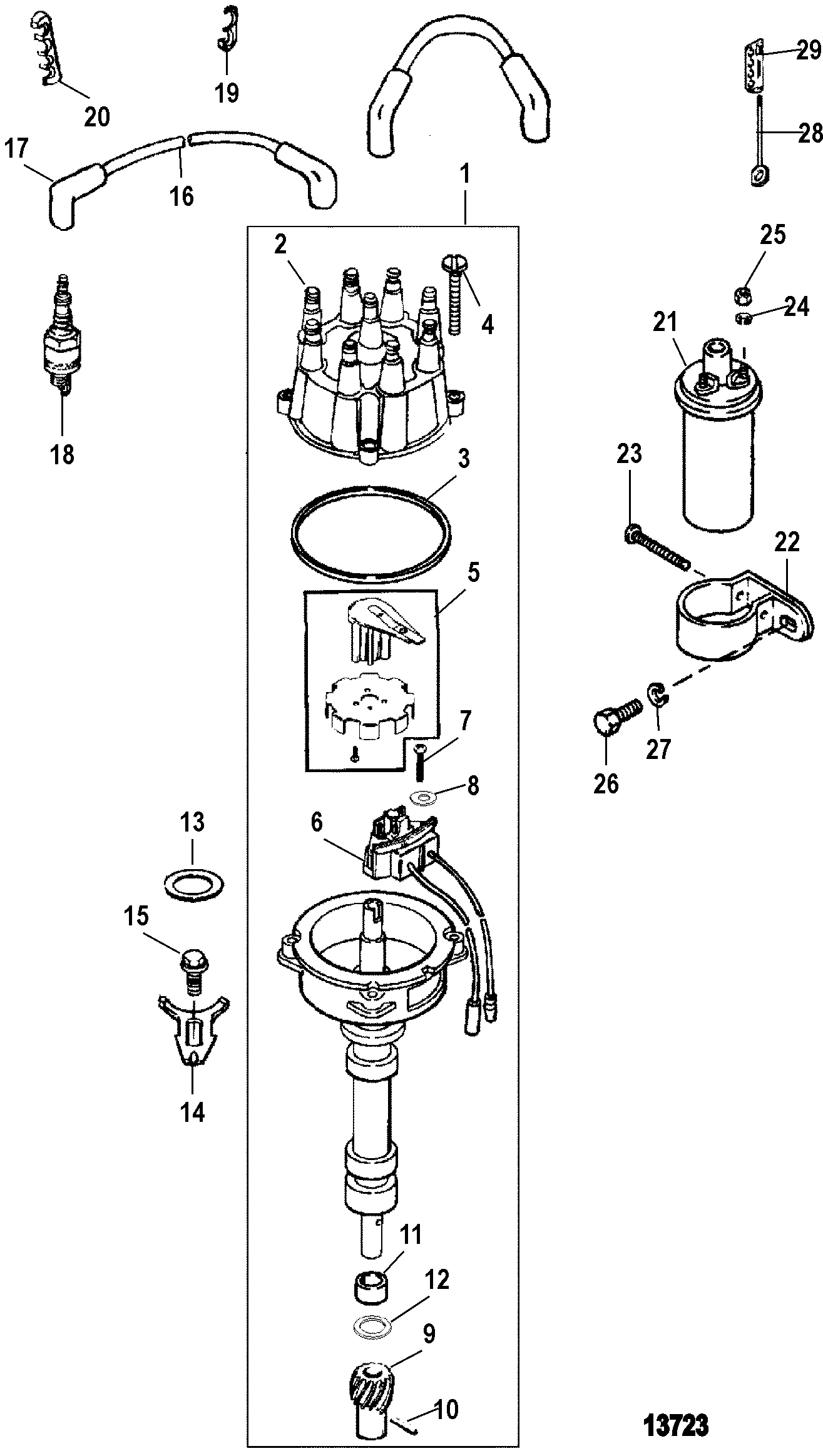

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rails
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Sendors And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Throttle Body And Flame Arrestor
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805185A36 | 700-71250 | DISTRIBUTOR ASSEMBLY | 1 | |||||
| 2 | 805759T1 | 676-9-29403 | CAP, Distributor | 1 | |||||
| 3 | 27-805760 | 676-9-61050 | 700-32060 | GASKET | 1 | ||||
| 4 | 10-90926 | 700-22305 | SCREW, (#10-32 x .810) | 4 | |||||
| 5 | 13524T1 | 700-72880 | WHEEL ASSEMBLY | 1 | |||||
| 6 | 87-892150Q02 | SENSOR ASSEMBLY | 1 | 87-861780A2 | |||||
| 7 | 10-66686 | 700-22311 | SCREW, (#10-32 x 1.00) | 2 | |||||
| 8 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 9 | 43-818807 | 700-19360 | GEAR | 1 | |||||
| 10 | 17-47617 | 700-22195 | PIN | 1 | |||||
| 11 | 23-90915 | 700-21426 | BUSHING | 2 | |||||
| 12 | 12-90931 | 700-21661 | THRUST WASHER | 1 | |||||
| 13 | 27-344863 | GASKET | 1 | 3 | |||||
| 14 | 52185 | CLAMP | 1 | ||||||
| 15 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 1 | ||||||
| 16 | 84-816608Q83 | CABLE KIT, Ignition, Spark Plugs And Coil | 1 | 84-816608A83 | |||||
| 17 | 85-63709A1 | BOOT/TERMINAL KIT | 8 | ||||||
| 18 | 33-816336Q | SPARK PLUG | 8 | 33-816336 | |||||
| 19 | 54676 | RETAINER, Two Wire | 2 | ||||||
| 20 | 32784 | RETAINER, Four Wire | 2 | ||||||
| 21 | 300-8M0079202 | COIL KIT | 1 | 392-805570A2 | |||||
| 22 | 65970T1 | BRACKET | 1 | ||||||
| 23 | 10-41408 | SCREW, (#10-32 x 1.50) | 1 | ||||||
| 24 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 25 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 26 | 10-98261 | SCREW, (.375-16 x .750) | 1 | ||||||
| 27 | 12-20533 | 602-98-260-49 | WASHER | 1 | |||||
| 28 | 16-90096A1 | STUD ASSEMBLY, (#10-32 x Special) | 2 | ||||||
| 29 | 54-72821 | RETAINER | 2 | ||||||
| - | 27-861246A05 | 700-39016 | GASKET SET | 1 | 27-861246A98 |
