350 Mag MPI Alpha-Bravo - Serial 0L331599 Thru 0M299999 - Sendors And Sensors

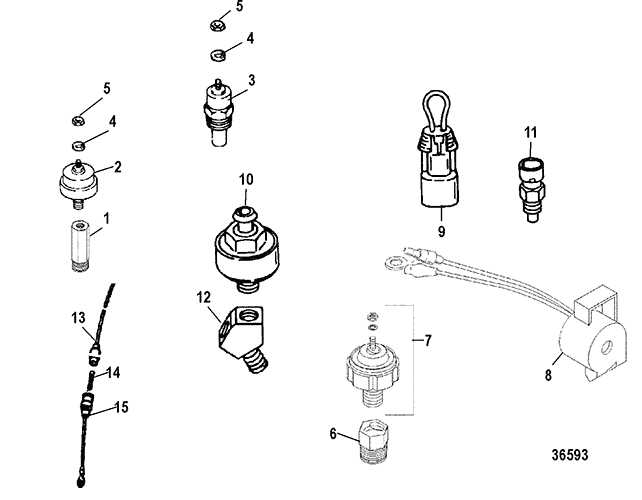

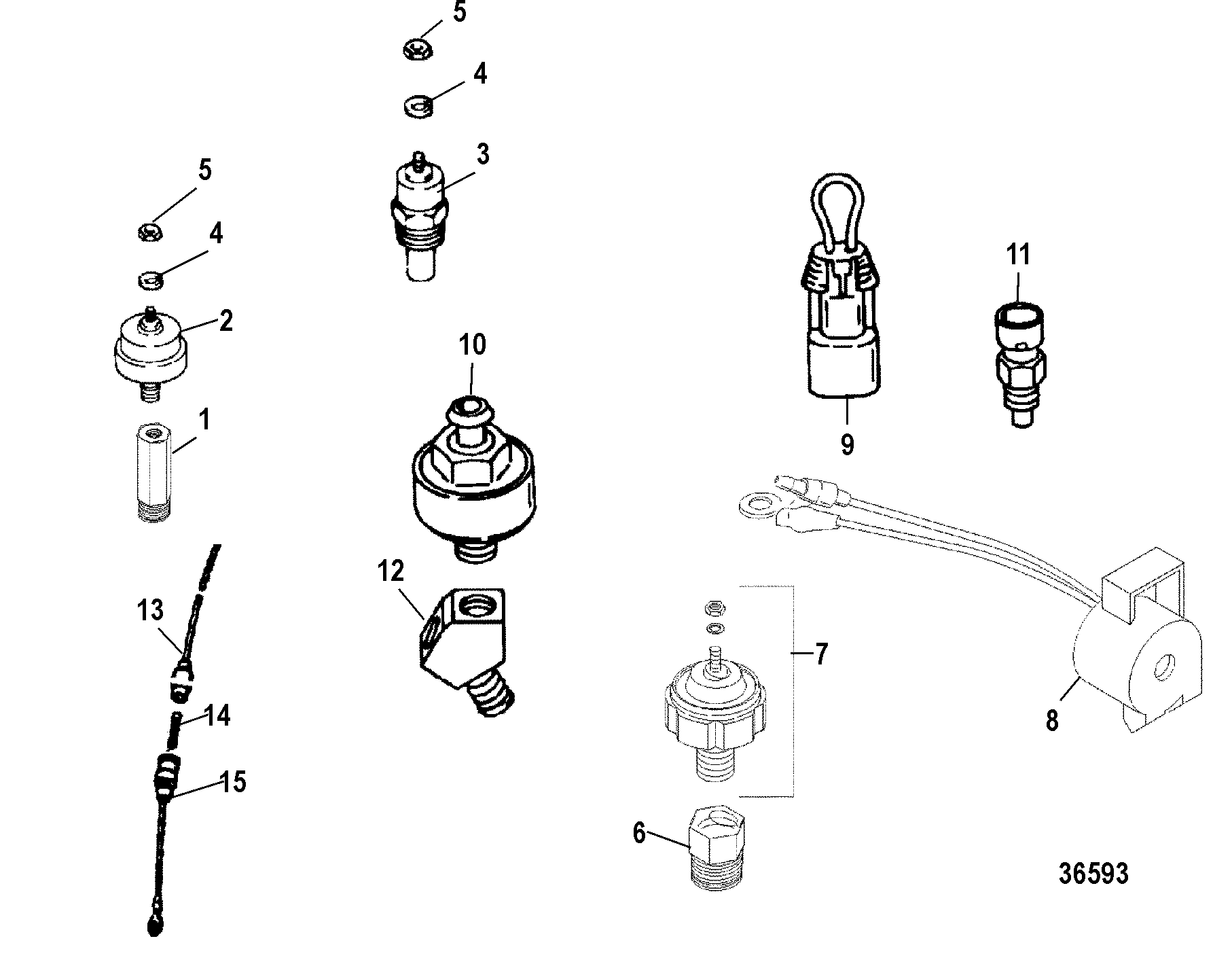

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 22-805059



FITTING 1

2 8M0068784



SENDER ASSEMBLY 1 87-815425T
2 37293T



SENDER ASSEMBLY OPT

3 806490T
676-9-42400

SENDER 1

3 49734



SENDER OPT
4 13-26996



LOCKWASHER, (#10) Stainless Steel 2
5 11-68219



NUT, (#10-32) Stainless Steel 2
6 22-32974



FITTING, (.125-27) Adaptor 1
7 87-805605A1



SWITCH ASSEMBLY 1
8 816492A6



ALARM KIT 1
9 805592A1



CONNECTOR ASSEMBLY 1
9 830796A1



CONNECTOR ASSEMBLY 1
10 806612T
676-9-33503

SENSOR, Knock 1
11 805218T
676-9-42402

SENSOR 1
12 22-8067051



FITTING, Dual 1
13 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) 1
14 88-79091



FUSE, 20 Ampere 1
15 805592A1



CONNECTOR ASSEMBLY 1
