350 Mag MPI Alpha-Bravo - Serial 0L331599 Thru 0M299999 - Engine Mounting
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rails
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Sendors And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Throttle Body And Flame Arrestor
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)

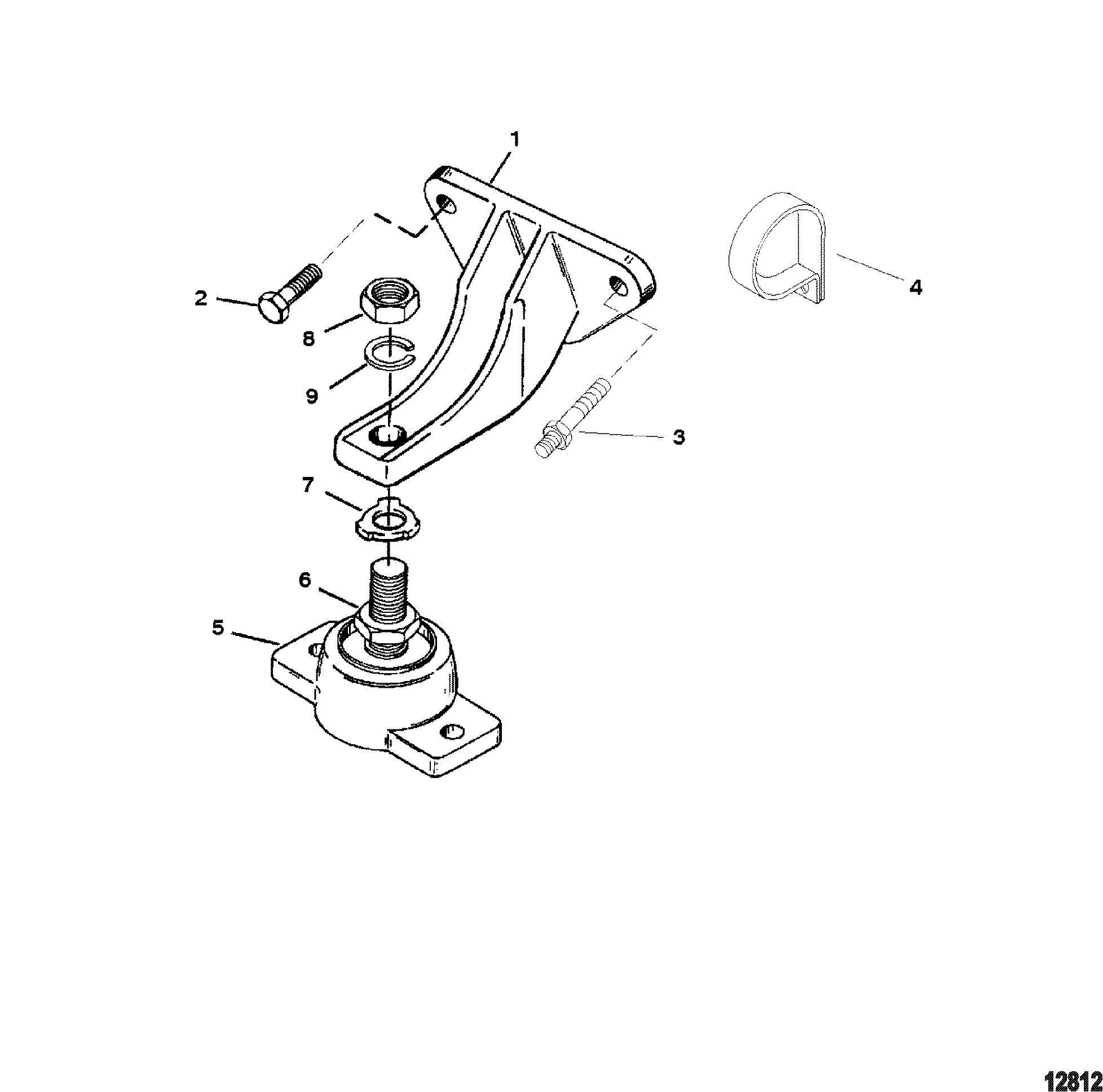

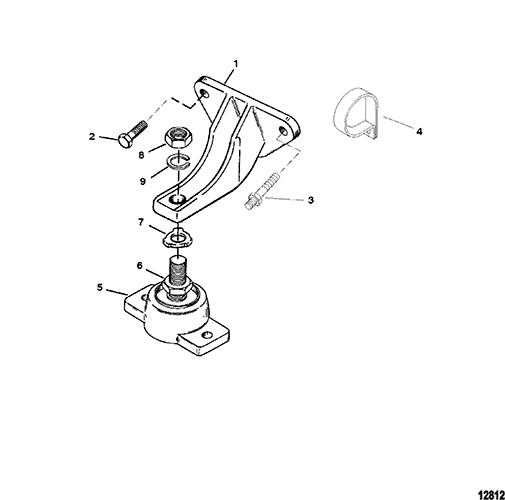

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 79550A1 | BRACKET | 2 | ||||||
2 | 10-68101 | SCREW, (.375-16 x 1.375) | 2 | ||||||
3 | 16-805357 | STUD, (.375-16 x 2.130) | 4 | ||||||
4 | 54-816398 | CLIP | 1 | ||||||
5 | 66284A2 | BASE ASSEMBLY | 2 | ||||||
6 | 11-20739 | NUT, (.750-16) | 2 | ||||||
7 | 14-12657 | TAB WASHER | 2 | ||||||
8 | 11-20739 | NUT, (.750-16) | 2 | ||||||
9 | 13-68102 | LOCKWASHER, (.750) | 2 |
