575 SCi - Serial 0M900000 Thru 0M950526 - Cylinder Block And Camshaft

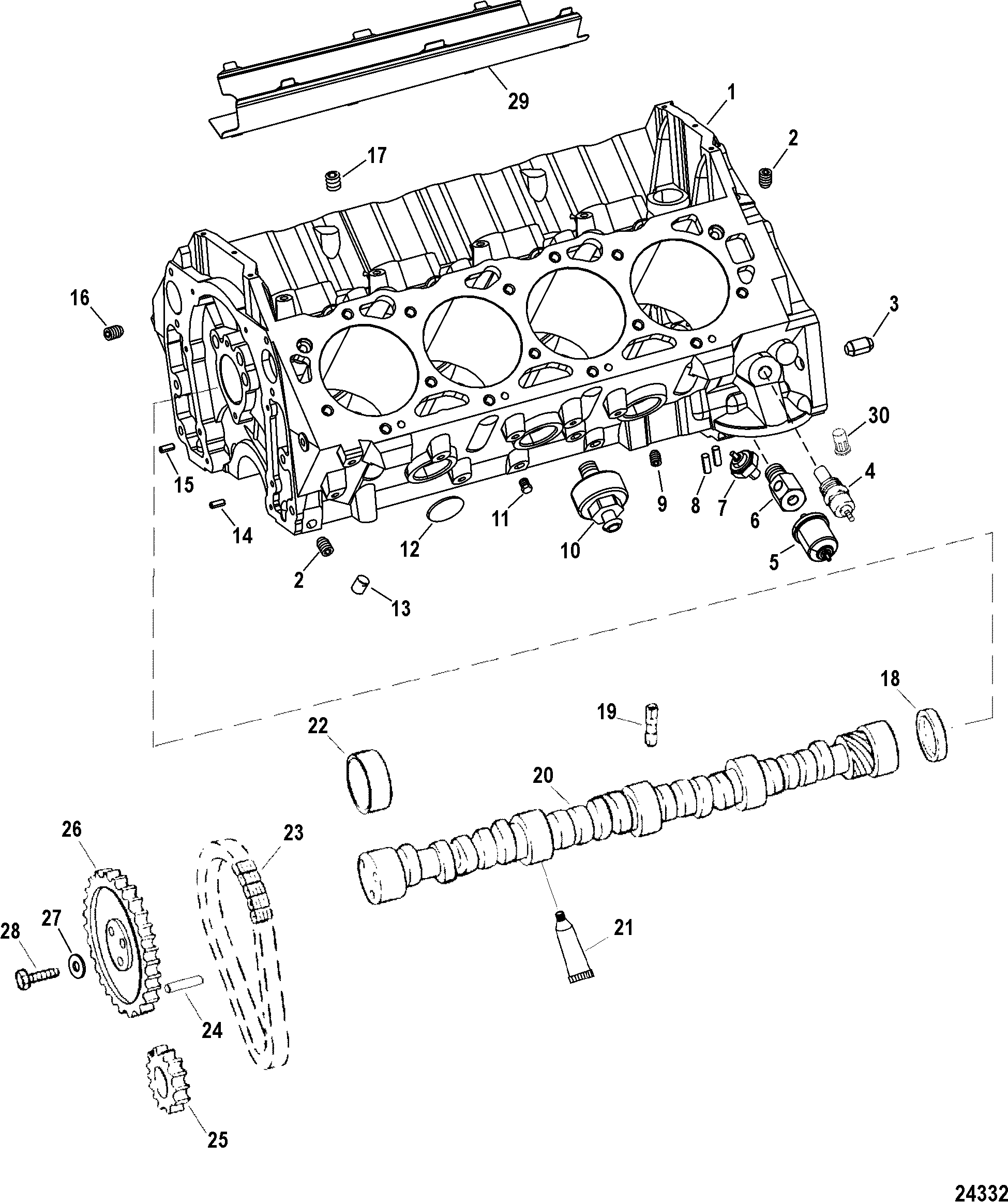

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 844575A7 | PARTIAL ENGINE ASSEMBLY | 1 | This Part is No Longer Available - NOTE: Bravo Models With Driveline Also Require Pilot Bushing Part Number | 23-823108 | |||||
| 2 | 22-32561 | PLUG, Pipe - Allen Head (.250-18), Rear Cam Plugs | 3 | 5 | ||||||
| 3 | 17-843379 | PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing | 2 | 5 | ||||||
| 4 | 8493631 | SENDER ASSEMBLY, Oil Temperature | 1 | |||||||
| 5 | 8M0068784 | SENDER ASSEMBLY, Audio - Oil Temperature | 1 | 87-815425T | ||||||
| 6 | 22-843300 | FITTING, Street Tee | 1 | |||||||
| 7 | 87-805605A1 | SWITCH ASSEMBLY, Oil Pressure | 1 | |||||||
| 8 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (.250) Bottom Of Block | 2 | 17-35312 | ||||||
| 9 | 22-36373 | PLUG, (.375-18) Hex - Steel, Bottom Of Block - Rear Oil Plugs | 2 | 5 | ||||||
| 9 | 22-36373 | PLUG, (.375-18) Hex - Steel, Bottom Of Block Oil Plug | 1 | 5 | ||||||
| 10 | 805544T | SENSOR ASSEMBLY, Knock | 1 | |||||||
| 11 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass | 4 | 5 | |||||
| 12 | 22-69300 | EXPANSION PLUG, (1.750 Diameter) | 8 | 5 | ||||||
| 13 | 17-845758 | PIN, Dowel | 4 | 5 | ||||||
| 14 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (.250) Timing Cover | 1 | 17-35312 | 5 | |||||
| 15 | 17-843143 | PIN, Spring, Port Side - Timing Cover | 1 | 5 | ||||||
| 16 | 845606 | PLUG, (.250-18 x .410) Allen Head With Hole | 2 | 5 | ||||||
| 17 | 22-328022 | PLUG, Pipe (.125-27) Brass, Oil Galley | 3 | 5 | ||||||
| 18 | 19-94140 | EXPANSION PLUG | 1 | 5 | ||||||
| 19 | 93722T | LIFTER | 16 | 5 | ||||||
| 20 | 491-818870 | CAMSHAFT | 1 | This Part is No Longer Available 5 | ||||||
| 21 | 92-15875 | LUBE, Camshaft (8 Ounces) | AR | |||||||
| 22 | 23-85684 | BEARING SET | 1 | 5 | ||||||
| 23 | 845796T | CHAIN, Timing | 1 | 5 | ||||||
| 24 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (.250) | 1 | 17-35312 | 5 | |||||
| 25 | 43-845794T | SPROCKET, Crankshaft | 1 | 43-811579 | 5 | |||||
| 26 | 43-811578 | SPROCKET, Camshaft | 1 | 5 | ||||||
| 27 | 12-848136 | WASHER, (.328 x .680 x .190) | 3 | 5 | ||||||
| 28 | 10-845942 | SCREW, (.312-18 x .750) | 3 | 10-35339 | 5 | |||||
| 29 | 845756T | SHIELD, Oil Intake | 1 | 816073 | 5 | |||||
| 30 | VALVE, Relief | 1 | 5 | |||||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul For Complete Parts Listing |
