575 SCi - Serial 0M900000 Thru 0M950526 - Distributor And Ignition Components

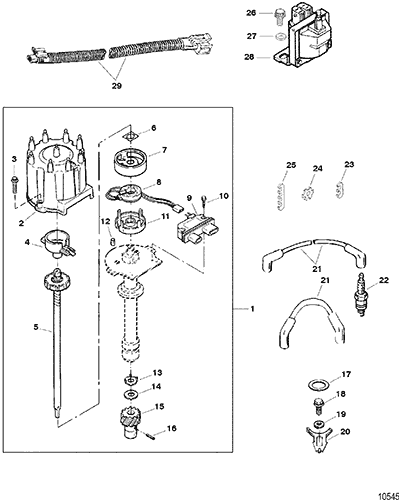

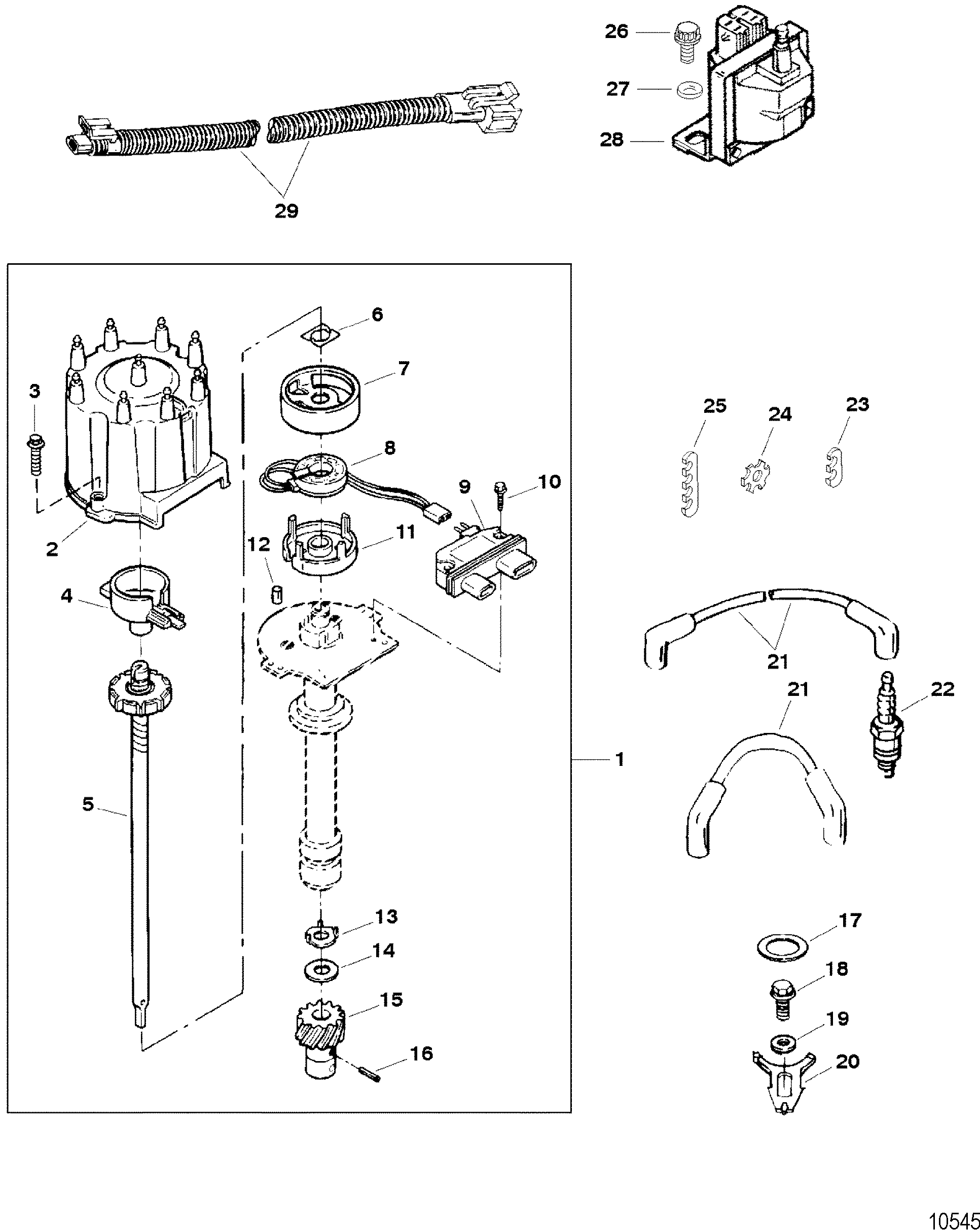

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805222A1         DISTRIBUTOR ASSEMBLY 1

2 808483T3   676-9-29411 700-71400   CAP, Distributor 1

3 10-808491         SCREW 2   This Part is No Longer Available
4 8M6001253     700-71100   ROTOR 1 8084841
5 808485T         SHAFT ASSEMBLY, Main 1   This Part is No Longer Available
6 808487         RETAINER 1   This Part is No Longer Available
7 NSS         NOT SOLD SEPARATE, Shield 1
This Part is not sold separately
8 811639T     700-72130   COIL 1

9 811637001         MODULE 1 811637T
10 10-811638         SCREW 2   This Part is No Longer Available
11 811641         POLE PIECE 1

12 17-808488         PIN 1   This Part is No Longer Available
13 12-46350         WASHER 1   This Part is No Longer Available
14 12-808489         WASHER 1

15 43-808490         GEAR, Drive 1

16 17-34109         PIN 1   This Part is No Longer Available
17 27-344863         GASKET, Distributor 1
2
18 10-805559         SCREW, (.375-16 x .875) Stainless Steel 1

19 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 1

20 52185         CLAMP 1

21 84-847701Q25         CABLE SET, Ignition - Blue, Spark Plugs And Coil 1 84-847701A25
22 33-8134214         SPARK PLUG, Package Of Four 8

23 54676         RETAINER, Two Wire 2

24 32783         RETAINER, Three Wire 2

25 32784         RETAINER, Four Wire 4

26 10-94247       525-10-94247 SCREW, (.375-16 x .750) Stainless Steel 2

27 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 2

28 898253T27         COIL, Ignition 1 817378
29 84-817376T01         HARNESS ASSEMBLY, Distributor Module To Ignition Coil 1 84-817376T
- 27-842182A1         GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
