575 SCi - Serial 0M900000 Thru 0M950526 - Intake Throttle Body Components

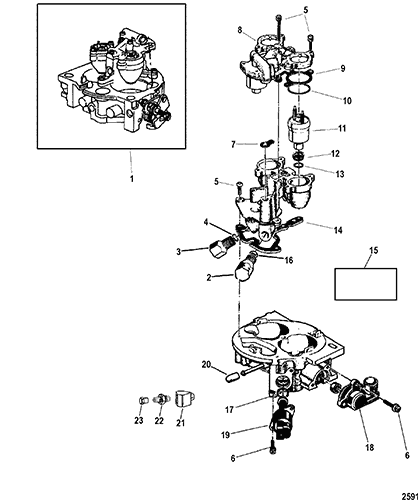

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807941T13 | THROTTLE BODY ASSEMBLY, Front - Blue | 1 | This Part is No Longer Available | |||||
| 1 | 807941T11 | THROTTLE BODY ASSEMBLY, Rear - Blue | 1 | This Part is No Longer Available | |||||
| 2 | 22-843204 | FITTING | 1 | ||||||
| 3 | 22-806653A1 | FITTING ASSEMBLY, Inlet | 1 | ||||||
| 4 | 26-806655 | SEAL | 1 | NOTE: Also Included In Gasket Kit 27-852957 | |||||
| 5 | 10-852958 | SCREW KIT | 1 | ||||||
| 6 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 6 | ||||||
| 7 | NSS | NOT SOLD SEPARATE, Gasket | 1 | This Part is not sold separately - NOTE: Included In Kits 852955 And 853998A1 And 27-852957 | |||||
| 8 | 852955 | REGULATOR KIT, Fuel Pressure | 1 | This Part is No Longer Available No longer available | |||||
| 9 | NSS | NOT SOLD SEPARATE, Gasket | 1 | This Part is not sold separately - NOTE: Included In Kits 852955 And 853998A1 And 27-852957 | |||||
| 10 | NSS | NOT SOLD SEPARATE, Seal | 1 | This Part is not sold separately - NOTE: Included In Kits 853998A1 And 27-852957 | |||||
| 11 | 853998A1 | INJECTOR KIT, Fuel (2 Per Kit) | 1 | This Part is No Longer Available | |||||
| 12 | NSS | NOT SOLD SEPARATE, Gasket | 1 | This Part is not sold separately - NOTE: Included In Kit 27-852957 | |||||
| 13 | NSS | NOT SOLD SEPARATE, Seal | 1 | This Part is not sold separately - NOTE: Included In Kits 853998A1 And 27-852957 | |||||
| 14 | NSS | NOT SOLD SEPARATE, Gasket | 1 | This Part is not sold separately - NOTE: Included In Kit 27-852957 | |||||
| 15 | 27-852957 | GASKET KIT, Overhaul | 1 | This Part is No Longer Available | |||||
| 16 | 26-806706 | SEAL | 1 | ||||||
| 17 | 25-808547 | O-RING | 2 | ||||||
| 18 | 805226A1 | 676-9-33701 | SENSOR ASSEMBLY, TPS, Throttle Postion | 1 | |||||
| 19 | 805224A03 | MOTOR KIT, (IAC), With Two Screws | 2 | ||||||
| 20 | 806899 | PLUG | 3 | NOTE: Qty 2 - Front / Qty 1 - Rear | |||||
| 21 | 22-29085 | FITTING, Elbow (45 Degree) , Front Only | 1 | ||||||
| 22 | 22-840971A1 | VALVE ASSEMBLY, Shrader, Front Only | 1 | ||||||
| 23 | 22-805515 | CAP, Shrader Valve - Brass | 1 |
