575 SCi - Serial 0M900000 Thru 0M950526 - Sender And Sensors

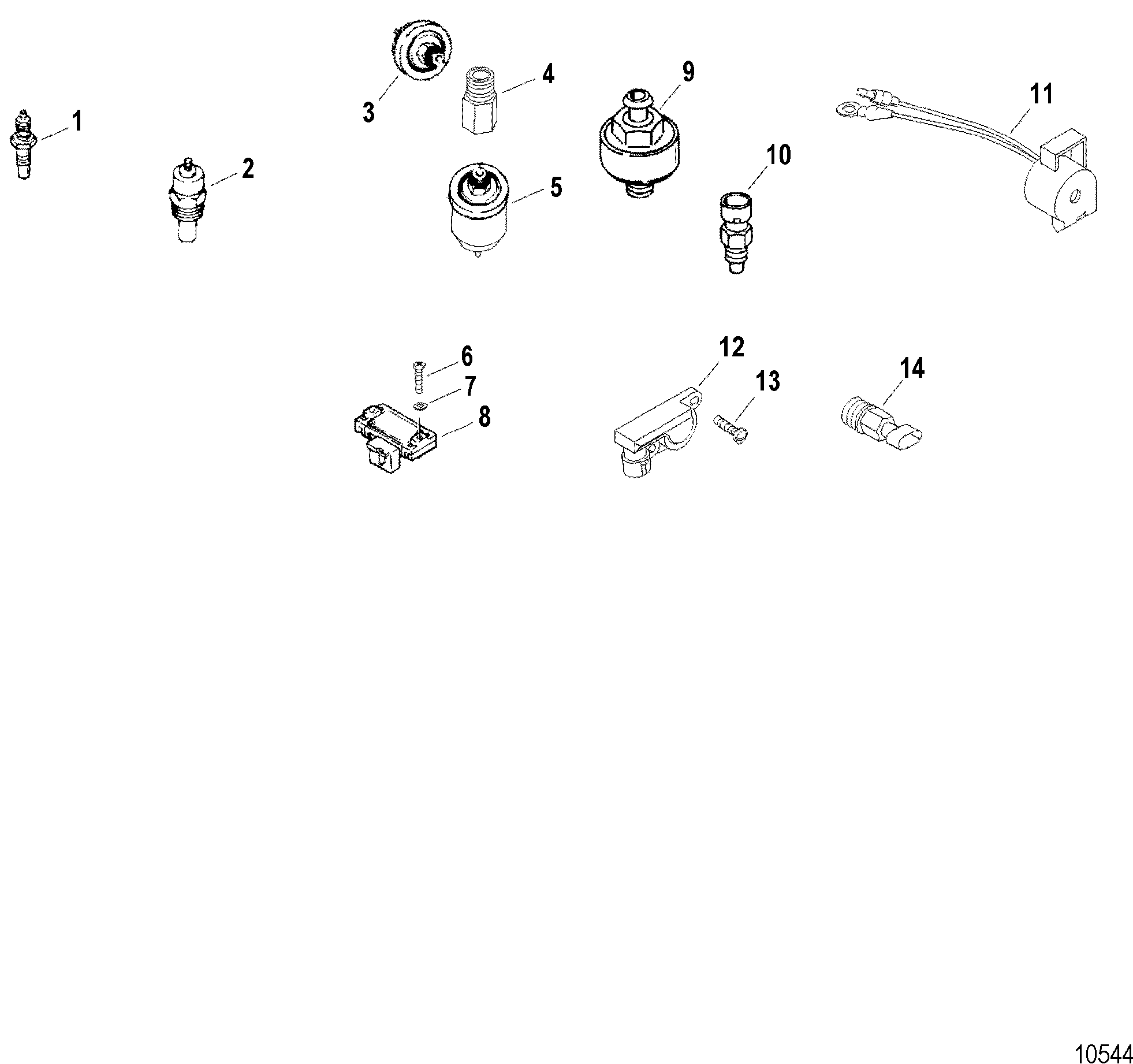

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8493631 | SENDER ASSEMBLY, Oil Temperature - Cylinder Block | 1 | ||||||
| 2 | 806490T | 676-9-42400 | SENDER ASSEMBLY, Water Temperature - Thermostat Housing | 1 | 97257A1 | ||||
| 3 | 87-805605A1 | SWITCH ASSEMBLY, Oil Pressure - Cylinder Block | 1 | ||||||
| 4 | 22-843300 | FITTING, Street Tee | 1 | ||||||
| 5 | 8M0068784 | SENDER ASSEMBLY, Audio - Oil Pressure - Cylinder Block | 1 | 87-815425T | |||||
| 6 | 10-66686 | 700-22311 | SCREW, (#10-32 x 1.00) | 2 | |||||
| 7 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 8 | 879150150 | SENSOR, MAP - Throttle Body Adaptor | 1 | 849934 | |||||
| 9 | 805544T | 676-9-33500 | SENSOR ASSEMBLY, Knock - Cylinder Block | 1 | |||||
| 10 | 805218T | 676-9-42402 | SENSOR, Coolant Temperature - Thermostat Housing | 1 | |||||
| 11 | 816492A6 | ALARM KIT, Audio Warning - Remote Mounted Near Helm | 1 | ||||||
| 12 | 805226A1 | 676-9-33701 | SENSOR ASSEMBLY, TPS, Throttle Postion - Intake Throttle Body | 1 | |||||
| 13 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 14 | 805223T | 676-9-42406 | SENSOR, IAT - Intake Air Temperature - Flame Arrestor | 1 |
