575 SCi - Serial 0M900000 Thru 0M950526 - Fuel Pump And Fuel Cooler

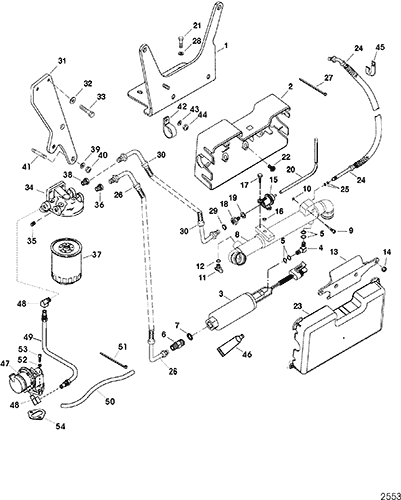

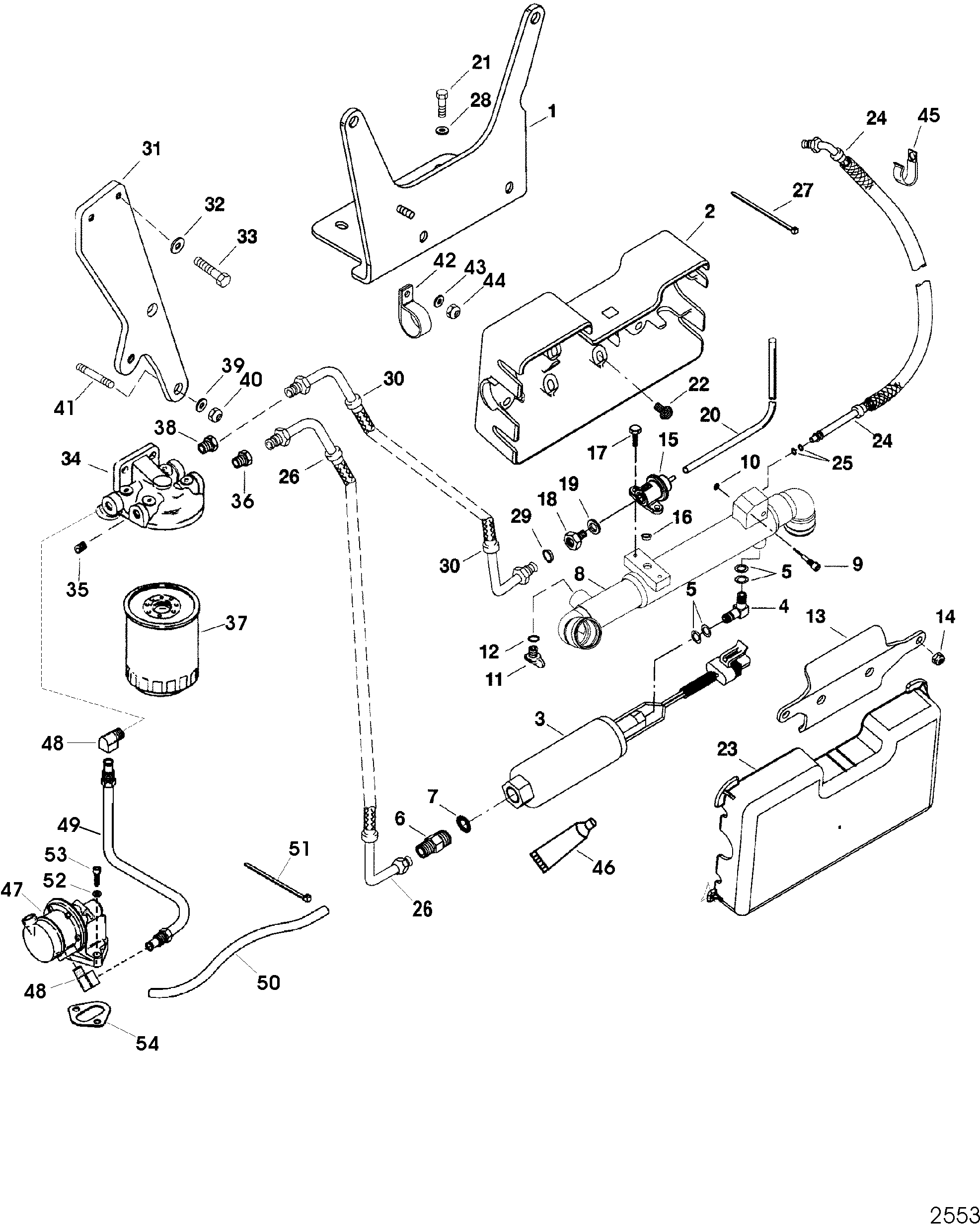

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 8M0050909 | BRACKET, Fuel Cooler | 1 | 849904 | ||||||
| 2 | 807685T3 | INSULATOR, Base | 1 | |||||||
| 3 | 849930T02 | PUMP ASSEMBLY, Fuel, With Ref Numbers 5 And 7 | 1 | 849930T1 | ||||||
| 4 | 22-807783A1 | FITTING ASSEMBLY, 90 Degree | 1 | |||||||
| 5 | 25-805063 | O-RING, (.301 x .070) | 4 | |||||||
| 6 | 22-808001A1 | FITTING ASSEMBLY | 1 | |||||||
| 7 | 25-805062 | O-RING, (.530 x .082) | 1 | |||||||
| 8 | 849929A02 | COOLER KIT, Fuel | 1 | 849929A1 | ||||||
| 9 | 10-866114 | SCREW, (.250-28) Special | 1 | 10-861303 | Design I - Used With Retaining Ring | 53-861414 | ||||
| 9 | 10-866114 | SCREW, (.250-28) Special | 1 | Design II - No Retaining Ring | ||||||
| 10 | 53-861414 | RING, Retaining | 1 | |||||||
| 11 | 22-806608A02 | 700-13992 | PLUG KIT, (.500-13) Royal Blue | 1 | 22-806608A1 | |||||
| 12 | 25-32509 | O-RING, (.489 x .070) | 1 | |||||||
| 13 | 807979T | BRACKET | 1 | |||||||
| 14 | 11-29598 | NUT, (.250-28) Stainless Steel | 2 | |||||||
| 15 | 807952A1 | 676-9-33205 | REGULATOR KIT, Fuel Pressure | 1 | ||||||
| 16 | 35-805406 | FILTER | 1 | |||||||
| 17 | 10-852368 | SCREW, (#10-24 x .750) | 2 | |||||||
| 18 | 22-8080021 | FITTING, Stainless Steel | 1 | |||||||
| 19 | 12-36533 | WASHER, (.328 x .562 x .0312) Copper | 1 | |||||||
| 20 | 32-8M0063567 | HOSE, (52.00 Inches Bulk), Cut As Required - To Rear TBI | 1 | 32-80617379 | ||||||
| 21 | 10-64014 | SCREW, (.250-28 x .500) | 4 | |||||||
| 22 | 269011 | BUMPER, Rubber | 8 | |||||||
| 23 | 807930T01 | INSULATOR, Fuel Cooler Cover | 1 | 807930 | ||||||
| 24 | 8M0050923 | LINE ASSEMBLY, Fuel, To Fuel Filter | 1 | 32-849891 | ||||||
| 25 | 25-805063 | O-RING, (.301 x .070) | 2 | |||||||
| 26 | 32-849871 | LINE ASSEMBLY, Fuel, Seperator To Pump | 1 | |||||||
| 27 | 54-816311T | 700-21465 | TIE STRAP, (8.00 Inches) | AR | ||||||
| 28 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 4 | |||||||
| 29 | 27-848438 | GASKET, Flare | 1 | |||||||
| 30 | 32-849870 | LINE ASSEMBLY, Fuel, Regulator To Pump | 1 | |||||||
| 31 | 8492261 | BRACKET, Seperator | 1 | |||||||
| 32 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | |||||||
| 33 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 2 | |||||||
| 34 | 89876A3 | BASE ASSEMBLY, Fuel Filter/Water Seperator | 1 | |||||||
| 35 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 1 | |||||||
| 36 | 22-808003 | CONNECTOR | 1 | |||||||
| 37 | 35-802893Q01 | FILTER, Fuel/Water Separating - Quicksilver Brand | 1 | 35-802893Q | ||||||
| 38 | 22-33821 | CONNECTOR | 1 | |||||||
| 39 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 40 | 11-859135 | 676-9-78116 | NUT, (.437-20) | 2 | 11-817618 | |||||
| 41 | 16-579203 | 525-16-579203 | STUD, (.437-14/.437-20 x 2.060) | 1 | ||||||
| 42 | 54-62494 | CLIP, Hose | 1 | |||||||
| 43 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | |||||||
| 44 | 11-82670912 | NUT, (.375-16) Stainless Steel | 1 | |||||||
| 45 | 54-848183 | J CLIP, Fuel Line To Port Mount | 2 | |||||||
| 46 | 92-805701 | COMPOUND, Heat Transfer (6 Grams) | AR | |||||||
| 47 | 889275T | PUMP ASSEMBLY, Fuel | 1 | 842429T | ||||||
| 48 | 22-93385 | FITTING, (90 Degree) | 2 | |||||||
| 49 | 32-842423 | LINE ASSEMBLY, Fuel, Pump To Seperator | 1 | |||||||
| 50 | 32-8M8023638 | TUBING, (54.00 Inches Bulk), Cut 48.00 Inches | 1 | 32-84862872 | ||||||
| 51 | 56762 | TIE STRAP, (4.00 Inches) | 2 | |||||||
| 52 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 2 | |||||||
| 53 | 10-34354 | 700-22447 | SCREW, (.375-16 x 1.50) | 2 | ||||||
| 54 | 27-34213 | 676-9-61041 | 700-31360 | GASKET, Fuel Pump Mounting | 1 |
