575 SCi - Serial 0M900000 Thru 0M950526 - Intake Manifold And Supercharger

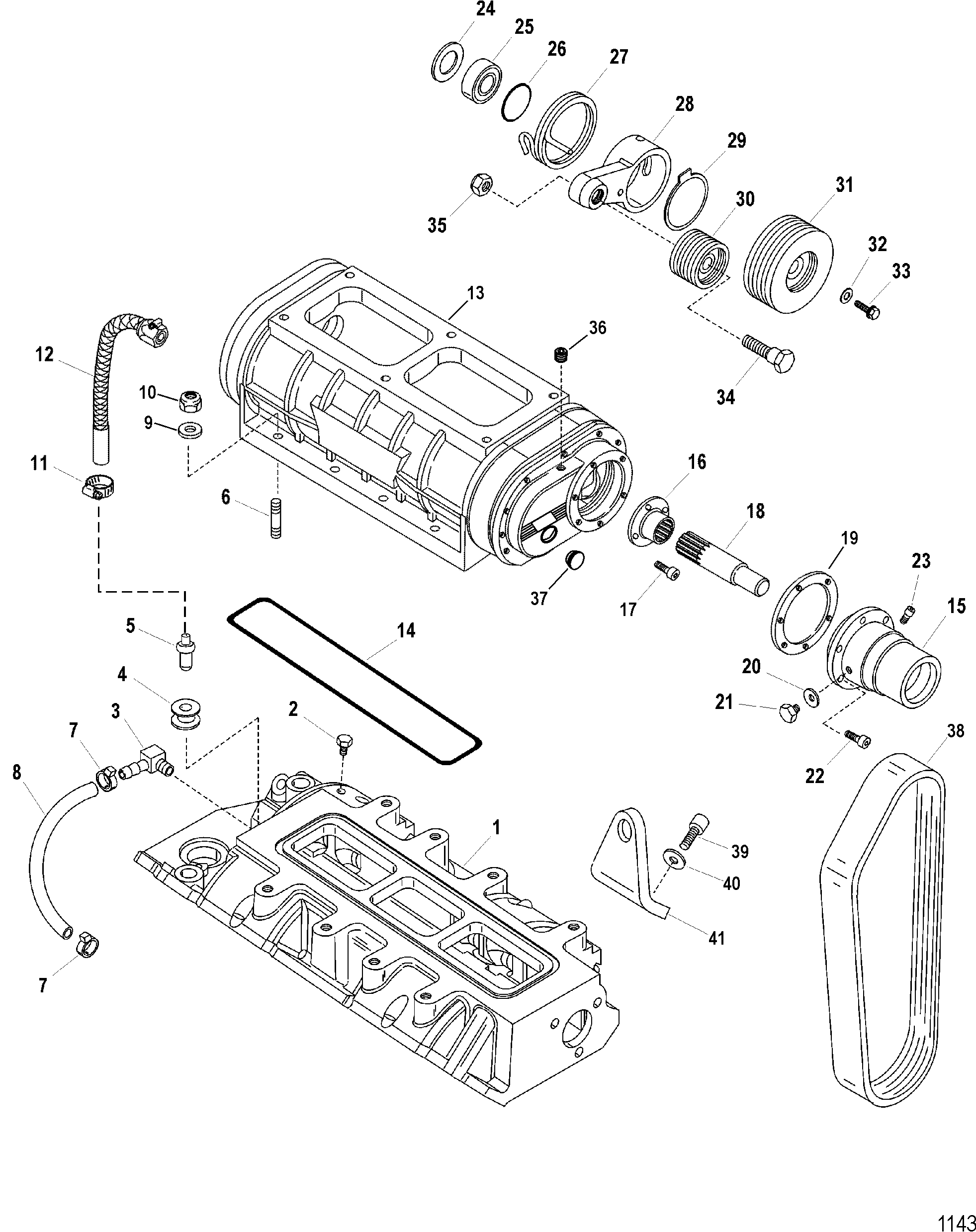

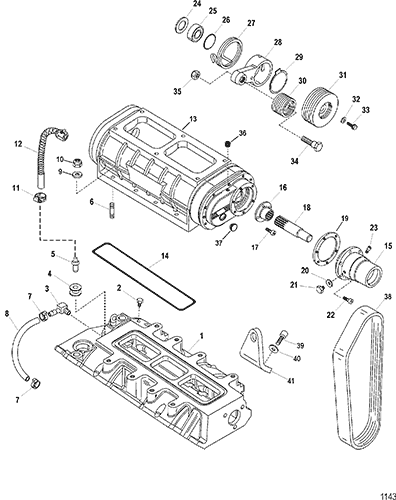

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849901A1 | MANIFOLD ASSEMBLY, Intake | 1 | This Part is No Longer Available | |||||
| 2 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 3 | 22-196881 | FITTING, (90 Degree) | 1 | ||||||
| 4 | 25-811553 | GROMMET | 1 | ||||||
| 5 | 848578 | VALVE ASSEMBLY, Crankcase Vent | 1 | ||||||
| 6 | 16-849928 | STUD, (.312-18/.312-24 x 2.00) | 8 | ||||||
| 7 | 56762 | TIE STRAP, (4.00 Inches) | 2 | ||||||
| 8 | 32-8M0062600 | HOSE, (54.00 Inches Bulk), Cut 10.50 Inches - MAP Sensor | 1 | 32-1940971 | |||||
| 9 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 8 | ||||||
| 10 | 11-82670911 | NUT, (.312-24) Stainless Steel | 8 | ||||||
| 11 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 1 | ||||||
| 12 | 32-823229A3 | HOSE ASSEMBLY, PCV (13.50 Inches) | 1 | ||||||
| 13 | 849893A22 | SUPERCHARGER ASSEMBLY, Blue | 1 | This Part is No Longer Available | |||||
| 14 | 25-844473 | O-RING, (10.975 x .210) | 1 | 2 | |||||
| 15 | 841272A1 | NOSE ASSEMBLY | 1 | ||||||
| 16 | 841278 | COUPLER | 1 | This Part is No Longer Available | |||||
| 17 | 10-92702 | SCREW, (.250-28 x .875) | 4 | ||||||
| 18 | 841273 | SHAFT | 1 | This Part is No Longer Available | |||||
| 19 | 27-844134 | GASKET | 1 | ||||||
| 20 | 12-68300 | WASHER, (..88 x .39 x .06) | 1 | no longer made, limited availability | |||||
| 21 | 10-841265 | SCREW, (.250-28 x .875) | 1 | This Part is No Longer Available | |||||
| 22 | 10-823138 | SCREW, (.250-20 x 1.00) Stainless Steel | 6 | ||||||
| 23 | 10-841446 | SCREW, (.250-20 x .500) | 1 | This Part is No Longer Available | |||||
| 24 | 26-841266 | SEAL | 1 | This Part is No Longer Available | |||||
| 25 | 30-841269 | BEARING | 1 | This Part is No Longer Available | |||||
| 26 | 53-841275 | RING, Snap | 1 | ||||||
| 27 | 24-841270 | SPRING | 1 | ||||||
| 28 | 841271 | IDLER ARM | 1 | ||||||
| 29 | 53-841268 | RING, Snap | 1 | ||||||
| 30 | 848091T | PULLEY, Idler - With Bearing | 1 | This Part is No Longer Available | |||||
| 31 | 845311 | PULLEY, Snout | 1 | This Part is No Longer Available | |||||
| 32 | 12-841277 | WASHER | 1 | ||||||
| 33 | 10-841276 | SCREW, (.375-24 x .750) | 1 | ||||||
| 34 | 10-841267 | SCREW, (.500-13 x 2.500) | 1 | ||||||
| 35 | 11-844766 | NUT, (.500-13) | 1 | ||||||
| 36 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 1 | ||||||
| 37 | 843113 | SIGHT PLUG | 1 | ||||||
| 38 | 57-817113 | BELT, Serpentine | 1 | ||||||
| 39 | 10-822168 | SCREW, (.375-16 x 1.750) Stainless Steel | 2 | ||||||
| 39 | 10-817124 | SCREW, (.375-16 x 1.500) | 10 | ||||||
| 39 | 10-843751 | SCREW, (.375-16 x 1.500) With Holes | 2 | ||||||
| 39 | 10-842787 | SCREW, (.375-16 x 2.00) Stainless Steel | 2 | ||||||
| 40 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 16 | ||||||
| 41 | 54-8499981 | LIFTING EYE, Black | 2 | ||||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
