575 SCi - Serial 0M900000 Thru 0M950526 - Transmission And Components (Driveline)

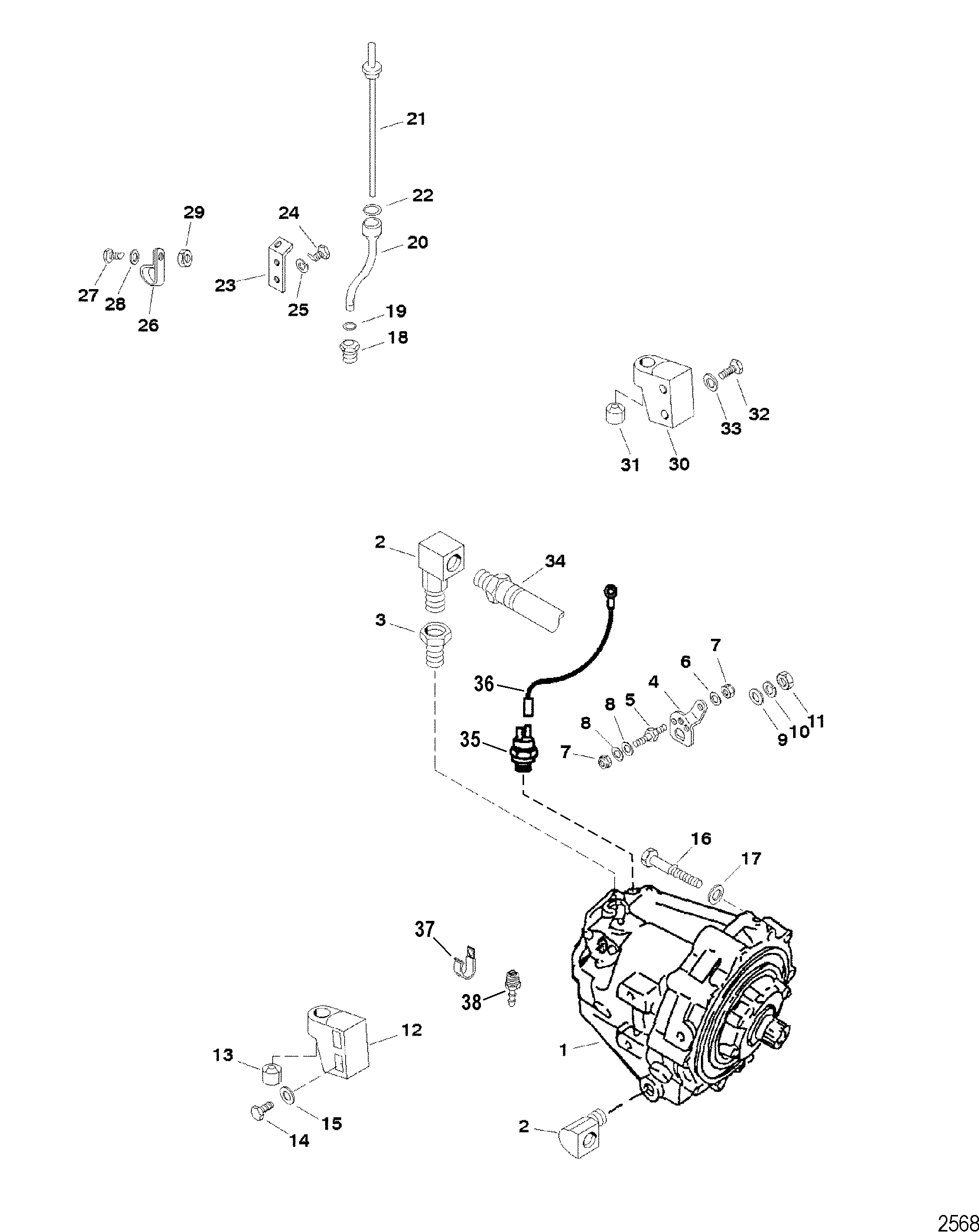

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 841918A07 | TRANSMISSION ASSEMBLY | 1 | 14750A1 | |||||
| 2 | 22-47629 | ELBOW, 90 Degree | 2 | ||||||
| 3 | 22-88517 | FITTING, Reducing | 1 | ||||||
| 4 | 12128 | LEVER, Transmission Shift | 1 | ||||||
| 5 | 16-63335 | STUD, (.250-28 x 2.00) | 1 | This Part is No Longer Available | |||||
| 6 | 12-39143 | WASHER, (.253 x .625 x .0937) | 1 | ||||||
| 7 | 11-8267089 | NUT, (.250-28) | 2 | ||||||
| 8 | 12-29245 | 700-21490 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | |||||
| 9 | 12-20722 | WASHER, (.328 x .625 x .060) | 1 | This Part is No Longer Available | |||||
| 10 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 1 | |||||
| 11 | 11-22053 | NUT, (.312-24) | 1 | ||||||
| 12 | 47334A2 | BRACKET ASSEMBLY, Mounting - Starboard | 1 | This Part is No Longer Available | |||||
| 13 | 35852 | MOUNT, Transmission Bracket | 1 | ||||||
| 14 | 10-47462 | SCREW, (.437-14 x 1.250) | 2 | ||||||
| 15 | 13-32993 | LOCKWASHER, (.437) | 2 | ||||||
| 16 | 10-60179 | SCREW, (.437-14 x 3.500) | 6 | ||||||
| 17 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 6 | |||||
| 18 | 48461 | ADAPTOR, Oil Level Gauge Tube | 1 | This Part is No Longer Available | |||||
| 19 | 25-48462 | O-RING, (.614 x .070) | 1 | ||||||
| 20 | 48463 | TUBE, Dipstick, Oil Level | 1 | This Part is No Longer Available | |||||
| 21 | 48464 | DIPSTICK, Oil Level | 1 | This Part is No Longer Available | |||||
| 22 | 25-35276 | 676-9-76530 | O-RING, (.734 x .139) | 1 | |||||
| 23 | 48466 | BRACKET, Mounting | 1 | This Part is No Longer Available | |||||
| 24 | 10-32417 | SCREW, (.250-28 x .625) | 2 | ||||||
| 25 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 26 | 54-67015 | CLAMP | 1 | ||||||
| 27 | 10-60300 | SCREW, (.250-28 x .750) | 1 | ||||||
| 28 | 12-29245 | 700-21490 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | |||||
| 29 | 11-8267089 | NUT, (.250-28) | 1 | ||||||
| 30 | 47340A1 | BRACKET ASSEMBLY, Mounting - Port | 1 | ||||||
| 31 | 35852 | MOUNT, Transmission Bracket | 1 | ||||||
| 32 | 10-47462 | SCREW, (.437-14 x 1.250) | 2 | ||||||
| 33 | 13-32993 | LOCKWASHER, (.437) | 2 | ||||||
| 34 | 32-475166 | HOSE ASSEMBLY, (30.00 Inches) | 2 | ||||||
| 35 | 87-88031 | SWITCH ASSEMBLY | 1 | ||||||
| 36 | 84-88032A5 | CABLE ASSEMBLY, (3.00 Inches) Tan/Blue | 1 | ||||||
| 36 | 84-86322A29 | CABLE ASSEMBLY, (3.00 Inches) Black | 1 | ||||||
| 37 | 54-47483 | J CLIP | 1 | ||||||
| 38 | 22-63186 | FITTING, (.125-27), Transmission To Bottle | 1 |
