600 SCi - Serial 0M952908 Thru 0M962885 - Alternator And Mounting

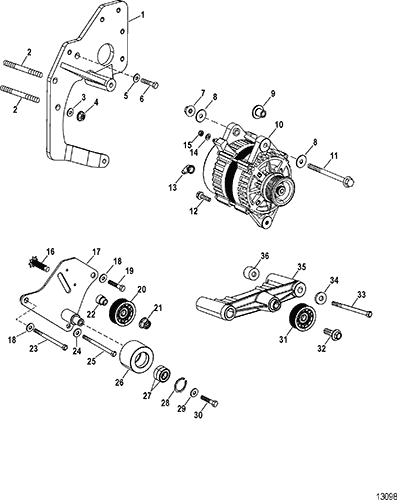

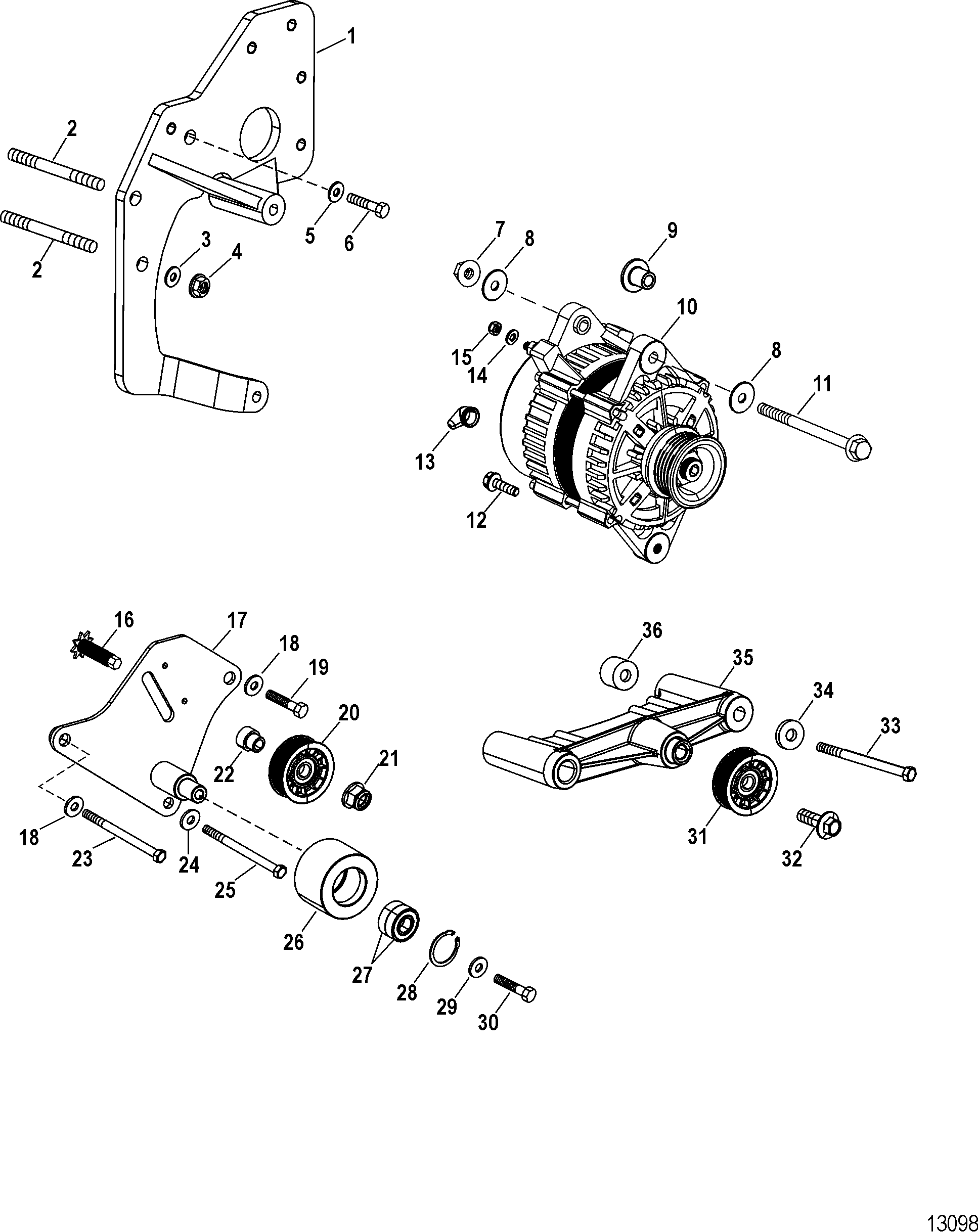

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0050829 | BRACKET, Alternator/Power-Assisted Steering Mount | 1 | 8409351 | |||||
| 2 | 16-579203 | 525-16-579203 | STUD, (.437-14/.437-20 x 2.060) | 2 | |||||
| 3 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | |||||
| 4 | 11-859135 | 676-9-78116 | NUT, (.437-20) Brass/Nickel Plated | 2 | |||||
| 5 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | Non Power Steering Models | |||||
| 6 | 10-65210 | 525-10-65210 | SCREW, (.375-16 x 1.00) | 1 | Non Power Steering Models | ||||
| 7 | 11-82670910 | NUT, (.312-18) Stainless Steel | 1 | ||||||
| 8 | 12-F506186 | WASHER, (.340 x .734 x .105) Stainless Steel | 2 | ||||||
| 9 | 23-841940 | BUSHING, Flanged | 1 | ||||||
| 10 | 863077T02 | ALTERNATOR ASSEMBLY, Blue, Service Complete | 1 | ||||||
| 10 | 863077T | 676-9-19111 | 602-20119 | ALTERNATOR ASSEMBLY, Black, Service Complete | 1 | ||||
| 11 | 10-39001 | SCREW, (.312-18 x 4.50) | 1 | ||||||
| 12 | 10-82155025 | SCREW, (M8 x 25 MM) Stainless Steel | 1 | ||||||
| 13 | 85-66659 | BOOT, Insulator - Black | 1 | ||||||
| 14 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 15 | 11-401386 | NUT, (M6) Stainless Steel | 2 | ||||||
| 16 | 43-8183812 | PINION STUD, (.437-20) Stainless Steel | 1 | ||||||
| 17 | 842249004 | BRACKET, Tensioner | 1 | ||||||
| 18 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | |||||
| 19 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 1 | ||||||
| 20 | 807757T | PULLEY ASSEMBLY, Idler - Black | 1 | ||||||
| 21 | 11-859135 | 676-9-78116 | NUT, (.437-20) Brass/Nickel Plated | 1 | |||||
| 22 | 845117 | BUSHING | 1 | ||||||
| 23 | 10-841118 | SCREW, (.437-14 x 5.50) Stainless Steel | 1 | ||||||
| 24 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 25 | 10-87302 | SCREW, (.375-16 x 5.00) Stainless Steel | 1 | ||||||
| 26 | 842480A01 | PULLEY ASSEMBLY, Idler - Blue | 1 | ||||||
| 26 | 8M0050916 | PULLEY ASSEMBLY, Idler - Polished/Clear Coat | 1 | 842480A02 | |||||
| 27 | 30-33451 | BEARING, Ball | 2 | ||||||
| 28 | 53-18917 | RING, Retaining | 1 | ||||||
| 29 | 12-74759 | WASHER, (.391 x .880 x .125) Stainless Steel | 1 | ||||||
| 30 | 10-94247 | 525-10-94247 | SCREW, (.375-16 x .750) Stainless Steel | 1 | |||||
| 31 | 864625T | PULLEY ASSEMBLY, Idler - Black | 1 | 849296T | Non Power Steering Models | ||||
| 32 | 10-82130130 | SCREW, (M10 x 30) | 1 | Non Power Steering Models | |||||
| 33 | 10-841154 | SCREW, (.375-16 x 3.375) | 2 | Non Power Steering Models | |||||
| 34 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | Non Power Steering Models | |||||
| 35 | 849297T1 | BRACKET, Idler Pulley | 1 | Non Power Steering Models | |||||
| 36 | 23-669952 | SPACER, (.410 x 1.00 x .500) Aluminium - Black | 2 | Non Power Steering Models |
