600 SCi - Serial 0M952908 Thru 0M962885 - Electrical Components (Coils)

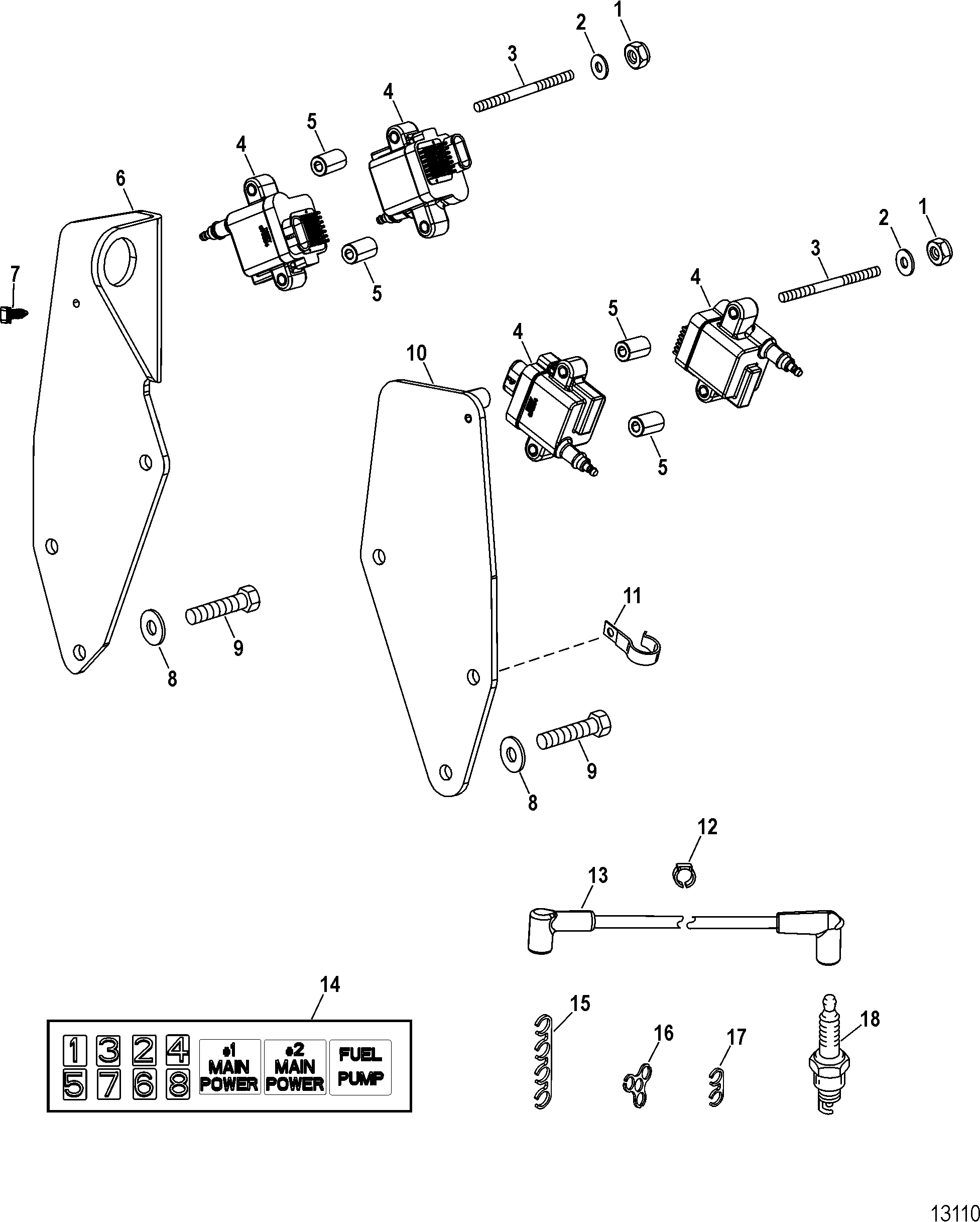

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 11-8267098



NUT, (.250-20) Stainless Steel 8

2 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 8

3 16-848176



STUD, (.250-20 x 4.310) 8

4 300-8M0077471



COIL, Ignition 8 339-879984T00
5 23-842248



SPACER 8

6 842247002



BRACKET, Coil Mount - Starboard 1

7 54-828991T



CLIP 2 54-828991
8 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 6

9 10-99204



SCREW, (.437-14 x 1.00) Stainless Steel 6

10 8M0052326



BRACKET, Coil Mount - Port 1 842246002
11 54-848183



J CLIP 1

12 843137A01



MARKER SET, Ignition Cables, Two Per - Numbers 1 Thru 8 1

13 84-896668A09



CABLE SET, Ignition - Port, Four Blue Cables Per Set 1
SN# 0M952908 THRU 0M955080
13 84-896668A10



CABLE SET, Ignition - Starboard, Four Blue Cables Per Set 1
SN# 0M952908 THRU 0M955080
13 84-899330A09



CABLE SET, Ignition - Port, Four Black Cables Per Set 1
SN# 0M955081 & Up
13 84-899330A10



CABLE SET, Ignition - Starboard, Four Black Cables Per Set 1
SN# 0M955081 & Up
14 37-842968



LABEL SET, Electrical Components 1

15 32784



RETAINER, Four Wire 4

16 32783



RETAINER, Three Wire 2

17 54676



RETAINER, Two Wire 2

18 33-810883



SPARK PLUG 8
5
- 844200A08



PARTIAL ENGINE ASSEMBLY 1
