600 SCi - Serial 0M952908 Thru 0M962885 - Oil Cooler - Oil Filter (0M952908 Thru 0M953904)

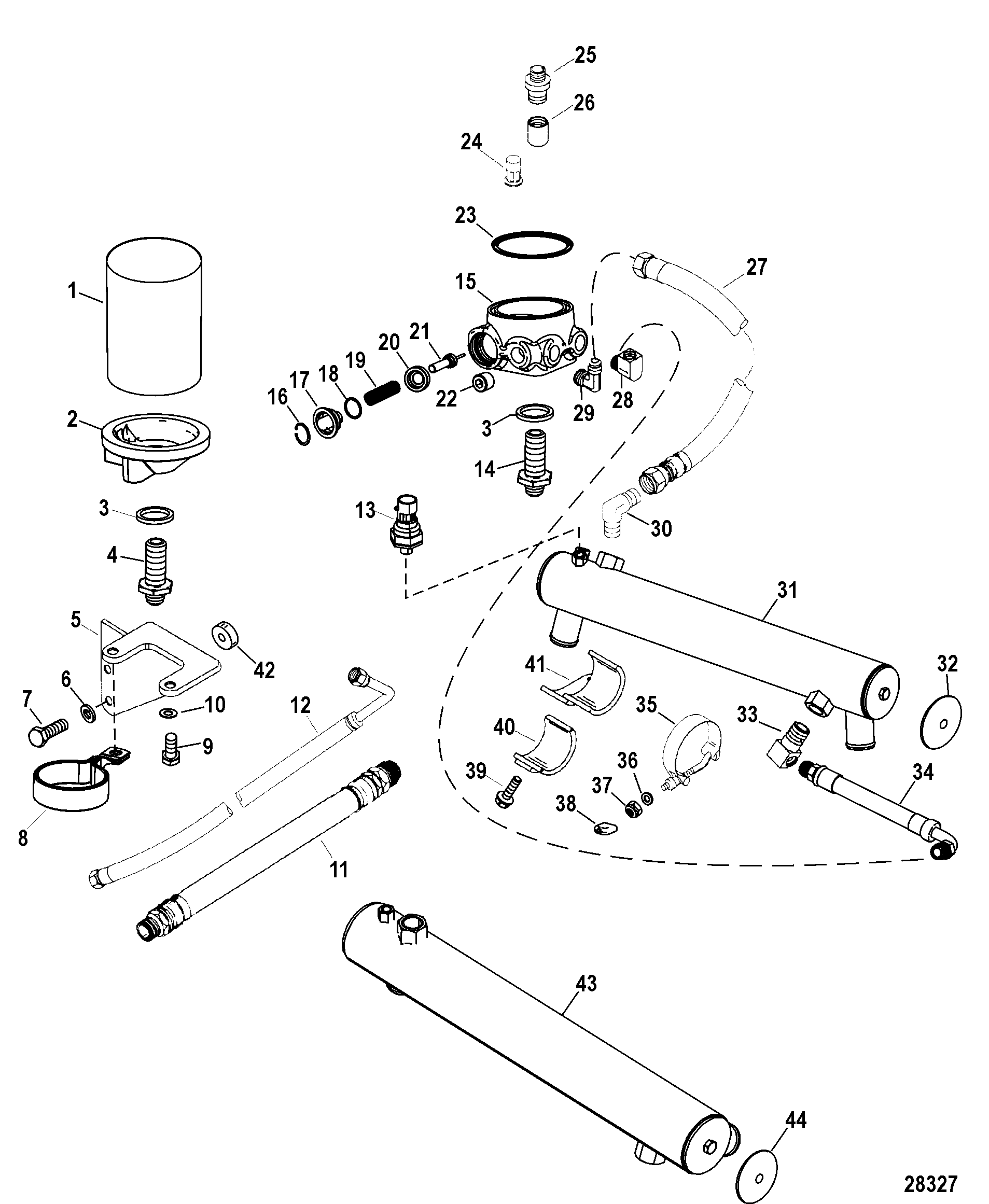

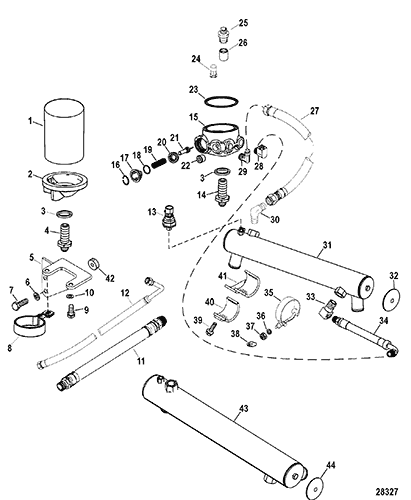

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 35-881126K01 | FILTER, Oil | 1 | 35-16595T1 | 5 | ||||
| 2 | 35-806329T | ADAPTOR, Oil Filter | 1 | ||||||
| 3 | 26-42077 | SEAL | 2 | 2,5 | |||||
| 4 | 22-806328 | FITTING, Oil Filter Adaptor | 1 | ||||||
| 5 | 849907T | BRACKET, Filter Adaptor | 1 | ||||||
| 6 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 7 | 10-35047 | SCREW, (.375-16 x 1.250) Stainless Steel | 2 | ||||||
| 8 | 54-8M0011102 | CLIP, Hose Support | 1 | 54-847747002 | |||||
| 9 | 10-845856 | SCREW, (.312-18 x .750) | 2 | ||||||
| 10 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | |||||
| 11 | 32-849883 | HOSE ASSEMBLY, Oil (31.750 Inches), Adaptor To Filter | 1 | ||||||
| 12 | 32-849876T | HOSE ASSEMBLY, Oil (34.620 Inches), Filter To Adaptor | 1 | ||||||
| 13 | 881879T11 | SENSOR, Pressure (0 - 100 PSI), Water | 1 | 881879011 | |||||
| 14 | 22-806328 | FITTING | 1 | ||||||
| 15 | 849885A04 | HOUSING ASSEMBLY, Oil Thermostat | 1 | ||||||
| 15 | 849885T2 | HOUSING, Oil Thermostat | 1 | ||||||
| 16 | 53-848571 | RING, Retaining | 1 | ||||||
| 17 | 8161651 | COVER, Oil Thermostat | 1 | ||||||
| 18 | 25-864701 | O-RING, (1.112 x .103) | 1 | 2 | |||||
| 19 | 24-816162 | SPRING | 1 | ||||||
| 20 | 849983 | PISTON, Oil Thermostat | 1 | ||||||
| 21 | 8161631 | THERMOSTAT | 1 | ||||||
| 22 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 1 | ||||||
| 23 | 25-32507 | O-RING, (3.359 x .139) | 1 | 2,5 | |||||
| 24 | VALVE, Relief, Oil By Pass - 30 PSI | 1 | 5 | ||||||
| 25 | 22-805632 | CONNECTOR, Oil Filter | 1 | 5 | |||||
| 26 | 22-841870 | CONNECTOR, Oil Thermostat Housing | 1 | ||||||
| 27 | 32-845126T | HOSE ASSEMBLY, Oil (26.50 Inches), Cooler To Adaptor | 1 | ||||||
| 28 | 22-47630 | ELBOW, 90 Degree | 1 | ||||||
| 29 | 22-706811 | ELBOW, 90 Degree | 1 | ||||||
| 30 | 22-706811 | ELBOW, 90 Degree | 1 | ||||||
| 31 | 849952A03 | COOLER ASSEMBLY, Oil | 1 | 849952T01 | Driveline Models | ||||
| 32 | 8M0036570 | GASKET | 2 | 27-842785 | 2 | ||||
| 33 | 22-47630 | ELBOW, 90 Degree | 1 | ||||||
| 34 | 32-842496 | HOSE ASSEMBLY, Oil (9.20 Inches), Adaptor To Cooler | 1 | ||||||
| 35 | 54-844664 | CLAMP, T Bolt Band | 2 | ||||||
| 36 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 37 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 2 | ||||
| 38 | 19-8079923 | COVER, Hose Clamp End - Clamp Stud (.375) | 2 | ||||||
| 39 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 2 | Driveline And Six Drive Models | |||||
| 40 | 845459T | BRACKET, Oil Cooler | 2 | Driveline And Six Drive Models | |||||
| 41 | 849908T | BRACKET, Oil Cooler | 2 | Bravo Models | |||||
| 42 | 23-669952 | SPACER, (.410 x 1.00 x .500) Aluminium - Black | 2 | ||||||
| 43 | 842510T | COOLER ASSEMBLY, Oil | 1 | Six Drive And Bravo Plug In Models | |||||
| 44 | 8M0036570 | GASKET | 2 | 27-842785 | 2 | ||||
| - | 27-843073A05 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | |||||
| - | 844200A08 | PARTIAL ENGINE ASSEMBLY | 1 |
