600 SCi - Serial 0M952908 Thru 0M962885 - Electrical Components (Engine Harness)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)

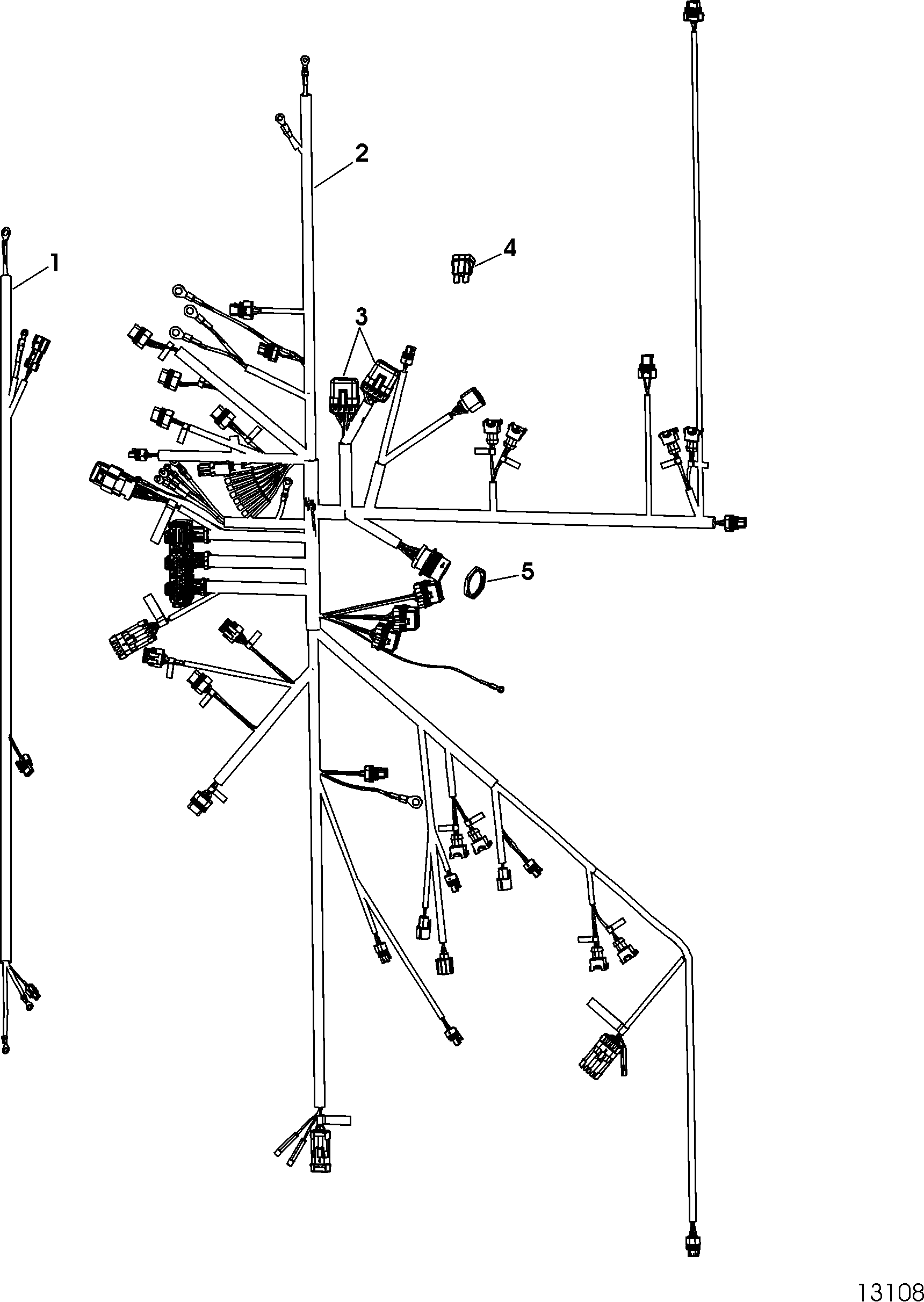

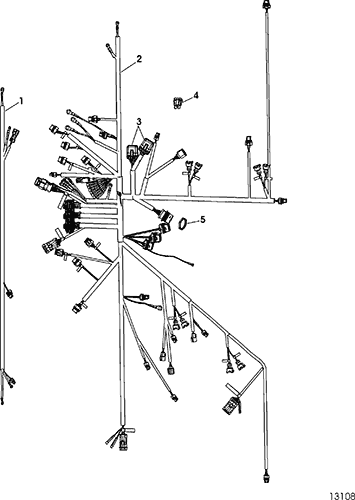

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 84-895341A03 | HARNESS ASSEMBLY, Fuel Pump | 1 | 84-895341A02 | |||||
2 | 8M0050828 | HARNESS ASSEMBLY, Engine | 1 | 84-895008A02 | |||||
3 | 858754 | COVER, Fuse | 2 | ||||||
4 | 88-832969T05 | FUSE, Mini - Tan - 5 Ampere | 2 | 88-8329695 | |||||
4 | 88-83296915 | FUSE, Mini - Blue - 15 Ampere | 2 | ||||||
4 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 88-83296920 | |||||
4 | 88-832969T25 | FUSE, Mini - Clear - 25 Ampere | 1 | 88-83296925 | |||||
5 | 11-889664 | NUT, (1.500-18) Black Nylon | 1 |
