600 SCi - Serial 0M952908 Thru 0M962885 - Electrical Components (Mounting Box)

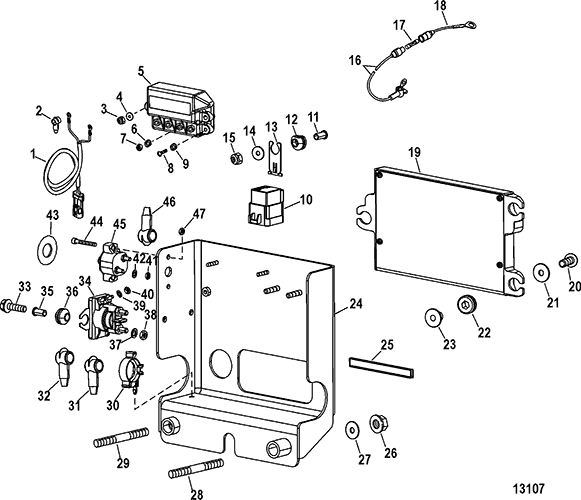

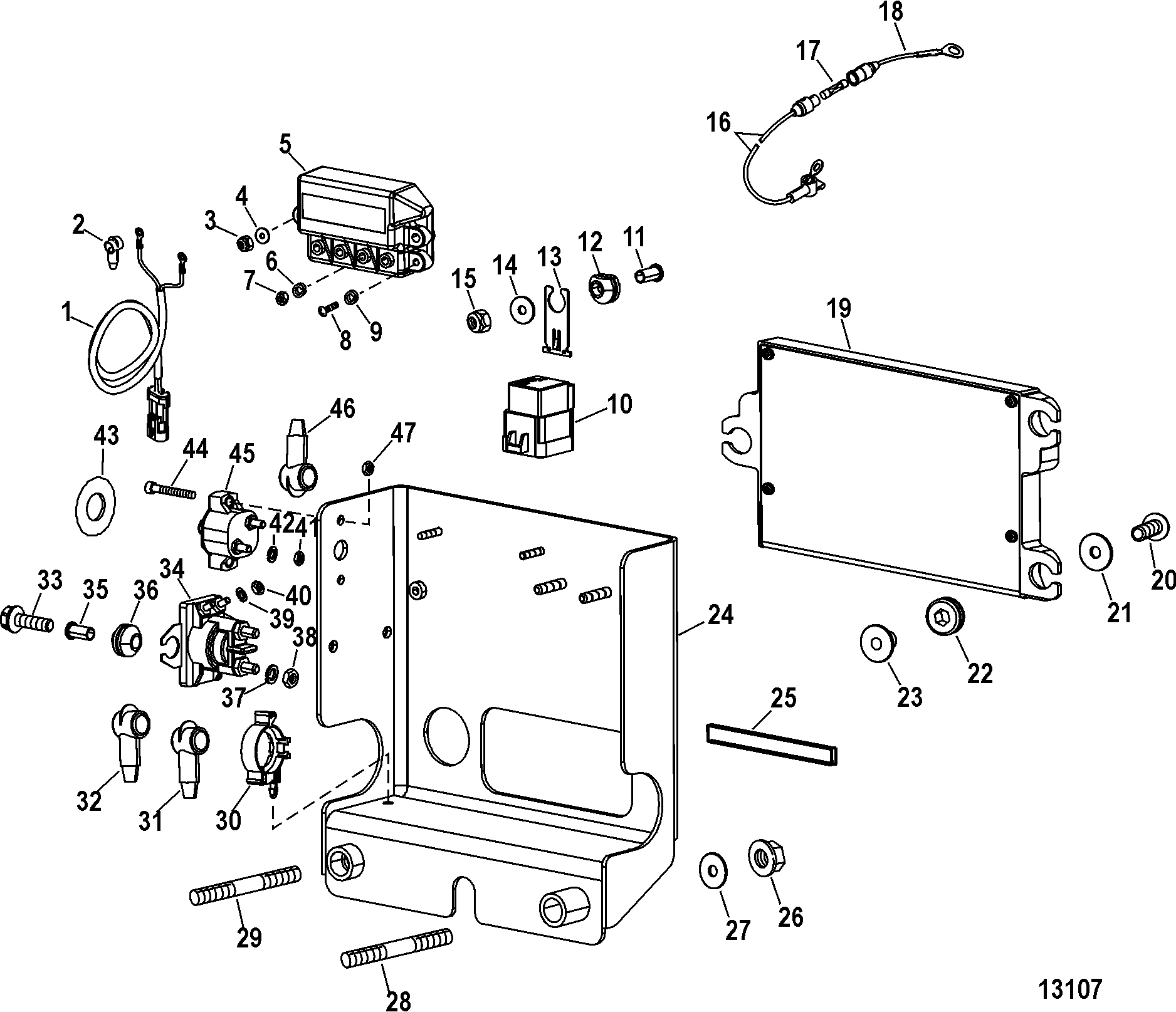

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 84-865181A01



HARNESS ASSEMBLY, Mercathode 1
No longer made, limited availability
2 85-65208



BOOT, Insulator - Black 3

3 11-826709106



NUT, (#10-32) Stainless Steel 2

4 12-30164



WASHER, (.192 x .375 x .0312) Stainless Steel 2

5 42600A09



CONTROLLER ASSEMBLY, Mercathode 1 42600A3
6 13-26996



LOCKWASHER, (#10) Stainless Steel 4

7 11-68219



NUT, (#10-32) Stainless Steel 4

8 10-62568



SCREW, (#10-16 x .375) 1

9 13-26996



LOCKWASHER, (#10) Stainless Steel 1

10 882751A1

700-73040
RELAY ASSEMBLY 3

11 23-818968



BUSHING 3

12 25-818967



GROMMET 3
2
13 828102



BRACKET 3

14 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 3

15 11-8267098



NUT, (.250-20) Stainless Steel 3

16 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip 1

17 88-79091



FUSE, 20 Ampere 1

18 84-95084A10



CABLE ASSEMBLY, (5.00 Inches) Red 1

19 840947T15



PCM, Propulsion Control Module 1 843026003 SN# 0M952908 THRU 0M953064
19 840947T15



PCM, Propulsion Control Module 1 843026004 SN# 0M953065 THRU 0M956235
19 840947T15



PCM, Propulsion Control Module 1 899898T57 SN# 0M956236 THRU 0M959813
19 840947T15



PCM, Propulsion Control Module 1 879270T89 SN# 0M959814 & Up
20 10-828478



SCREW, (.250-20 x 1.00) Stainless Steel 3

21 12-65567



WASHER, (.265 x .750 x .048) Stainless Steel 3

22 25-834985



GROMMET 3

23 23-856954



BUSHING 3

24 842477002



BRACKET, Electrical Mounting 1

25 8M0062940



SEAL, 6 Inches 1

26 11-859135
676-9-78116

NUT, (.437-20) Brass/Nickel Plated 2

27 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 2

28 16-57984



STUD, (.437-14/.437-20 x 2.380) 1

29 16-579203


525-16-579203 STUD, (.437-14/.437-20 x 2.060) 1

30 54-853947



CLIP, Harness Support 2

31 85-880786



BOOT, Insulator - Red 1

32 85-880787



BOOT, Insulator - Yellow 1

33 10-828478



SCREW, (.250-20 x 1.00) Stainless Steel 2

34 89-850187T1

700-72401
SOLENOID ASSEMBLY 1

35 23-818968



BUSHING 2

36 25-818967



GROMMET 2

37 13-26992



LOCKWASHER, (.250) Stainless Steel 2

38 11-94330



NUT, (.250-20) Brass 2

39 13-26995



LOCKWASHER, (#8) Stainless Steel 2

40 11-26419



NUT, (#8-32) Brass 2

41 11-68219



NUT, (#10-32) Stainless Steel 2

42 13-26996



LOCKWASHER, (#10) Stainless Steel 2

43 37-72554



DECAL, Circuit Breaker 1

44 10-96113



SCREW, (#10-32 x .880) Stainless Steel 2

45 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-11178 This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
46 85-880786



BOOT, Insulator - Red 2

47 11-61356



NUT, (#10-32) Reduced Hex 2

- 27-843073A05



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
