600 SCi - Serial 0M952908 Thru 0M962885 - Driveshaft And Tailstock (Driveline)

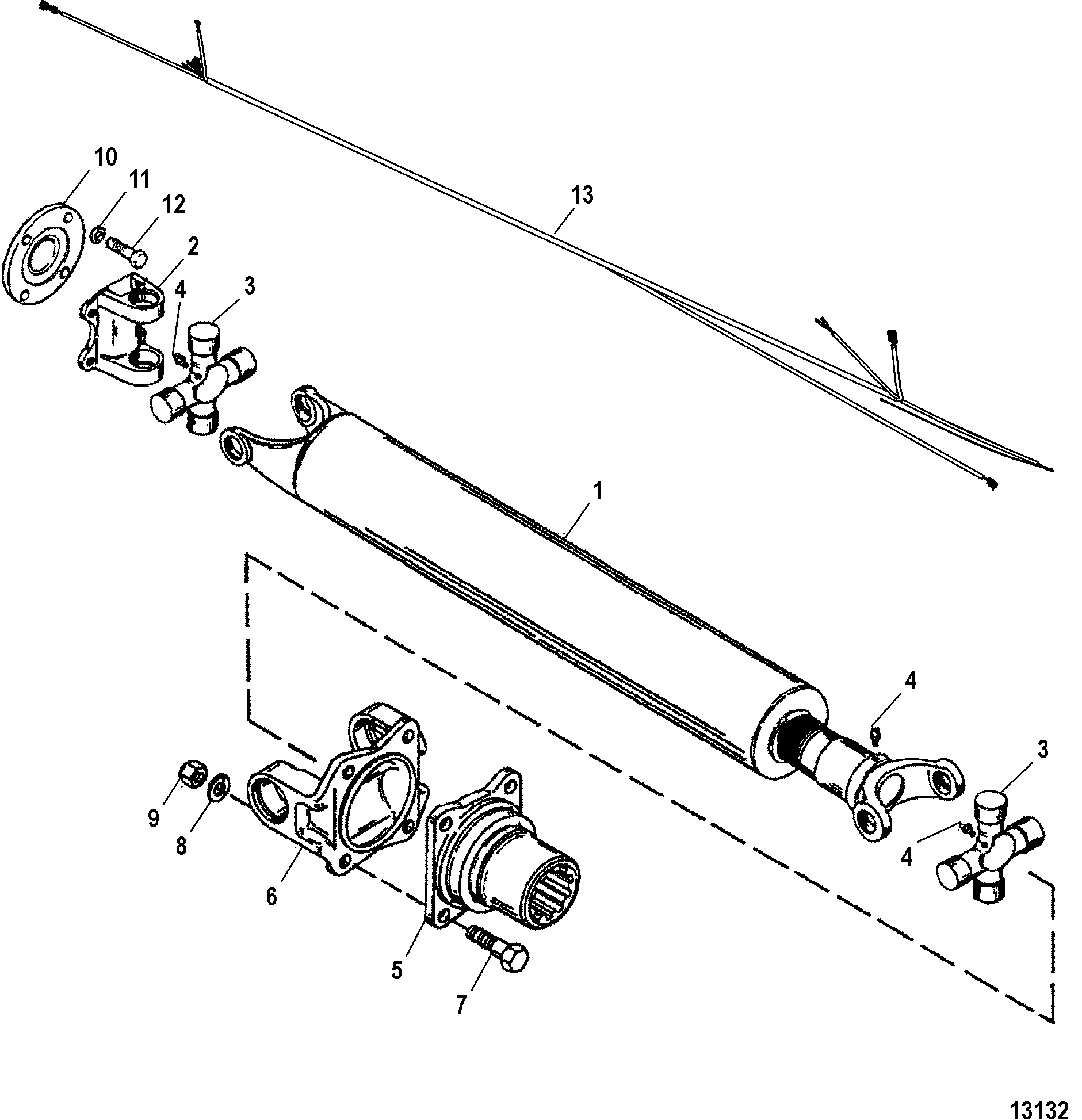

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 45-86978A3 | DRIVESHAFT ASSEMBLY, (36.940 Inches) | 1 | ||||||
| 2 | 61218 | FLANGE, Driveshaft | 1 | ||||||
| 3 | 61221T | CROSS AND BEARING, With Clips | 2 | ||||||
| 4 | 22-74036 | FITTING, Grease | 2 | ||||||
| 5 | 96276T4 | FLANGE/YOKE ASSEMBLY | 1 | ||||||
| 6 | 61218 | FLANGE, Driveshaft | 1 | ||||||
| 7 | 10-68743 | SCREW, (.437-20 x 1.250) | 4 | This Part is No Longer Available | |||||
| 7 | 10-840249 | SCREW, (.437-20 x 1.380) | OPT | ||||||
| 8 | 13-47659 | LOCKWASHER, (.437) | 4 | ||||||
| 9 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 4 | |||||
| 10 | 847759 | ADAPTOR, Flange Yoke To Drive | 1 | ||||||
| 11 | 11-82670815 | NUT, (.437-20) | 4 | ||||||
| 12 | 10-805159 | SCREW, (.437-20 x 1.500) | 4 | ||||||
| 13 | 84-897520T01 | HARNESS ASSEMBLY, Extension | 1 |
