600 SCi - Serial 0M952908 Thru 0M962885 - Engine Components (Cylinder Head)

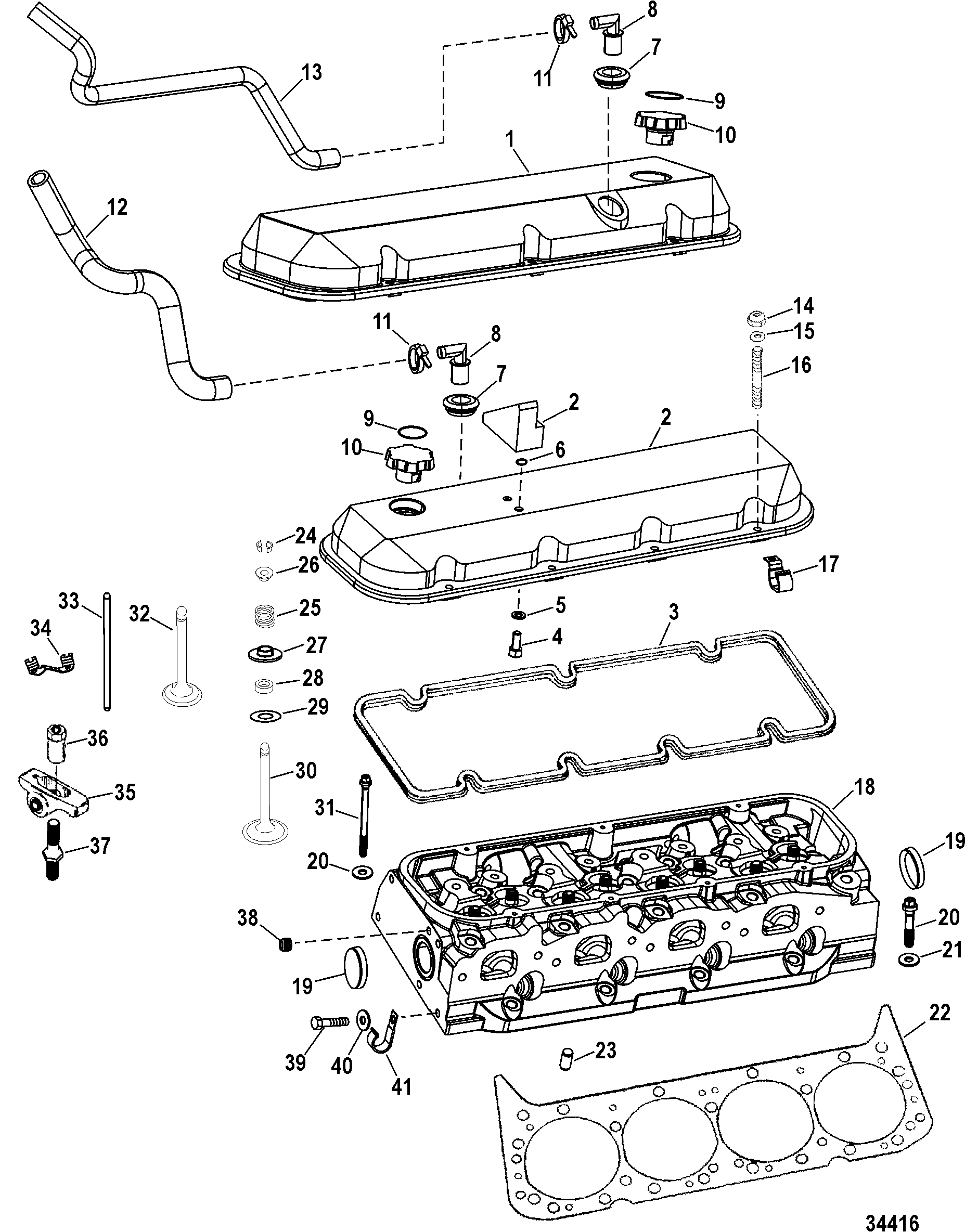

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0050913 | COVER ASSEMBLY, Rocker Valve - Blue, Port | 1 | 845708A7 | NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number | ||||
| 2 | 8M0052328 | COVER ASSEMBLY, Rocker Valve - Blue, Starboard | 1 | 845708A9 | NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number | ||||
| 3 | 27-811588 | GASKET, Rocker Cover | 2 | 2 | |||||
| 4 | 10-39349 | SCREW, (.312-18 x .750) Stainless Steel | 2 | ||||||
| 5 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | ||||||
| 6 | 25-26802 | O-RING, (.424 x .103) | 2 | 2 | |||||
| 7 | 25-811553 | GROMMET | 2 | 2,5 | |||||
| 8 | 97850T | ELBOW, 90 Degree, Breather | 2 | 97850 | |||||
| 9 | 37-849950 | DECAL, Oil Fill Cap | 2 | 5 | |||||
| 10 | 845753T1 | CAP | 2 | 5 | |||||
| 11 | 54-816311T | 700-21465 | TIE STRAP, (8.00 Inches) | 2 | |||||
| 12 | 32-843925 | HOSE, Molded, To Starboard Breather Elbow | 1 | SN# 0M952908 THRU 0M955080 | |||||
| 12 | 32-8M0001452 | HOSE, Molded, To Starboard Breather Elbow | 1 | SN# 0M955081 & Up | |||||
| 13 | 32-843924 | HOSE, Molded, To Port Breather Elbow | 1 | SN# 0M952908 THRU 0M955080 | |||||
| 13 | 32-8M0001451 | HOSE, Molded, To Port Breather Elbow | 1 | SN# 0M955081 & Up | |||||
| 14 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 14 | 5 | |||
| 15 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 14 | 5 | |||||
| 16 | 16-56766 | STUD, (.250-20/.250-28 x 1.380) | 14 | 5 | |||||
| 17 | 54-15095 | J CLIP | 1 | 5 | |||||
| 18 | 900-843944A04 | CYLINDER HEAD ASSEMBLY, Starboard | 1 | 5 | |||||
| 18 | 900-843944A05 | CYLINDER HEAD ASSEMBLY, Port | 1 | 5 | |||||
| 19 | 19-47463 | EXPANSION PLUG | 2 | 5 | |||||
| 20 | 10-8M0000463 | SCREW, (.438-14 x 2.060) | 8 | 10-843917 | 5 | ||||
| 21 | 12-841990 | WASHER, Special - Black | 32 | 5 | |||||
| 22 | 27-811546A04 | GASKET KIT, Cylinder Head | 2 | 27-811546A03 | 2,5 | ||||
| 23 | 17-843931 | PIN, Dowel, Cylinder Head | 4 | 5 | |||||
| 24 | 8M0042989 | LOCK, Valve Stem | 32 | 843140 | 5 | ||||
| 25 | 24-843081A01 | SPRING/RETAINER KIT, (16 Per Kit) | 1 | 5 | |||||
| 26 | NSS | NOT SOLD SEPARATE, Retainer | 1 | This Part is not sold separately 5 | |||||
| 27 | 840678 | SEAT, Spring | 16 | 5 | |||||
| 28 | 26-842755 | SEAL, Valve, Intake And Exhaust | 16 | 2,5 | |||||
| 29 | 15-845669 | SHIM, Valve Spring (.015) | AR | 5 | |||||
| 29 | 15-77624 | SHIM, Valve Spring (.030) | AR | 5 | |||||
| 29 | 15-77625 | SHIM, Valve Spring (.060) | AR | 5 | |||||
| 30 | 843080 | VALVE, Exhaust | 8 | 5 | |||||
| 31 | 10-8M0000482 | SCREW, (.438-14 x 4.060) | 14 | 10-843918 | 5 | ||||
| 31 | 10-8M0000467 | SCREW, (.438-14 x 5.120) | 10 | 10-843919 | 5 | ||||
| 32 | 821024T | VALVE, Intake, Standard - 2.250 Diameter | 8 | 5 | |||||
| 33 | 848262 | PUSH ROD, (7.550) | 8 | Intake 5 | |||||
| 33 | 848264 | PUSH ROD, (8.550) | 8 | Exhaust 5 | |||||
| 34 | 840942 | GUIDE, Pushrod | 8 | 5 | |||||
| 35 | 845618T | ROCKER ARM ASSEMBLY | 16 | 5 | |||||
| 36 | 11-848610 | NUT, Rocker Arm Valve | 16 | 5 | |||||
| 37 | 95820 | STUD, Rocker Arm Valve | 8 | Intake 5 | |||||
| 37 | 16-843129 | STUD, Rocker Arm Valve | 8 | Exhaust 5 | |||||
| 38 | 10-848081 | SET SCREW, (.437-14 x .500) Black | 1 | 5 | |||||
| 39 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 1 | ||||||
| 40 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 1 | ||||||
| 41 | 54-843142 | J CLIP | 1 | ||||||
| - | 27-843073A05 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | |||||
| - | 844200A08 | PARTIAL ENGINE ASSEMBLY | 1 |
