225 SPORT XS - Serial 1E002584 and Up - Accessories

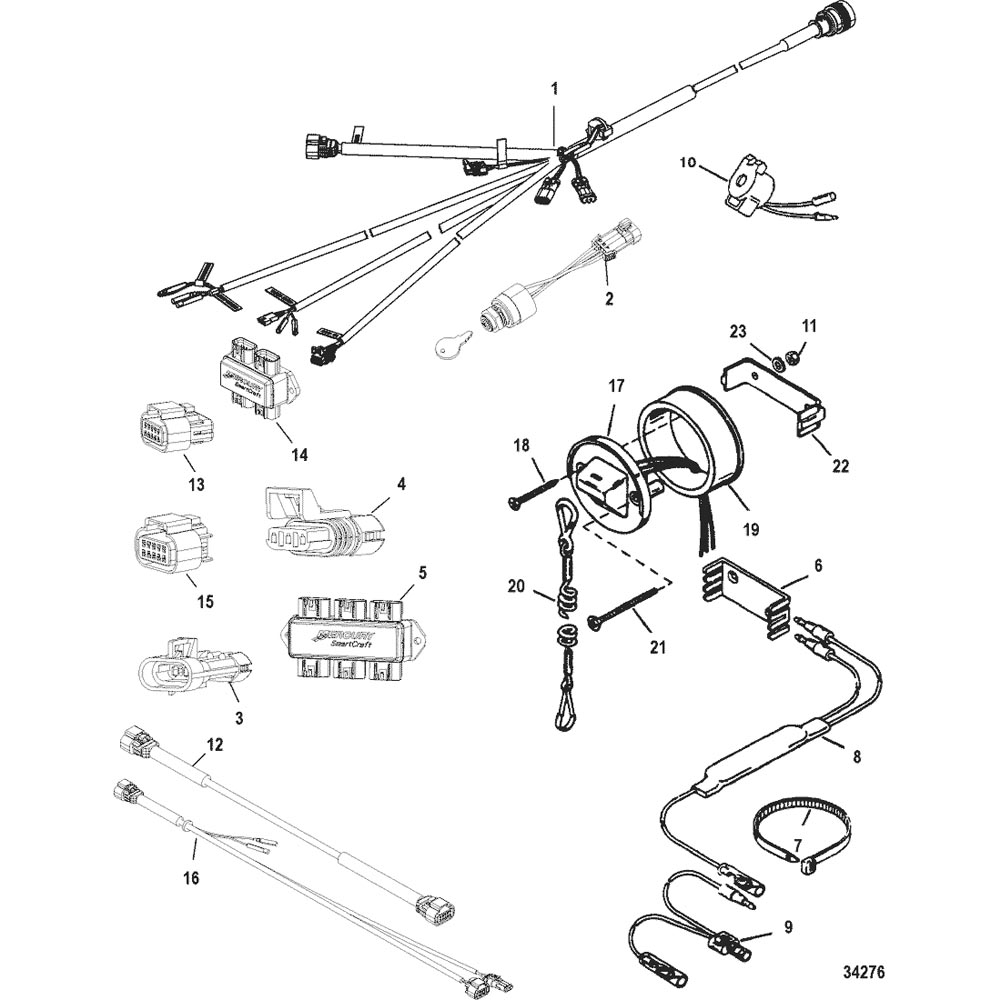

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and above
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing, Drive Shaft (Sport Master)
- Gear Housing, Drive Shaft (Torque Master)
- Gear Housing, Propeller Shaft (Sport Master)
- Gear Housing, Propeller Shaft (Torque Master)
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-896537T20 | HARNESS ASSEMBLY, (20 Feet) Key - Choke - Horn | 1 | ||||||
| 2 | 87-897716K01 | SWITCH KIT, Ignition (3 Position) With Keys | 1 | ||||||
| 3 | 881176A1 | CAP ASSEMBLY, 3 Position-Male Connector | 1 | ||||||
| 4 | 881175A1 | CAP ASSEMBLY, 3 Position-Female Connector | 1 | ||||||
| 5 | 878492T16 | JUNCTION BOX, 6 Way | 1 | ||||||
| 6 | 79146 | RETAINER | 3 | ||||||
| 7 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 8 | 812497A2 | DIODE ASSEMBLY | 1 | No Longer Available | |||||
| 9 | 84-11149A2 | CABLE ASSEMBLY, (6.00 Inches) | 1 | ||||||
| 10 | 8M0089727 | ALARM | 1 | 816492A2 | |||||
| - | 894911 | KEY, Ignition (1A) | 1 | ||||||
| - | 894912 | KEY, Ignition (1B) | 1 | ||||||
| - | 894913 | KEY, Ignition (1C) | 1 | ||||||
| - | 894914 | KEY, Ignition (1D) | 1 | ||||||
| - | 894915 | KEY, Ignition (1E) | 1 | ||||||
| - | 894916 | KEY, Ignition (1F) | 1 | ||||||
| - | 894917 | KEY, Ignition (2A) | 1 | ||||||
| - | 894918 | KEY, Ignition (2B) | 1 | ||||||
| - | 894919 | KEY, Ignition (2C) | 1 | ||||||
| - | 8949110 | KEY, Ignition (2D) | 1 | ||||||
| - | 8949111 | KEY, Ignition (2E) | 1 | ||||||
| - | 8949112 | KEY, Ignition (2F) | 1 | ||||||
| 11 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 12 | 84-879981T20 | HARNESS ASSEMBLY, (SC1000R-20) | 1 | ||||||
| 13 | 859318T1 | TERMINATOR, 10 Pin (CAN 1 and 2) | 1 | ||||||
| 14 | 878492T14 | JUNCTION BOX, 4 Way | 1 | ||||||
| 15 | 859318T2 | CAP, Weather - 10 Pin | 1 | ||||||
| 16 | 84-879979T11 | HARNESS ASSEMBLY, Tachometer (SC1000-3) | 1 | 879979T1 | |||||
| 17 | 87-19674A1 | SWITCH ASSEMBLY, Lanyard | 1 | No Longer Available | |||||
| 18 | 10-18303 | SCREW, (.190-16 x 1.750) Stainless Steel | 2 | ||||||
| 19 | 813679 | ADAPTER | 1 | ||||||
| 20 | 15920Q54 | LANYARD ASSEMBLY | 1 | No Longer Available | |||||
| 21 | 10-32866 | SCREW, (#10-32 x 2.00) Stainless Steel | 2 | ||||||
| 22 | 18321 | CLAMP, Mounting | 1 | ||||||
| 23 | 12-24676 | WASHER, (.200 x .440 x .032) | 2 | ||||||
| - | 84-879968T10 | HARNESS ASSEMBLY, (SC1000-10) | 1 | ||||||
| - | 79-879896K21 | SYSTEM MONITOR KIT, SC1000 - Front Mount | 1 | 879896K11 |
